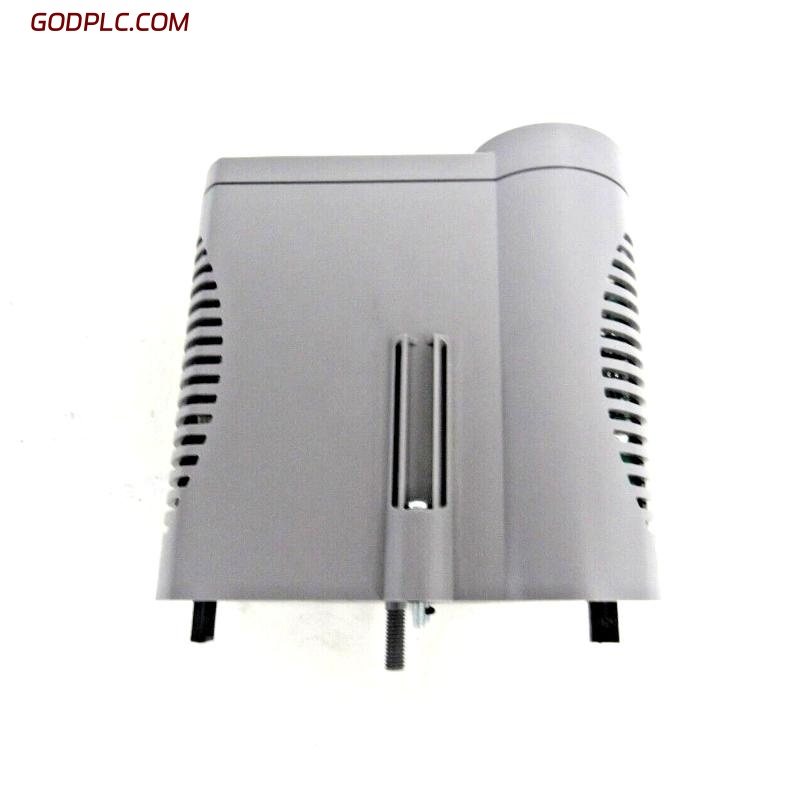

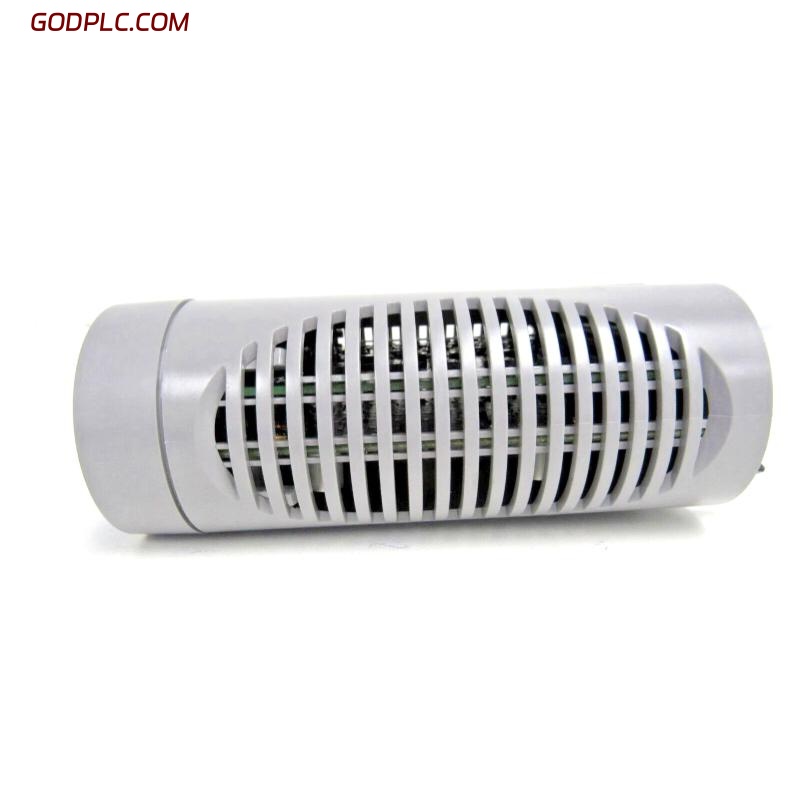

Honeywell CC-PAOH01 51405039-175 Analog Output Module

Product Overview
The Honeywell CC-PAOH01 51405039-175 Analog Output Module is a high-performance module designed for the precise control and output of analog signals in industrial automation systems. As part of Honeywell’s Experion Process Knowledge System (PKS) and compatible with the TDC 3000 system architecture, this module supports a wide range of industrial applications. It offers multiple analog output channels with a high degree of precision, ideal for controlling process variables such as pressure, temperature, and flow. With integrated diagnostics and advanced communication capabilities, the CC-PAOH01 ensures reliable and efficient signal management, supporting mission-critical control applications.

Key Features

• Multiple Analog Outputs – Supports up to 8 isolated analog output channels for versatile signal control across a wide range of process applications

• High Precision – 16-bit resolution ensures accurate and reliable output control for critical process variables

• Integrated Diagnostics – Real-time LED fault indicators for quick detection of faults or communication issues

• Wide Output Range – Capable of delivering output signals ranging from 4–20 mA to 0–10 VDC, suitable for a variety of industrial control systems

• Hot-Swappable – Facilitates easy module replacement without system shutdown, minimizing downtime and enhancing system reliability

• HART Support – Supports HART pass-through, enabling communication with HART-enabled field devices

• Robust Isolation – Ensures channel-to-channel and channel-to-system isolation, preventing signal interference and enhancing signal integrity

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Petrochemical Plants – Ensures precise control of process variables such as flow and pressure, enhancing the efficiency of refining operations

• Power Generation – Monitors and controls outputs in turbine, boiler, and generator control systems for consistent performance

• Water Treatment – Enables reliable signal control in water treatment facilities, ensuring accurate management of critical processes

• Food and Beverage – Supports high-accuracy control systems in food production lines, maintaining consistent product quality and compliance

• Pharmaceutical Manufacturing – Ensures critical process conditions are met for compliance and validation, supporting regulatory requirements in pharmaceutical production

The Honeywell CC-PAOH01 51405039-175 Analog Output Module provides precise and reliable analog signal output, supporting efficient control in a wide range of industrial applications. Its flexible signal output options, integrated diagnostics, and seamless integration with Honeywell’s control systems make it an ideal choice for modern automation environments.
