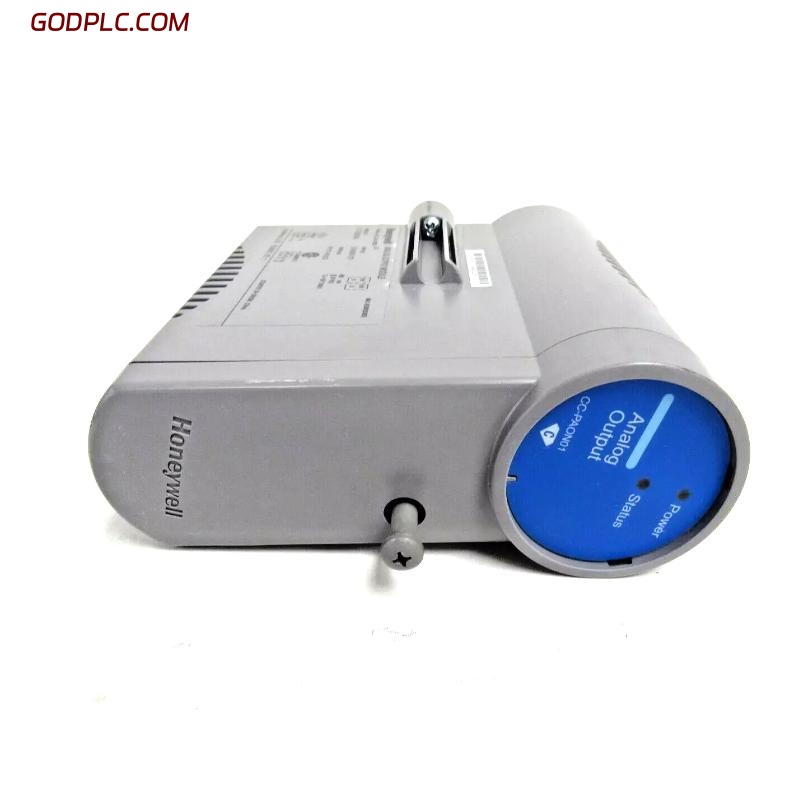

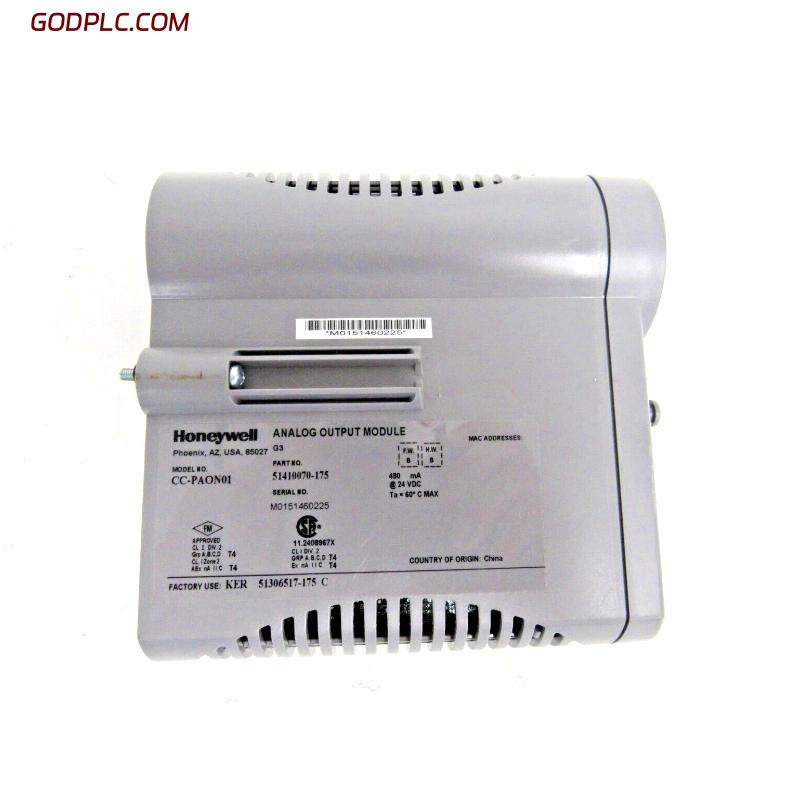

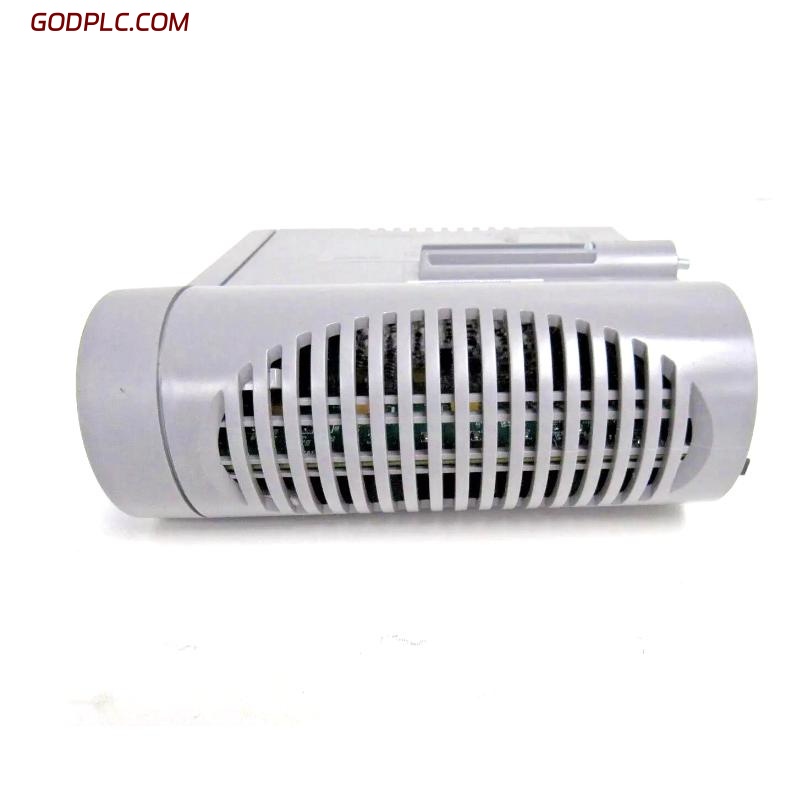

Honeywell CC-PAON01 51410070-175 Analog Output Module
Product Overview
The Honeywell CC-PAON01 51410070-175 Analog Output Module is designed for high-precision output control in industrial process automation systems. Compatible with Honeywell’s Experion Process Knowledge System (PKS) and the TDC 3000 system architecture, this module is capable of providing up to 8 isolated analog outputs, ideal for controlling variables such as pressure, temperature, flow, and more. With its exceptional 16-bit resolution and robust diagnostics, the CC-PAON01 module ensures accurate and reliable control over the most critical processes, reducing downtime and improving operational efficiency.
Key Features
-
Multiple Analog Outputs – Supports up to 8 isolated analog output channels for flexible control in a variety of process control applications
-
High Resolution – 16-bit resolution for precise output control, ensuring accurate regulation of process variables
-
Integrated Diagnostics – Real-time LED indicators for fault detection, enabling proactive maintenance and minimizing system disruptions
-
Wide Output Range – Compatible with output signals ranging from 4–20 mA to 0–10 VDC, providing flexibility for diverse system requirements
-
Hot-Swappable – Allows easy module replacement without system downtime, supporting continuous operations
-
HART Compatibility – Supports HART pass-through for communication with HART-enabled field devices, enhancing system integration and diagnostics
-
Enhanced Isolation – Provides channel-to-channel and channel-to-system isolation, preventing signal interference and ensuring data integrity
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 x 60 x 20 mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Channels | 8 isolated analog output channels |
| Output Signal Types | 4–20 mA, 0–20 mA, 0–10 VDC |
| Resolution | 16-bit DAC |
| Output Isolation | Channel-to-channel and system isolation |
| Power Supply | 24 VDC nominal |
| HART Support | Enabled for HART pass-through |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP65 |
| Shock/Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Honeywell Experion PKS / TDC 3000 |
| Module Type | Analog Output Module |
| Communication | ControlNet, I/O Link, or FTE-based IOTA |
Industry Applications
-
Oil and Gas – Ideal for controlling flow, pressure, and temperature in pipelines, refineries, and wellhead control systems
-
Power Generation – Used for precise control of turbine and generator outputs, ensuring optimal performance and reliability
-
Water Treatment – Monitors and controls key variables such as water flow and chemical dosage in water and wastewater treatment plants
-
Food and Beverage – Ensures consistent control over production processes, supporting quality control and regulatory compliance
-
Pharmaceutical Manufacturing – Vital for maintaining precise process conditions necessary for batch production and compliance with industry regulations
The Honeywell CC-PAON01 51410070-175 Analog Output Module delivers exceptional precision and reliability for analog signal output in a wide range of industrial control applications. Its flexible output configurations, integrated diagnostics, and seamless integration with Honeywell’s control systems make it an ideal choice for process control and automation environments.
Honeywell CC-PAON01 51410070-175 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
