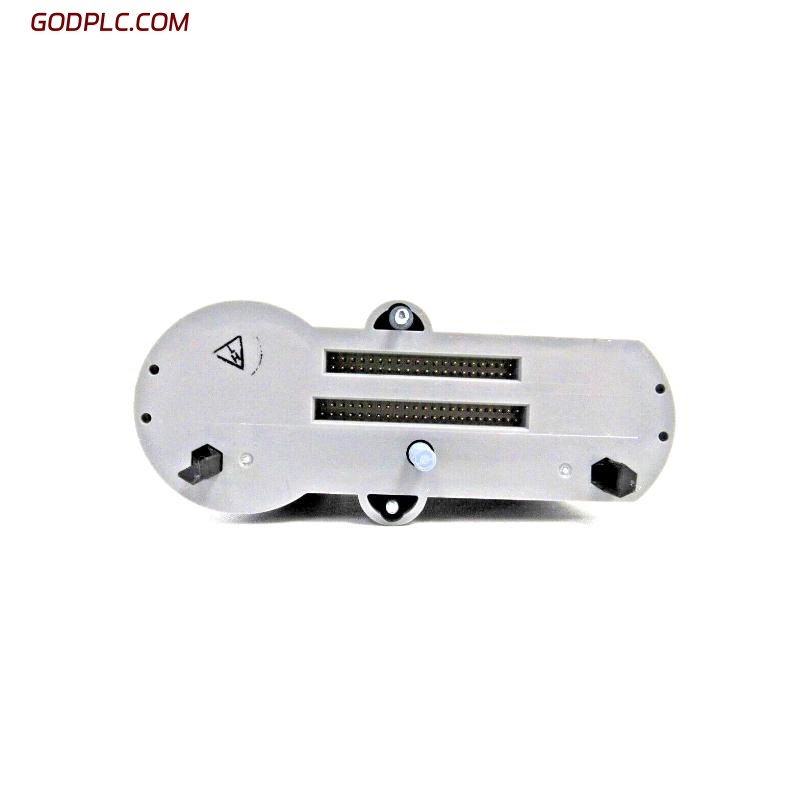

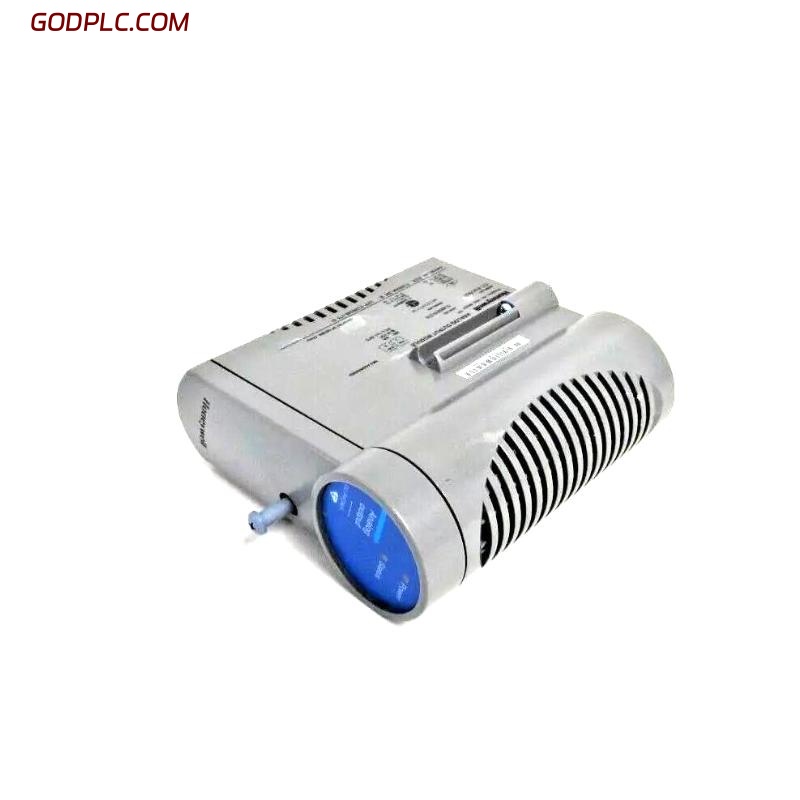

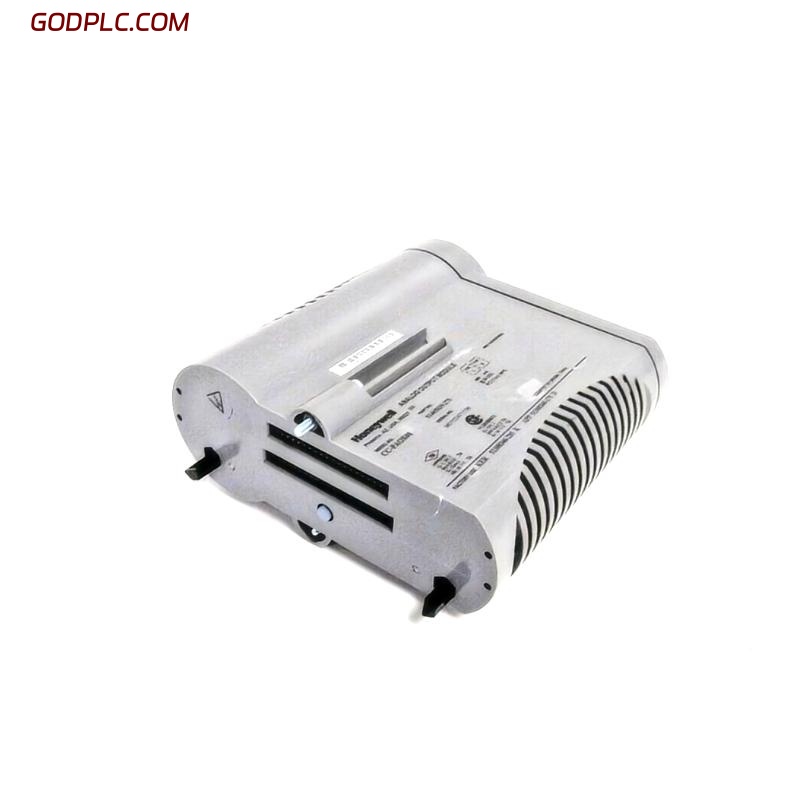

Honeywell CC-PAOX01 51405039-275 Analog Output Module

Product Overview
The Honeywell CC-PAOX01 51405039-275 Analog Output Module is a high-performance module designed to provide reliable and precise analog signal output for a variety of industrial automation systems. Compatible with Honeywell’s Experion Process Knowledge System (PKS) and the TDC 3000 system architecture, the CC-PAOX01 module supports up to 8 isolated output channels. This module is ideal for controlling critical process variables such as temperature, pressure, flow, and level in industrial environments. With a high-resolution 16-bit DAC and advanced diagnostics, it ensures consistent, high-quality output signal management for mission-critical applications.

Key Features

• Multiple Analog Outputs – Supports up to 8 isolated analog output channels for flexible and scalable process control

• High Precision – 16-bit digital-to-analog conversion for accurate and reliable output signal control

• Integrated Diagnostics – Provides real-time LED fault indicators for proactive detection and quick troubleshooting of issues

• Wide Output Range – Supports output signal types including 4–20 mA, 0–20 mA, and 0–10 VDC, making it suitable for a broad range of control systems

• Hot-Swappable – Can be replaced without system shutdown, minimizing downtime and improving operational uptime

• HART Support – Compatible with HART-enabled devices for enhanced communication and diagnostics

• Isolated Output Channels – Ensures channel-to-channel and channel-to-system isolation, protecting against interference and ensuring signal integrity

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Chemical Processing – Ensures accurate control of process variables such as flow, pressure, and temperature in chemical plants, supporting safe and efficient operations

• Power Generation – Provides precise control for critical components like turbines, boilers, and generators, ensuring optimal performance in power plants

• Water and Wastewater Treatment – Monitors and controls key water treatment processes such as flow rate and chemical dosing, ensuring regulatory compliance and operational efficiency

• Food and Beverage – Supports high-precision control for production lines, ensuring consistent product quality and reducing waste

• Pharmaceutical Manufacturing – Helps maintain precise process conditions essential for batch production and ensures compliance with industry regulations

The Honeywell CC-PAOX01 51405039-275 Analog Output Module offers reliable and high-precision analog output capabilities for a wide range of industrial applications. Its flexible output signal types, robust diagnostics, and seamless integration with Honeywell’s control systems make it an essential component for maintaining efficient and accurate process control.
