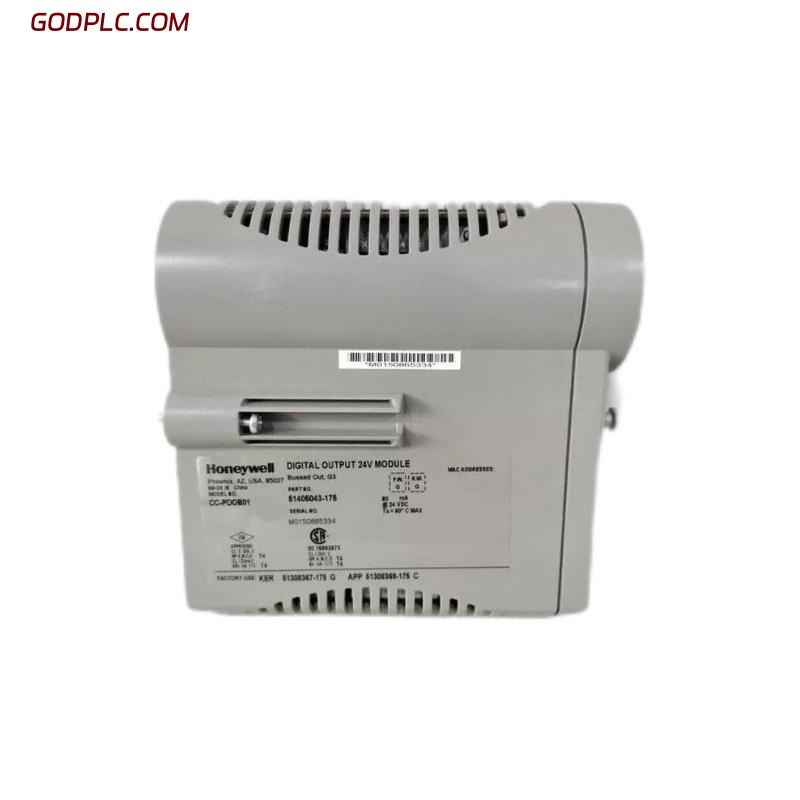

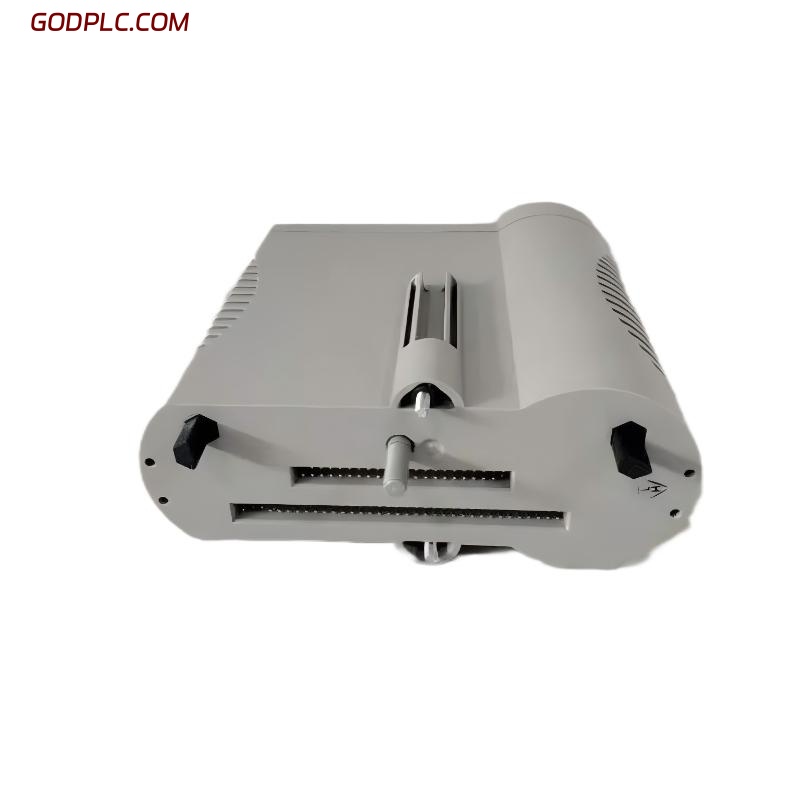

Honeywell CC-PDOB01 51405043-175 Digital Output Modules
Product Overview
The Honeywell CC-PDOB01 51405043-175 Digital Output Module is designed to provide high-performance digital output functionality for Honeywell’s control systems. It enables the efficient transmission of control signals to field devices, actuators, and other components in industrial automation systems. This module supports both discrete and digital control signals, ensuring smooth and reliable operation of critical processes. With its robust construction and reliable performance, the CC-PDOB01 module is suitable for demanding industrial environments, including manufacturing, energy, and process control applications.
Key Features
-
Precise Control – Offers high-accuracy digital output for controlling actuators, alarms, and other field devices
-
Wide Compatibility – Fully compatible with Honeywell control systems, ensuring seamless integration and easy configuration
-
Durable Construction – Designed to withstand harsh environmental conditions, including temperature extremes and vibration
-
High Reliability – Provides stable and reliable output signals, ensuring consistent performance in critical applications
-
Efficient Signal Processing – Supports high-speed signal transmission for fast and accurate control responses
-
Modular Design – Easily integrates with Honeywell’s Distributed Control Systems (DCS) for flexible and scalable system configurations
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.231 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC nominal |
| Output Signal | 0 to 24 VDC (digital) |
| Maximum Current | 0.5 A per channel |
| Power Consumption | Approx. 7 W |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Compatibility | Compatible with Honeywell DCS and PLC systems |
| Integration | Supports integration with other Honeywell I/O modules |
Industry Applications
-
Process Control – Provides reliable digital control for field devices and actuators in process industries
-
Manufacturing Automation – Enables precise control of manufacturing processes and equipment
-
Energy & Utilities – Used in energy control systems for reliable operation and performance monitoring
-
Building Management Systems – Supports control of HVAC, lighting, and other building automation systems
-
Oil & Gas – Enhances the automation and control of critical machinery and equipment in the oil and gas sector
The Honeywell CC-PDOB01 51405043-175 Digital Output Module offers reliable and high-performance digital control capabilities, making it an ideal solution for demanding industrial applications that require precise and stable output for field devices and actuators.
