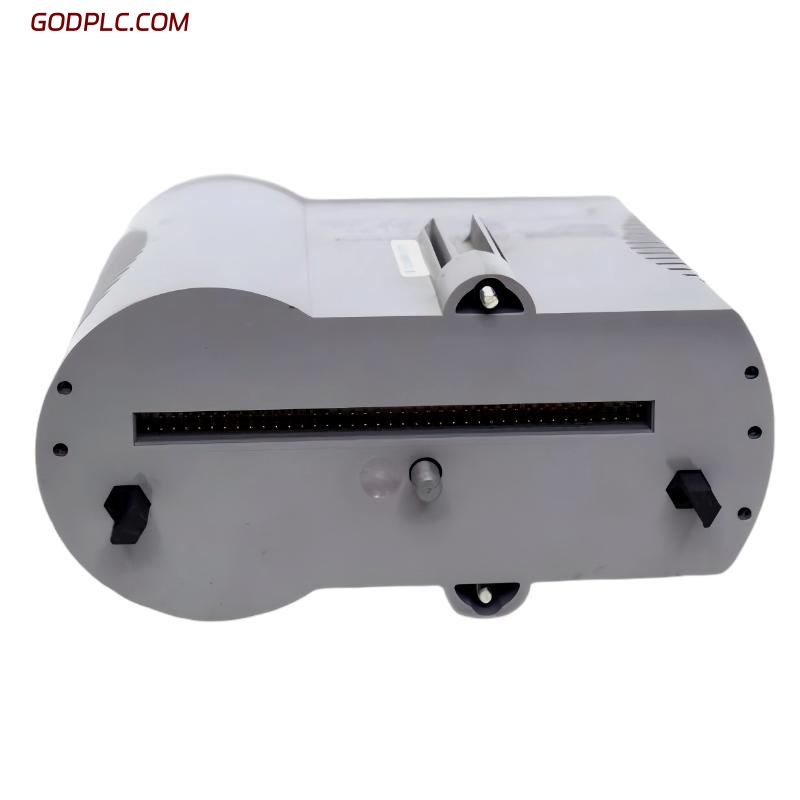

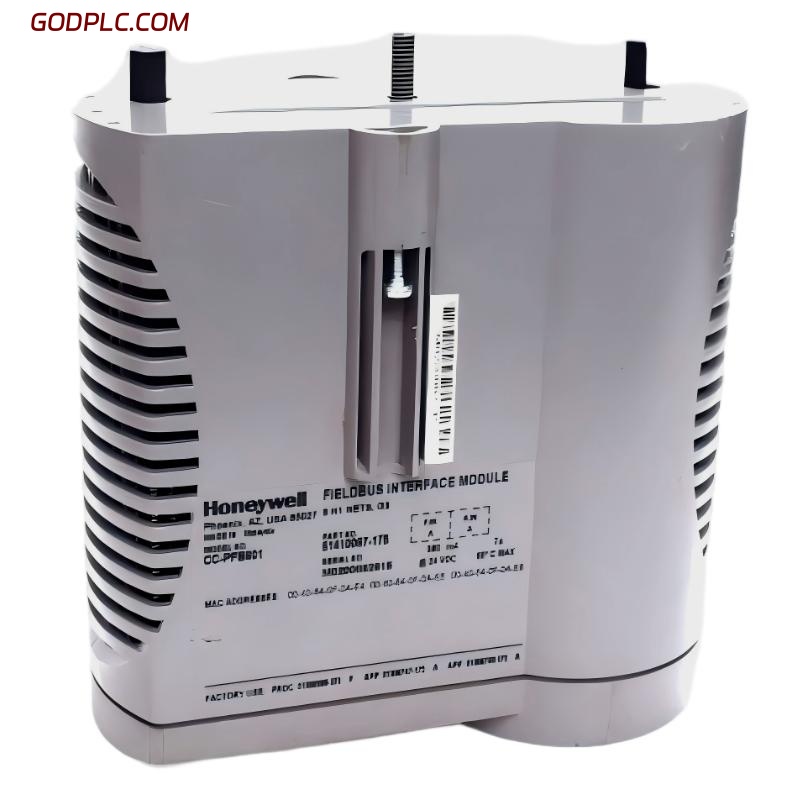

Honeywell CC-PFB801 51410087-176 Fieldbus Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Name | Fieldbus Interface Module |
| Model | CC-PFB801 |
| Part Number | 51410087-176 |
| Module Type | FOUNDATION Fieldbus interface module |
| Supported Protocol | FOUNDATION™ Fieldbus H1 |
| Communication Speed | 31.25 kbps (H1 standard) |
| Fieldbus Segments | Supports multiple configurable segments |
| Bus Power Capability | Fieldbus segment power support (configuration dependent) |
| Power Supply | 24 V DC (via system backplane) |
| Electrical Isolation | Bus-to-system isolation |
| Diagnostics | Segment diagnostics and device status monitoring |
| Redundancy | Supports redundant system configuration |
| Application | Integration of field devices into DCS architecture |
| Mounting | Rack-mounted installation |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 63.5 × 124.46 × 307.34 mm |
| Weight | 0.3 kg |
FAQ
Q1: What is the primary purpose of the CC-PFB801 (51410087-176) module?
A1: It provides communication between FOUNDATION Fieldbus devices and the control system.
Q2: Which fieldbus standard is supported?
A2: It supports the FOUNDATION Fieldbus H1 protocol at 31.25 kbps.
Q3: Can the module be used in redundant systems?
A3: Yes, it supports redundant configurations to enhance system availability.
Q4: Does it provide electrical isolation?
A4: Yes, it includes electrical isolation between the fieldbus segment and the control system.
Q5: What types of field devices can be connected?
A5: Compatible devices include transmitters, valve positioners, analyzers, and other FOUNDATION Fieldbus instruments.
Q6: What diagnostic features are available?
A6: It provides communication status monitoring, segment diagnostics, and fault detection.
Q7: How is the module powered?
A7: It receives 24 V DC power from the system backplane.
Q8: What installation practices ensure reliable communication?
A8: Proper segment termination, correct cable selection, compliance with grounding standards, and adherence to fieldbus topology guidelines are recommended.
Honeywell CC-PFB801 51410087-176 Fieldbus Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
