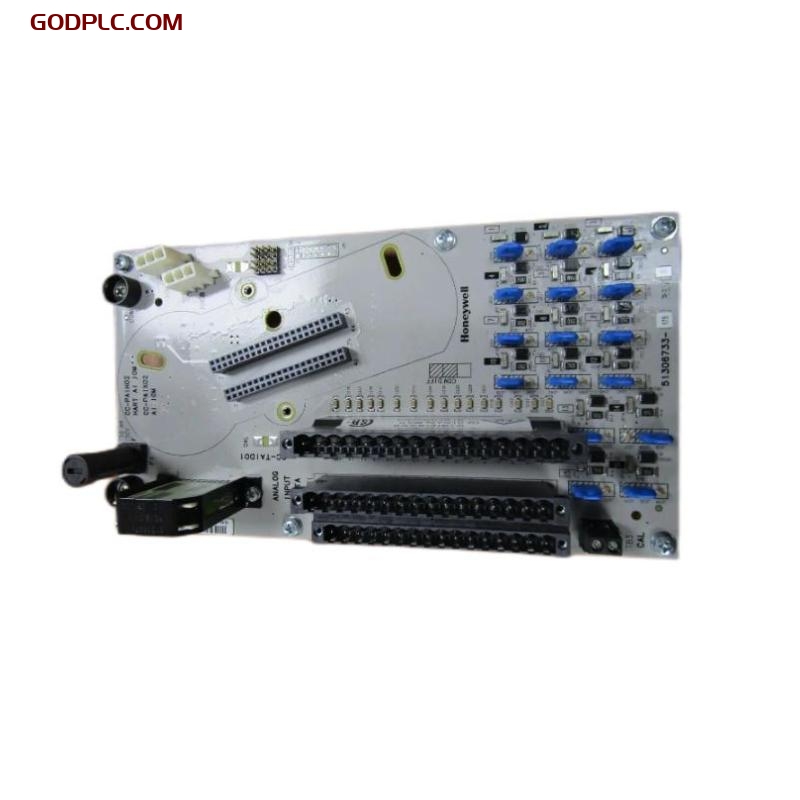

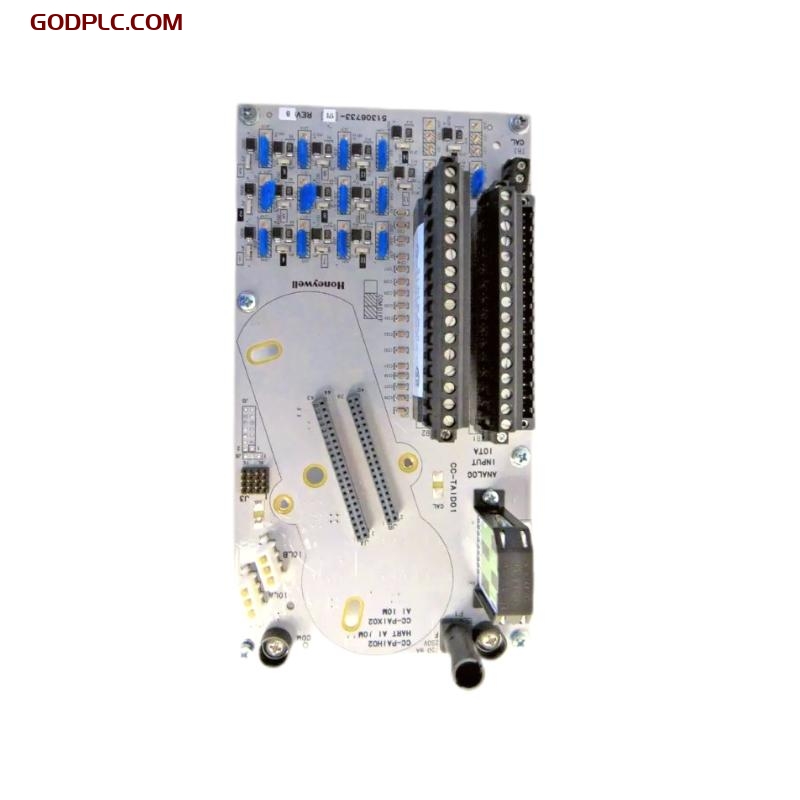

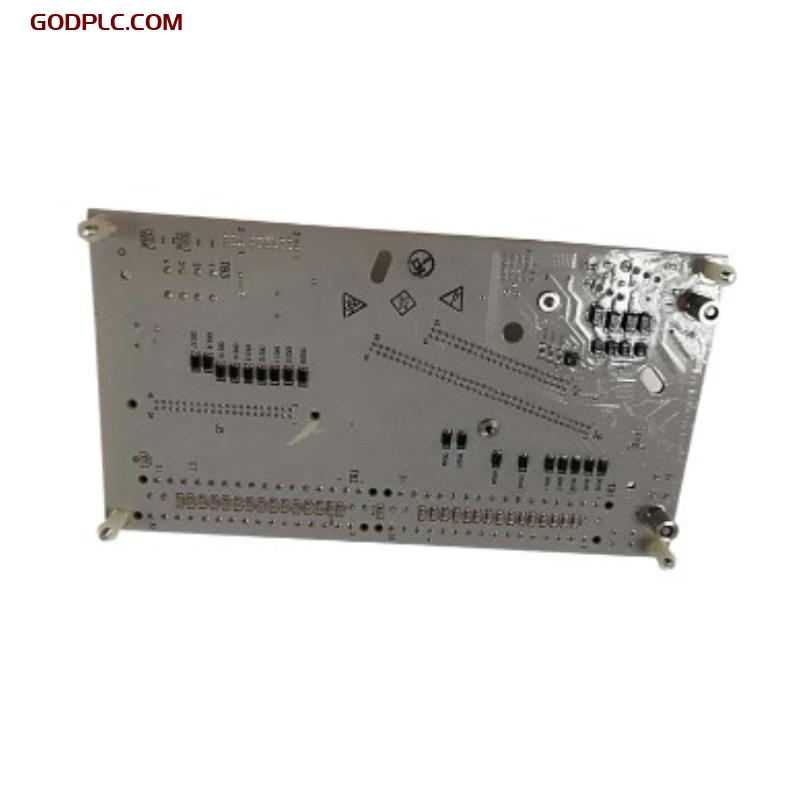

Honeywell CC-TAID01 51306733-175 Analog Input Modules
Product Overview
The Honeywell CC-TAID01 51306733-175 Analog Input Module is a versatile and high-performance module designed to interface with a wide range of analog input devices in process control systems. This module plays a vital role in capturing and converting analog signals from field sensors such as temperature, pressure, flow, and level transmitters into digital data for processing by control systems. It is an essential component for applications in industries like chemical processing, oil & gas, power generation, and manufacturing, where precise measurement and monitoring are critical.
The CC-TAID01 is part of Honeywell’s advanced Experion Process Knowledge System (PKS), ensuring seamless integration and reliable data acquisition. With its high-precision analog-to-digital conversion capabilities, this module provides accurate and real-time data for enhanced control, monitoring, and decision-making.
Key Features
-
Wide Input Range: Supports a broad range of analog inputs, including current (4–20 mA) and voltage (0–10 V), making it adaptable to various field devices.
-
High-Accuracy Conversion: Delivers high-resolution analog-to-digital conversion for accurate signal processing.
-
Real-Time Data Processing: Provides real-time processing and monitoring of analog signals for prompt decision-making and action.
-
Seamless Integration: Easily integrates with Honeywell Experion PKS for enhanced process control and data visualization.
-
Advanced Diagnostics: Equipped with built-in diagnostics to monitor the health and status of connected field devices, reducing downtime and improving reliability.
-
Rugged and Reliable: Built for industrial environments, offering high durability and stable operation under harsh conditions.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 221 x 121 x 80mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 0–10 V (Voltage Input), 4–20 mA (Current Input) |
| Power Supply | 24 V DC |
| Power Consumption | Approx. 6 W |
| Input Channels | 16 analog input channels |
| Input Impedance | 250 Ω (current input) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Honeywell Experion PKS |
| Software Configuration | Honeywell Configuration Software |
Industry Applications
-
Process Control: Ideal for applications requiring precise analog signal acquisition from sensors in chemical, petrochemical, and pharmaceutical plants.
-
Oil & Gas: Supports monitoring of pressure, temperature, and flow sensors in upstream and downstream operations.
-
Power Generation: Facilitates accurate data acquisition from power plant sensors, ensuring optimal performance and safety.
-
Manufacturing: Used in automated manufacturing systems to monitor machine performance and environmental conditions.
-
Water Treatment: Monitors water quality parameters, ensuring the efficient operation of water treatment and distribution systems.
The Honeywell CC-TAID01 51306733-175 Analog Input Module is an essential component for reliable and precise analog signal acquisition in industrial automation systems. Its ability to interface with a wide range of analog devices, along with high-accuracy data conversion and real-time processing, makes it an ideal choice for a variety of industries. Whether in process control, power generation, or manufacturing, this module ensures optimal performance and seamless integration with Honeywell’s Experion PKS for enhanced control and monitoring.
Honeywell CC-TAID01 51306733-175 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
