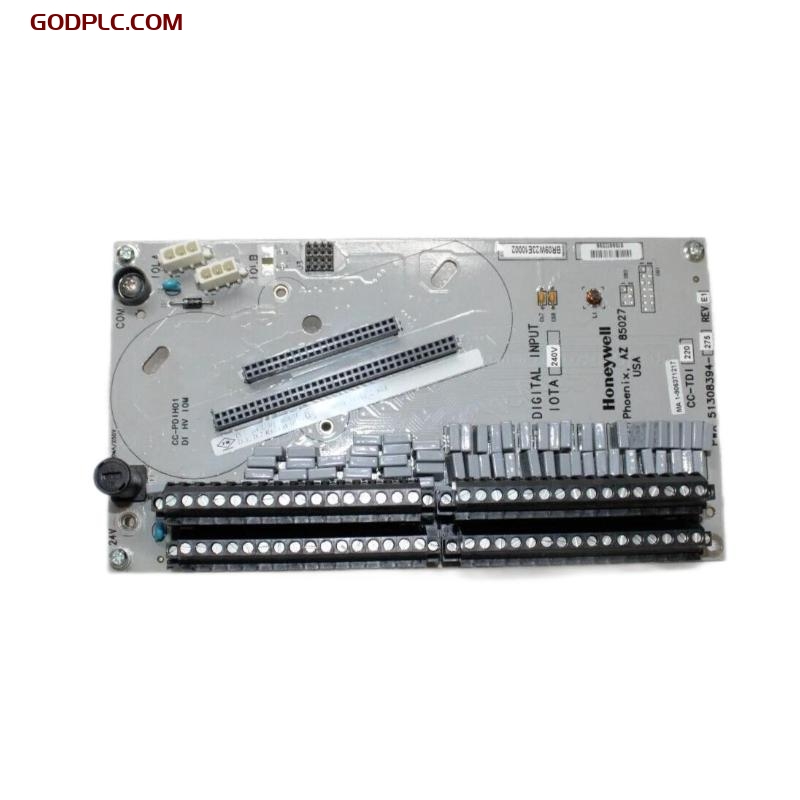

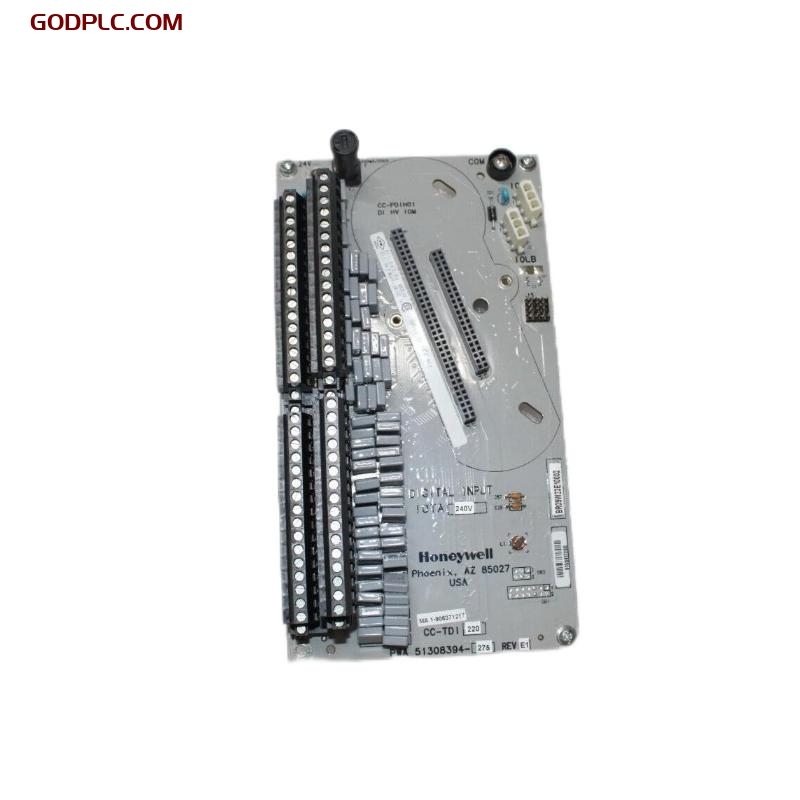

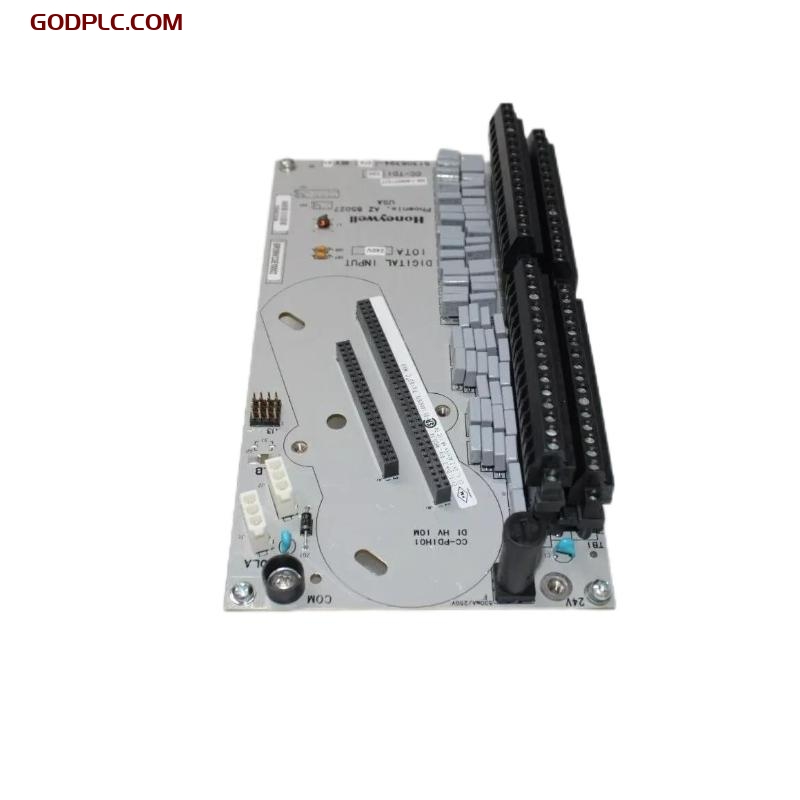

Honeywell CC-TDI220 51308394-275 Digital Input Module
Product Overview
The Honeywell CC-TDI220 51308394-275 is a digital input module designed for use in Honeywell Experion® PKS control systems. This module is engineered to provide reliable digital signal inputs from field devices, ensuring accurate and fast detection of ON/OFF states. With support for up to 16 channels, the CC-TDI220 module is ideal for applications that require multiple input points for process monitoring and control. It is certified for Zone 2 / Division 2 non-hazardous locations, offering enhanced safety and reliability in industrial environments.
Key Features
-
High Input Reliability: Designed for precise and fast digital signal input, providing accurate detection of field device states.
-
16 Channel Configuration: Supports up to 16 digital input channels for multiple point control and monitoring.
-
Short-circuit Protection: Equipped with short-circuit protection for each channel to prevent damage from wiring faults or device failures.
-
HART Protocol Support: Enables remote configuration and diagnostics using the HART communication protocol for system optimization.
-
Environmental Certification: Certified for Zone 2 / Division 2 non-hazardous locations, suitable for demanding industrial environments.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 185 x 150 x 75cm |
| Weight | 0.5 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage Range | 10 to 30 VDC |
| Input Type | Dry Contact or Wet Contact |
| Communication Protocol | HART |
| Power Supply | 24 VDC ± 20% |
| Maximum Input Current | 8 mA |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Certification | Zone 2 / Division 2 non-hazardous |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Environmental Seal | NEMA 4X (IP66) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell Experion® PKS systems |
| Mounting | DIN rail or screw mounting options |
Industry Applications
-
Industrial Automation: Ideal for applications requiring multiple digital inputs for process control and monitoring.
-
Process Monitoring: Used in various industries like oil & gas, chemical, and manufacturing for detecting digital states of field devices.
-
Remote Diagnostics: HART protocol support allows remote diagnostics and configuration, optimizing system performance.
The Honeywell CC-TDI220 51308394-275 Digital Input Module ensures high reliability for digital signal input, making it an essential component for control systems in industrial automation. Its 16-channel configuration, short-circuit protection, and HART protocol support make it suitable for a wide range of applications requiring accurate digital input signal processing.
Honeywell CC-TDI220 51308394-275 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
