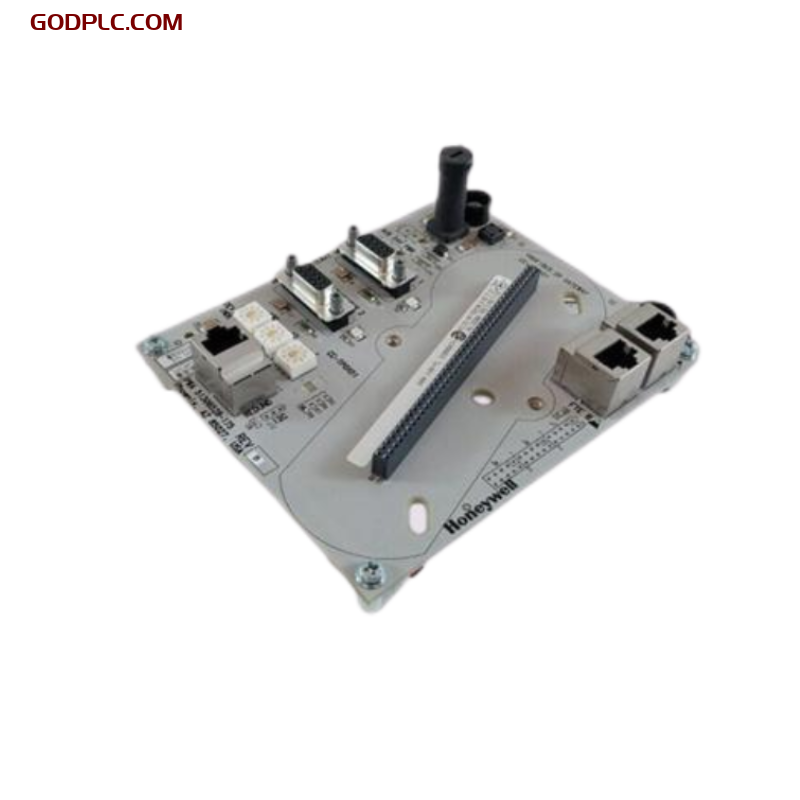

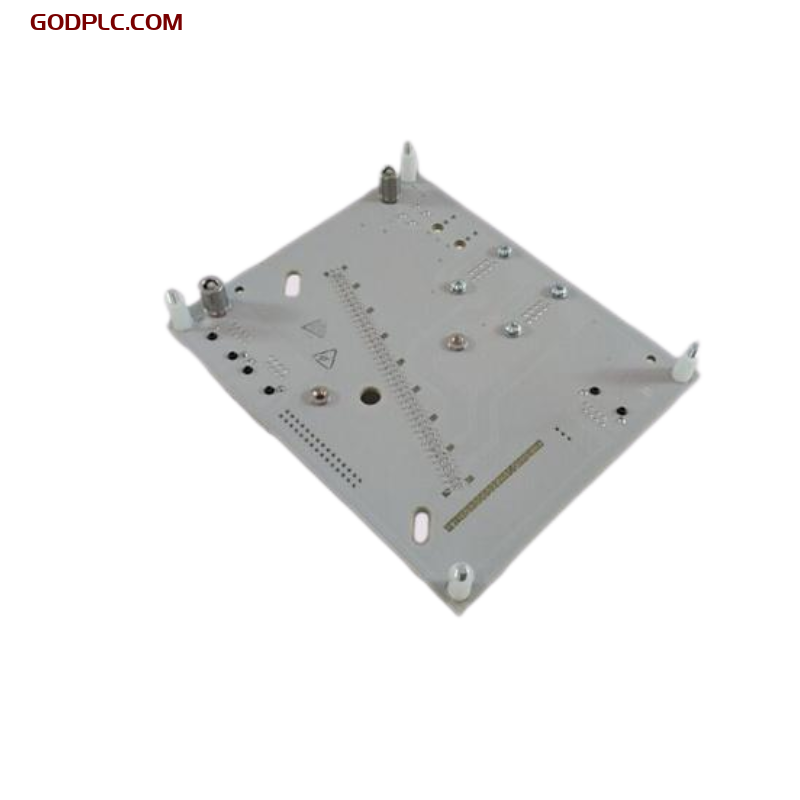

Honeywell CC-TP0X01 51306528-175 – Fieldbus Module
Product Overview
The Honeywell CC-TP0X01 (part number 51306528-175) is a Fieldbus I/O interface module used within Honeywell’s Experion PKS and C300 control systems. It provides seamless connectivity between the controller and Foundation Fieldbus (FF) devices, enabling distributed control strategies, advanced diagnostics, and simplified wiring for field instrumentation. Designed for high reliability and robust integration, this module facilitates digital communication in process industries where intelligent device integration is critical.
Key Features
-
Foundation Fieldbus Protocol – Fully supports FF communication, allowing integration of smart field devices across various vendors.
-
Dual Segment Support – Enables connection of two independent Fieldbus segments, reducing module count and cabinet space.
-
Redundancy Capable – Supports redundancy configurations for high-availability applications.
-
Advanced Diagnostics – Monitors device and network health for predictive maintenance and rapid troubleshooting.
-
Hot Swap Capability – Allows field replacement without system shutdown or process interruption.
-
Integrated with Experion PKS – Designed to work natively within Honeywell’s control architecture for simplified configuration and maintenance.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 110 x 150 x 50 mm |
| Weight | 0.6 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | Supplied by system backplane (24 VDC nominal) |
| Communication Protocol | Foundation Fieldbus H1 (IEC 61158-2) |
| Number of Segments | 2 independent FF H1 segments |
| Maximum Devices/Segment | Up to 16 devices per segment |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell Experion PKS, C300, FIM systems |
| Mounting | Standard control system rack or enclosure |
Industry Applications
-
Oil & Gas – Connects FF-based transmitters and valve controllers in upstream and downstream applications.
-
Chemical & Petrochemical – Enables integrated asset management and diagnostics for field devices.
-
Pharmaceuticals – Supports compliance with 21 CFR Part 11 through intelligent field integration.
-
Power Generation – Provides reliable, noise-immune connectivity in turbine and boiler control systems.
-
Pulp & Paper – Streamlines process automation with centralized configuration and monitoring of smart instruments.
The Honeywell CC-TP0X01 51306528-175 Fieldbus Module offers a robust and scalable solution for integrating Foundation Fieldbus devices into Honeywell’s control platforms. With dual segment support and advanced diagnostics, it ensures efficient and reliable process automation in demanding industrial environments.
Honeywell CC-TP0X01 51306528-175 Fieldbus Modules is in stock. Please contact us for a quick quote and competitive pricing.
