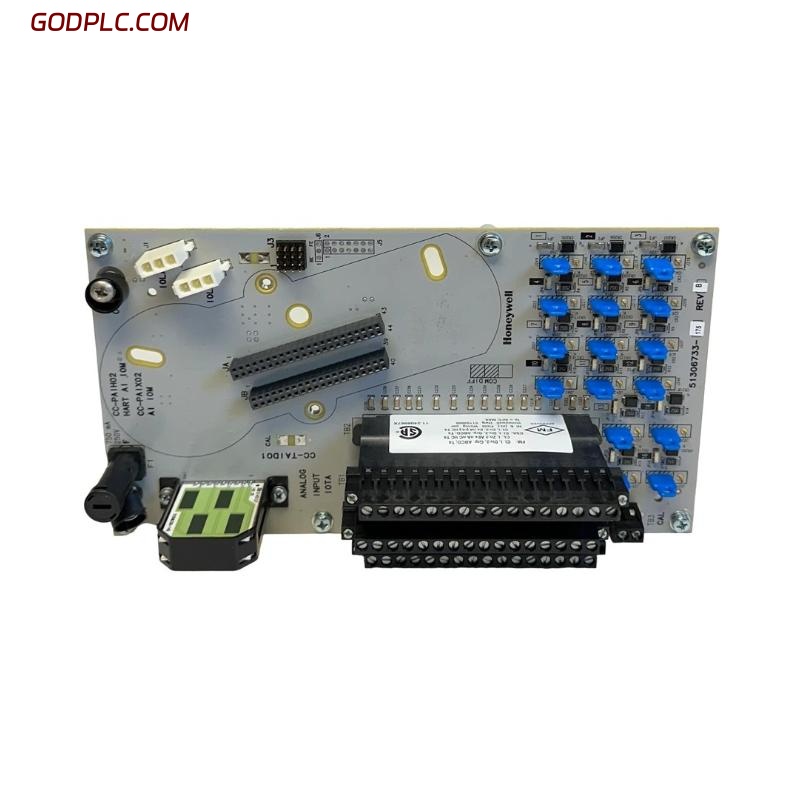

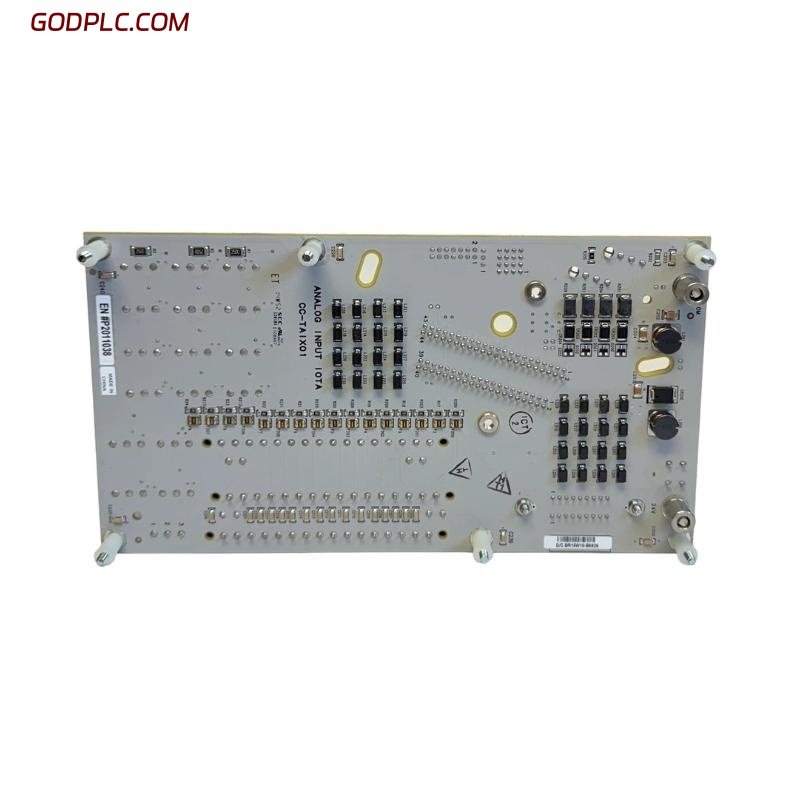

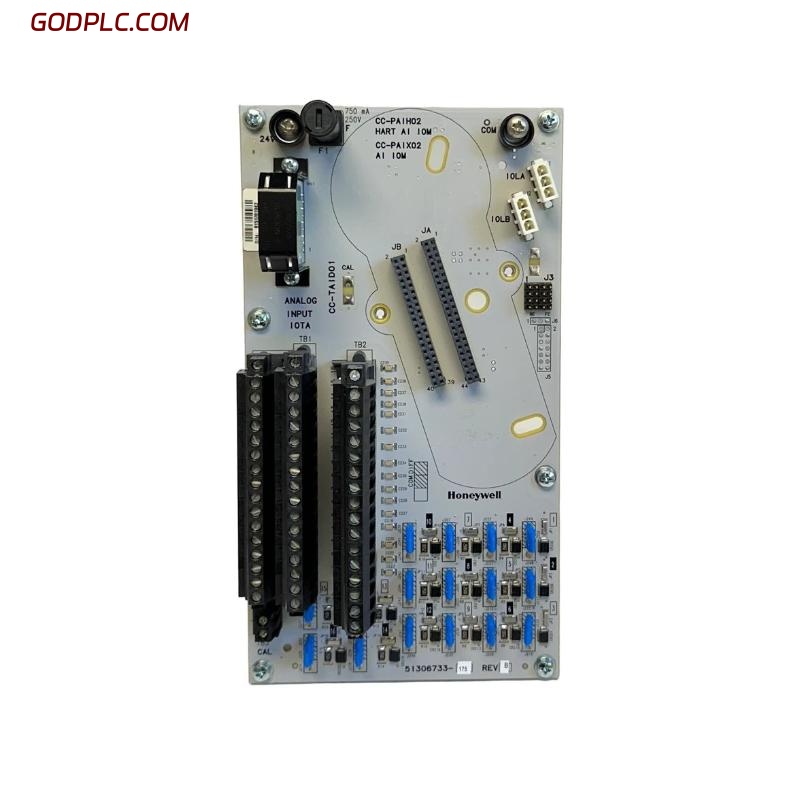

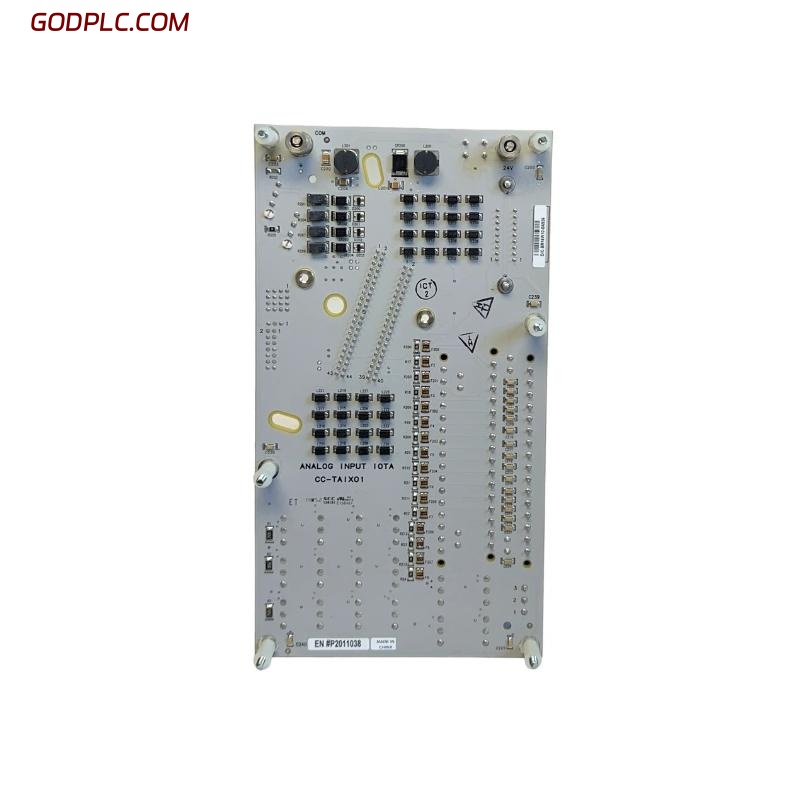

Honeywell DC-TAID01 Analog Input Module
Product Overview
The Honeywell DC-TAID01 is a high-performance Analog Input Module designed for use in Honeywell’s distributed control systems (DCS), including Experion PKS platforms. This module accurately acquires analog signals from field instruments such as sensors and transmitters, converting these signals into precise digital values for process monitoring and control.
Featuring robust signal conditioning and high-resolution conversion, the DC-TAID01 supports a variety of analog input types, including voltage, current, and thermocouple signals. Its reliable performance and compatibility with Honeywell control systems make it ideal for demanding industrial automation applications.
Key Features
-
Multi-Channel Analog Input – Supports multiple analog input channels for versatile signal acquisition
-
Wide Signal Compatibility – Accepts 4-20 mA current loops, 0-10 V voltage inputs, and thermocouple signals
-
High Accuracy and Resolution – Ensures precise data conversion for optimal process control
-
Robust Signal Conditioning – Includes filtering and isolation to enhance signal integrity
-
Seamless Integration – Fully compatible with Honeywell Experion PKS and other DCS platforms
-
Diagnostic Capabilities – Built-in diagnostics for status monitoring and fault detection
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 95 x 135 x 25 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 VDC (nominal) |
| Power Consumption | Approx. 6 W |
| Input Types | 4-20 mA, 0-10 V, thermocouples (various types) |
| Input Channels | Multiple analog inputs (typical configuration) |
| Communication | Backplane interface for DCS integration |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Enclosure Rating | Rack-mounted installation, industrial grade |
System Compatibility
| Item | Specification |
|---|---|
| System Platform | Honeywell Experion PKS and compatible DCS |
| Integration | Supports integration with Honeywell process control software |
| Standards Compliance | Meets relevant industrial automation standards |
Industry Applications
-
Oil & Gas – Precise analog signal acquisition for process measurement and control
-
Chemical & Petrochemical – Accurate input for temperature, pressure, and flow sensors
-
Power Generation – Reliable data acquisition from field instrumentation in power plants
-
Water and Wastewater Treatment – Monitoring analog signals for process optimization
-
Manufacturing – General process control and monitoring requiring accurate analog inputs
The Honeywell DC-TAID01 Analog Input Module delivers accurate and reliable analog data acquisition essential for high-performance process control systems. Its broad input compatibility and integration capabilities make it a vital component for modern industrial automation solutions.
Honeywell DC-TAID01 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
