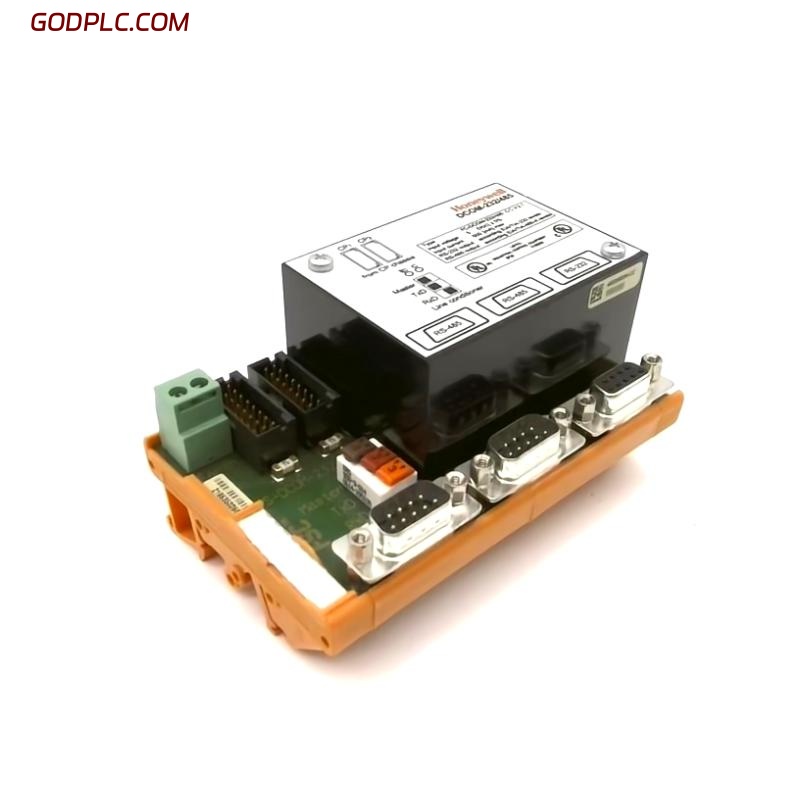

Honeywell FC-DCOM-232/485 Communication Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Honeywell FC-DCOM-232/485 is a robust communication interface module designed for industrial automation and safety systems. It provides one RS-232 output port and two RS-485/422 output ports for flexible connectivity between control processors, I/O devices, and field equipment. Powered directly from the system’s 5 V DC bus, this module delivers stable operation and supports high-speed data transfer in harsh industrial environments.
Key Features
-
Dual protocol support: one RS-232 port and two RS-485/422 ports.
-
High-speed communication: up to 250 kBaud (RS-232) and 2 Mbaud (RS-485/422).
-
Transparent, FM0, FM1, and Manchester coding modes supported.
-
Compact design with DIN-rail or panel mounting options.
-
No external power supply required—powered via 5 V DC control bus.
-
Built for rugged industrial environments with extended temperature range.
-
Certified for CE, TUV, UL, and FM (varies by region and variant).
Technical and Mechanical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-DCOM-232/485 |
| Communication Ports | 1 × RS-232, 2 × RS-485/422 |
| RS-232 Baud Rate | 0–250 kBaud |
| RS-485/422 Baud Rate | 0–2 Mbaud (transparent or coded) |
| Supply Voltage | 5 V DC ±5 % (from system bus) |
| Maximum Current Draw | 500 mA |
| Operating Temperature | −40 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity Range | 5 % to 95 % RH (non-condensing) |
| Dimensions (L × W × H) | 110 mm × 70 mm × 61 mm |
| Weight | Approximately 0.25 kg |
| Mounting Method | DIN-EN Rail (TS32 / TS35 × 7.5) |
| Terminal Block Size | 6 mm × 57 mm × 47 mm |
| Certifications | CE, TUV, UL, FM (depending on variant) |
| Country of Origin | USA |
| Warranty | 12 months (standard) |
Honeywell FC-DCOM-232/485 Communication Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
