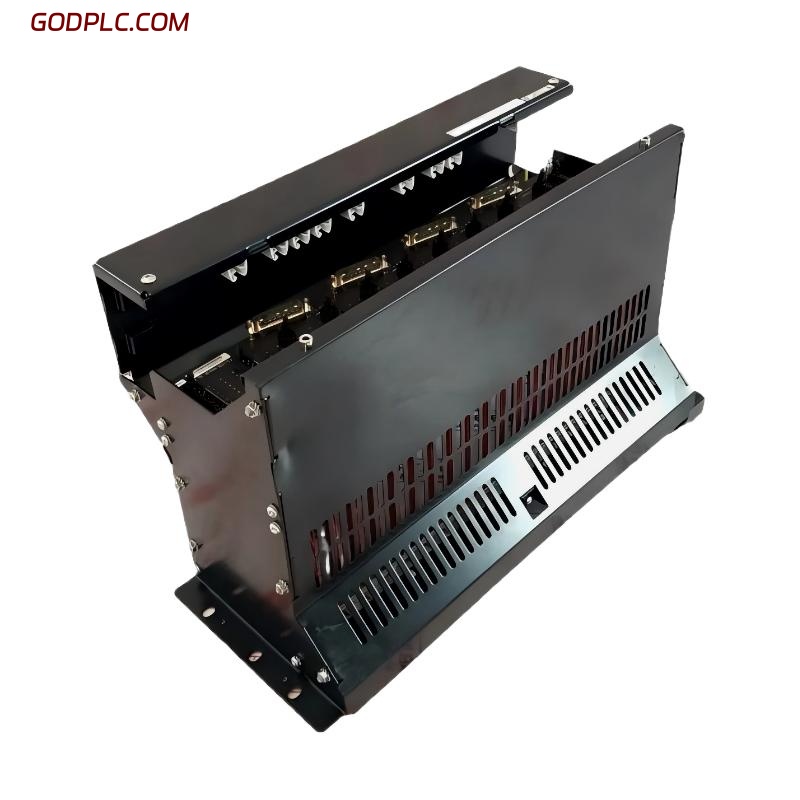

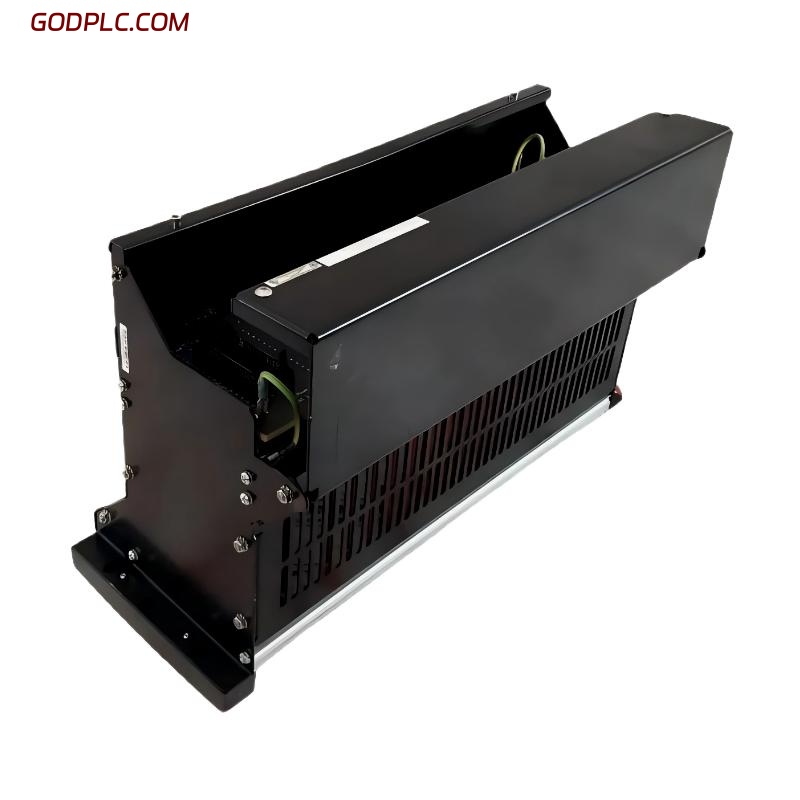

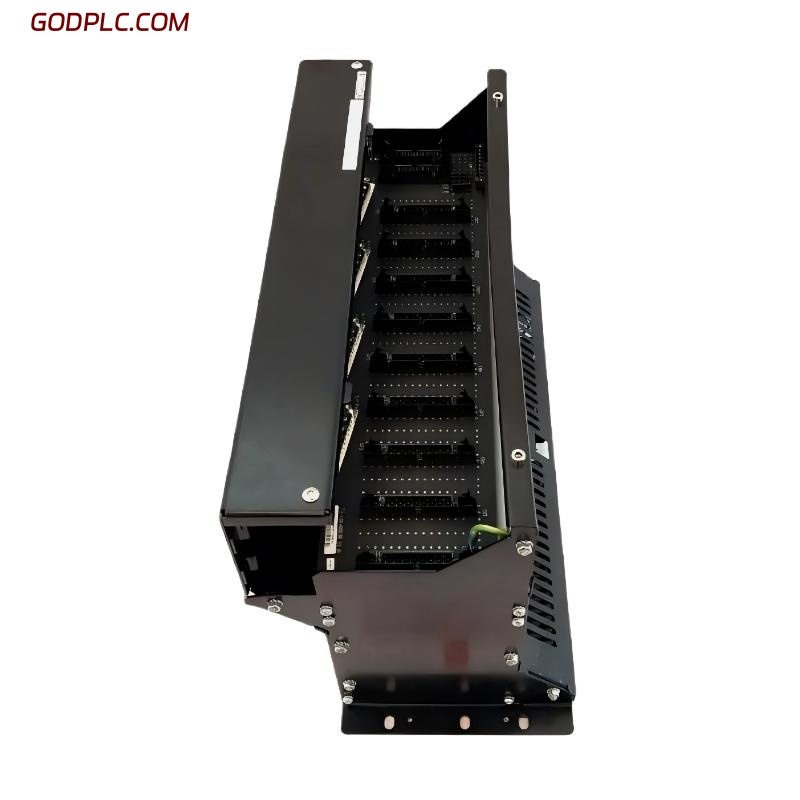

Honeywell FC-IOCHAS-0003R Redundant I/O Module Chassis
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | FC-IOCHAS-0003R |
| Product Type | Redundant I/O Module Chassis |
| System Compatibility | Honeywell Experion PKS / Safety Manager / Series C I/O |
| Redundancy Type | Hot-standby, dual-channel architecture |
| Module Capacity | Supports multiple I/O module slots (typically 8 slots) |
| Supported Signal Types | 0–20 mA / 4–20 mA (analog), depending on modules |
| Communication Interface | Backplane bus, supports redundant connections to control system |
| Communication Protocols | MODBUS RTU / EtherCAT (depending on system configuration) |
| Power Supply | 24 VDC (supports redundant power inputs) |
| Mounting Method | 19-inch rack mounting / panel mounting |
| Operating Temperature | –20°C to +55°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Protection | Industrial-grade interference resistance, continuous operation support |
| Certifications | CE, UL, CSA, TUV |
| Dimensions (H × W × D) | 222.4 × 482.6 × 280 mm |
| Weight | 8.7 kg |
FAQ
Q1: What is the function of this redundant I/O chassis in a control system?
A1: This chassis serves as a platform for installing and connecting I/O modules, centralizing field signal acquisition and distribution. Its redundant design ensures stable operation even if a single point of hardware fails, making it a critical component in high-reliability process control systems.
Q2: How does the redundancy architecture achieve seamless switching?
A2: Using a dual-channel hot-standby configuration, both primary and standby channels operate in parallel and continuously monitor each other. If a fault is detected in the primary channel, the standby channel automatically takes over within milliseconds, maintaining uninterrupted system operation.
Q3: Does the chassis support redundant power?
A3: Yes. It typically has dual power inputs for connecting two independent power sources. If one power source fails, the system automatically switches to the other, enhancing overall reliability.
Q4: What design features improve interference resistance?
A4: The chassis is built with industrial-grade electromagnetic compatibility (EMC) design, offering protection against EMI, surges, and static electricity. The backplane communication is optimized to reduce signal interference and ensure reliable data transmission.
Q5: Can I/O modules be replaced while the system is running?
A5: With proper system configuration and adherence to operational procedures, module-level maintenance is possible. The redundancy allows certain modules to be replaced without shutting down the entire system, minimizing downtime.
Q6: How does the chassis communicate with the control system?
A6: It communicates via the backplane bus for high-speed data exchange and uses industrial protocols to interface with the control system. The exact communication method depends on the installed modules and control system configuration.
Q7: In what industrial applications is this chassis typically used?
A7: Common applications include oil and gas, petrochemical plants, power generation, and large-scale automated production lines, particularly where high reliability, continuous operation, and safety are critical.
Q8: What advantages does a redundant chassis provide over a non-redundant design?
A8: The chassis reduces the risk of system failure through automatic channel switching and enhances maintenance flexibility. It allows inspection, replacement, or upgrade of modules without halting production, ensuring high system availability and operational safety.
Honeywell FC-IOCHAS-0003R Redundant I/O Module Chassis is in stock. Please contact us for a quick quote and competitive pricing.
