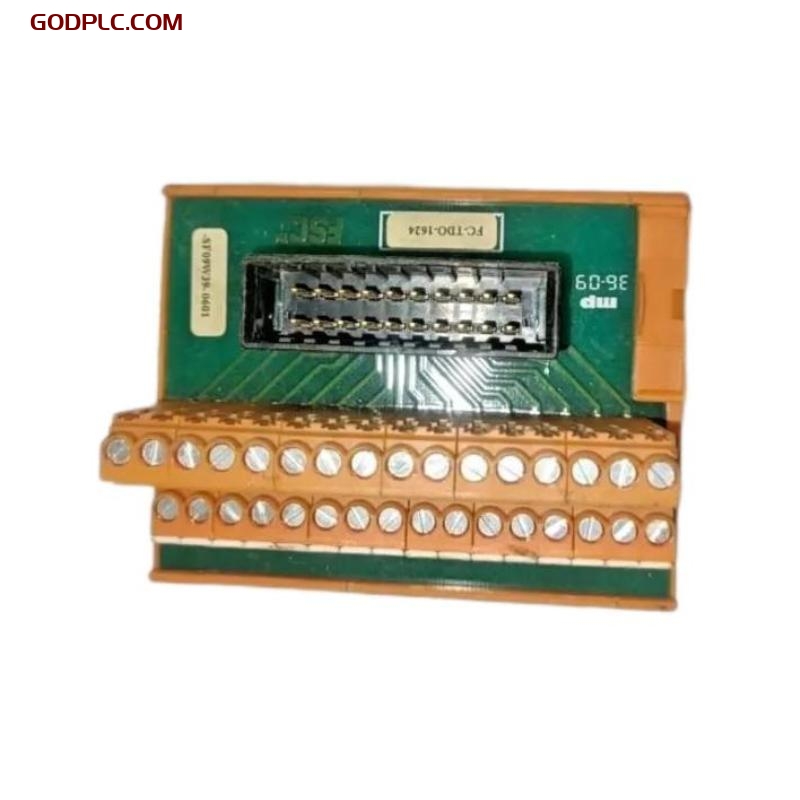

Honeywell FC-TDO-1624 Digital Output Modules

Product Overview

The Honeywell FC-TDO-1624 Digital Output Module is a high-performance, robust digital output solution designed for use in process control systems. Part of Honeywell’s Field Control System (FC), this module provides precise and reliable digital control for industrial processes, enabling accurate switching and signaling in a wide range of applications.

The FC-TDO-1624 module features 16 digital output channels, each capable of driving field devices such as relays, solenoids, and actuators. With its compact and modular design, the module can be easily integrated into existing control systems, offering scalability and flexibility for dynamic industrial operations.

Designed for use in challenging environments, the module supports reliable performance over a wide range of operating conditions, ensuring continuous, error-free operation in critical process control applications.

Key Features

• 16 Digital Output Channels – Provides 16 independent digital output channels for controlling field devices, ensuring flexibility in process control systems

• High Reliability – Built to operate continuously in demanding industrial environments, offering superior performance with low failure rates

• Flexible Integration – Easy integration into Honeywell FC-based systems, providing seamless communication with other modules and controllers

• Wide Input Range – Supports a broad voltage range, making it adaptable to different control systems and field device requirements

• High Switching Capacity – Capable of driving large, inductive loads, such as relays and solenoids, without sacrificing reliability

• Compact Design – Space-efficient, allowing for installation in a wide range of control panels and cabinets

• Advanced Diagnostics – Built-in diagnostics and status indicators for real-time system health monitoring, ensuring quick identification of faults and minimizing downtime

• Enhanced Safety – Features include over-current and short-circuit protection to safeguard both the module and connected devices

Technical Specifications

3.1 Mechanical Specifications

3.2 Electrical Specifications

3.3 Environmental Specifications

3.4 System Compatibility

Industry Applications

• Oil & Gas – Used for controlling solenoids, valves, and other field devices in drilling rigs, refineries, and pipelines, ensuring safe and efficient operation

• Chemical Processing – Provides reliable control for actuators, relays, and other digital equipment in chemical production processes

• Power Generation – Essential for turbine and generator control, enabling the reliable operation of critical power generation systems

• Pharmaceuticals – Used in batch reactors, packaging systems, and other automated pharmaceutical processes for accurate and safe control of equipment

• Food & Beverage – Integrates with process control systems to ensure efficient, reliable control of food processing equipment, adhering to regulatory standards

The Honeywell FC-TDO-1624 Digital Output Module is a critical component in ensuring accurate and reliable digital control within industrial process systems. Its robust design, advanced diagnostics, and high switching capacity make it ideal for use in demanding applications across a range of industries.
