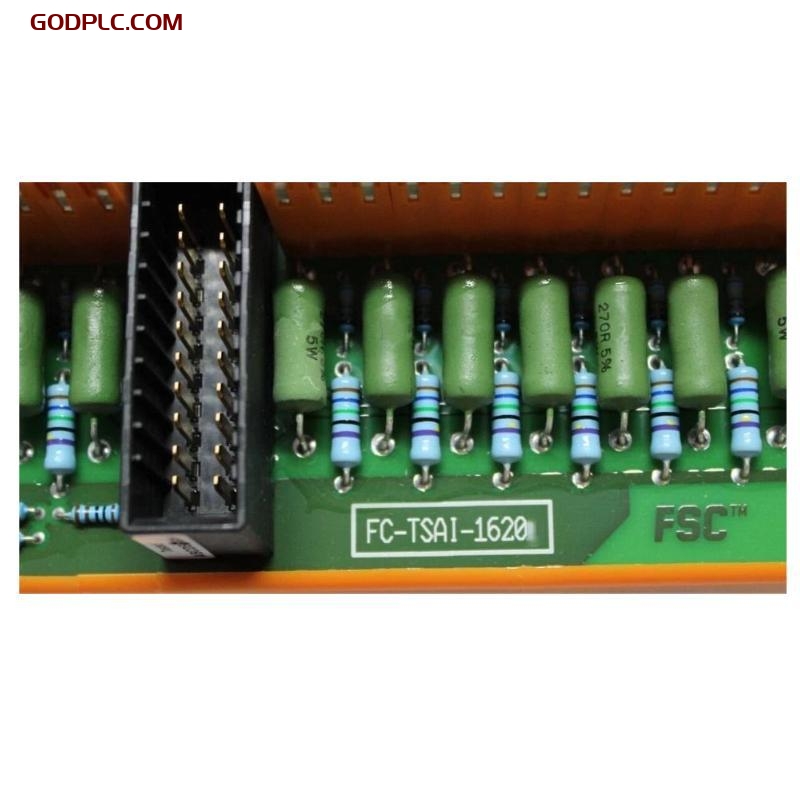

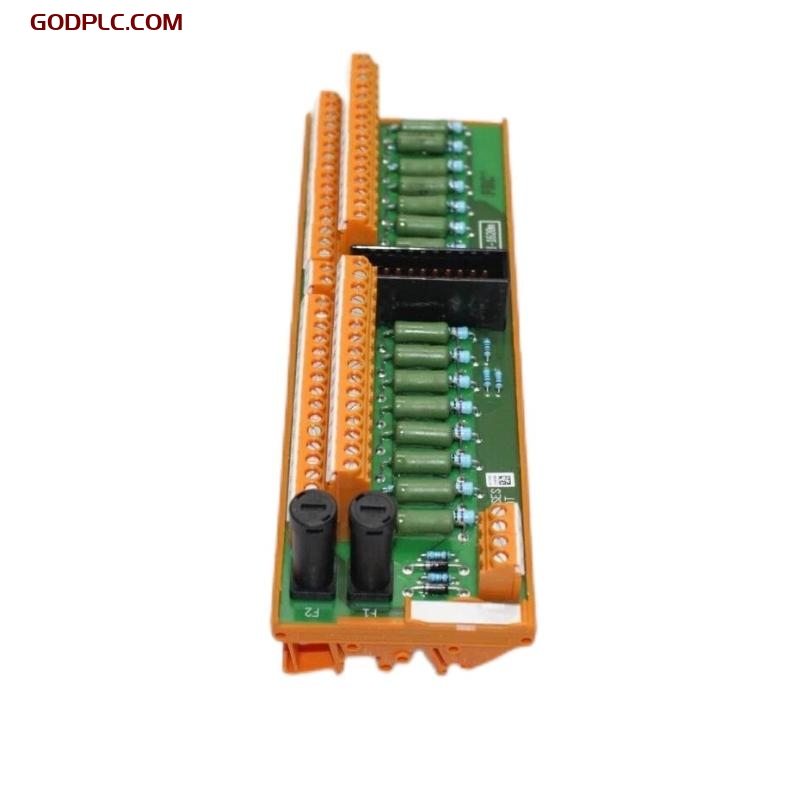

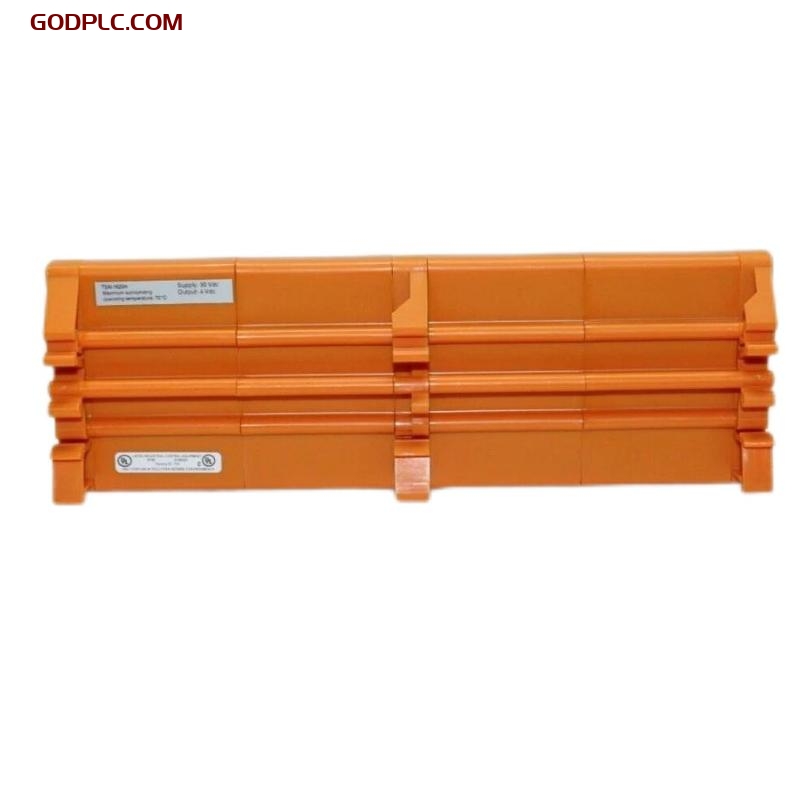

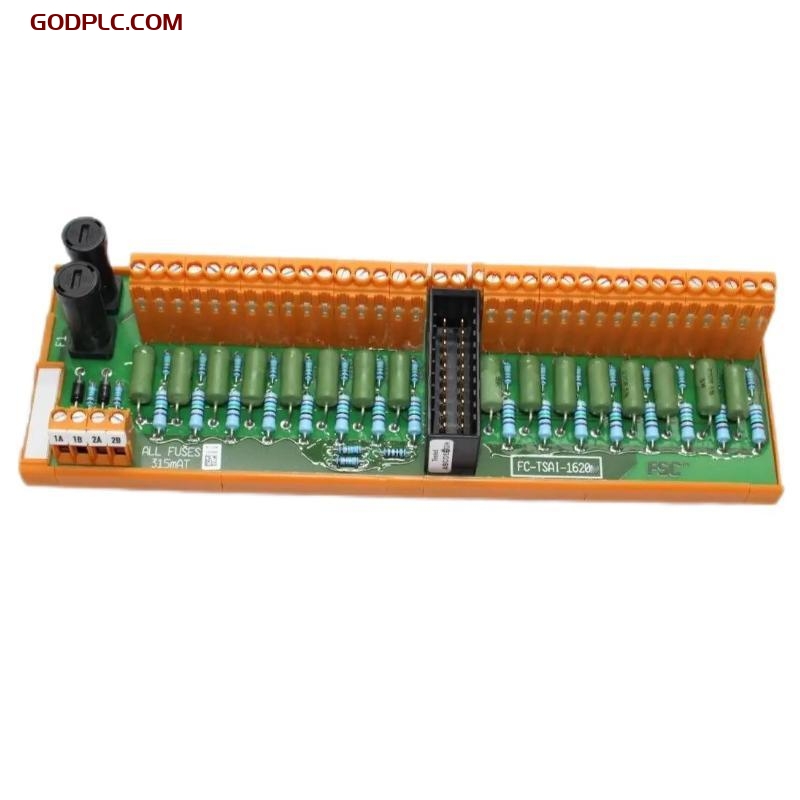

Honeywell FC-TSAI-1620 Safety Analog Input Modules
Product Overview
The Honeywell FC-TSAI-1620 Safety Analog Input Module is designed for high-performance and safety-critical applications in industrial control systems. This module offers precise analog signal input, ensuring that critical parameters are accurately monitored and controlled within safety systems. It provides 16 channels for integrating various analog devices, such as temperature sensors, pressure transmitters, and other field instruments, into a safety-rated system. With SIL 3 certification, the module meets stringent safety standards, making it suitable for applications in hazardous or mission-critical environments.
Key Features
-
SIL 3 Certified: Complies with the highest safety integrity level, ensuring reliable performance in safety-critical applications.
-
16 Analog Channels: Provides multiple input channels for diverse industrial sensors and devices, increasing system flexibility.
-
Wide Input Range: Supports both voltage (0-10 V) and current (4-20 mA) signals, accommodating a variety of field instruments.
-
High Accuracy: Ensures precise signal acquisition with low error margins, essential for accurate process monitoring and control.
-
Fault Detection: Equipped with diagnostic capabilities for real-time fault monitoring, ensuring early detection of system malfunctions.
-
Redundant Design: Features redundancy for critical applications, enhancing reliability and uptime in demanding environments.
-
Easy Integration: Compatible with Honeywell’s safety control systems, providing a seamless integration experience with existing infrastructures.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 210 × 70 × 60 mm |
| Weight | 0.5 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | FC-TSAI-1620 |
| Part Number | 51306735-175 |
| Module Type | Safety Analog Input Module |
| Input Channels | 16 Channels |
| Input Type | Voltage (0-10 V) / Current (4-20 mA) |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Power Consumption | < 4 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
| Response Time | < 50 ms |
| Accuracy | ±0.1% of full scale |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Honeywell Safety System Controllers |
| Communication Protocol | HART or Modbus |
| Software Support | Honeywell’s control system software |
Industry Applications
-
Safety Instrumented Systems (SIS): Essential for monitoring critical process variables in safety systems.
-
Process Control: Used in high-safety environments where precise monitoring of temperature, pressure, and other variables is critical for safe operations.
-
Oil and Gas: Employed in upstream and downstream oil and gas facilities, where safety is a priority.
-
Chemical Processing: Integrated into hazardous chemical plants to monitor dangerous process parameters in real-time.
-
Power Generation: Used in power plants for monitoring key parameters in safety-critical systems such as turbine control, temperature, and pressure monitoring.
The Honeywell FC-TSAI-1620 Safety Analog Input Module provides reliable and precise analog input for safety-related applications. With its SIL 3 certification, fault detection features, and wide compatibility, it ensures high integrity and performance in safety-critical environments, making it an indispensable part of any modern safety system.
