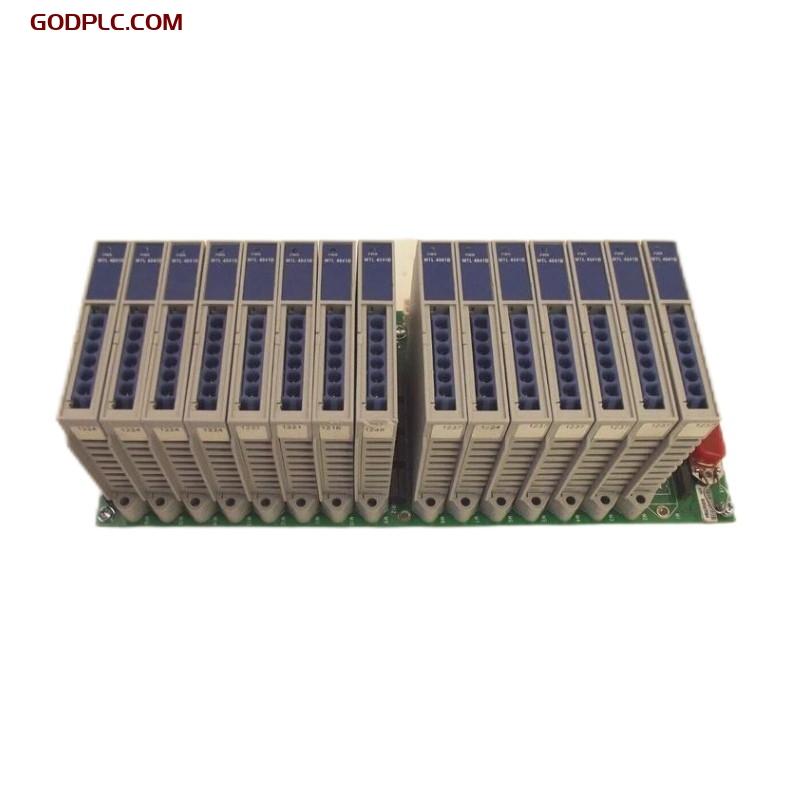

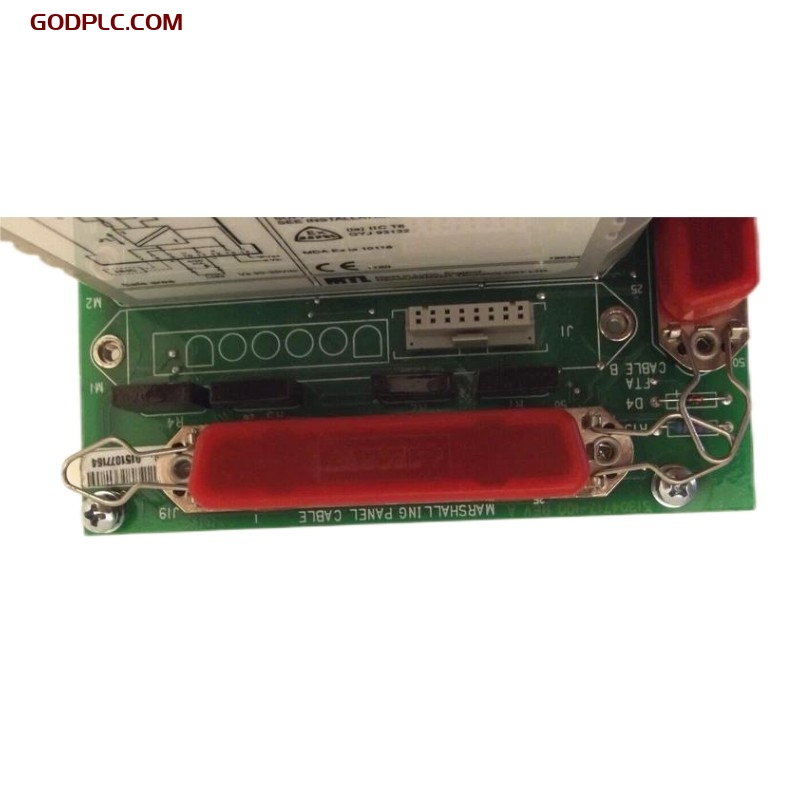

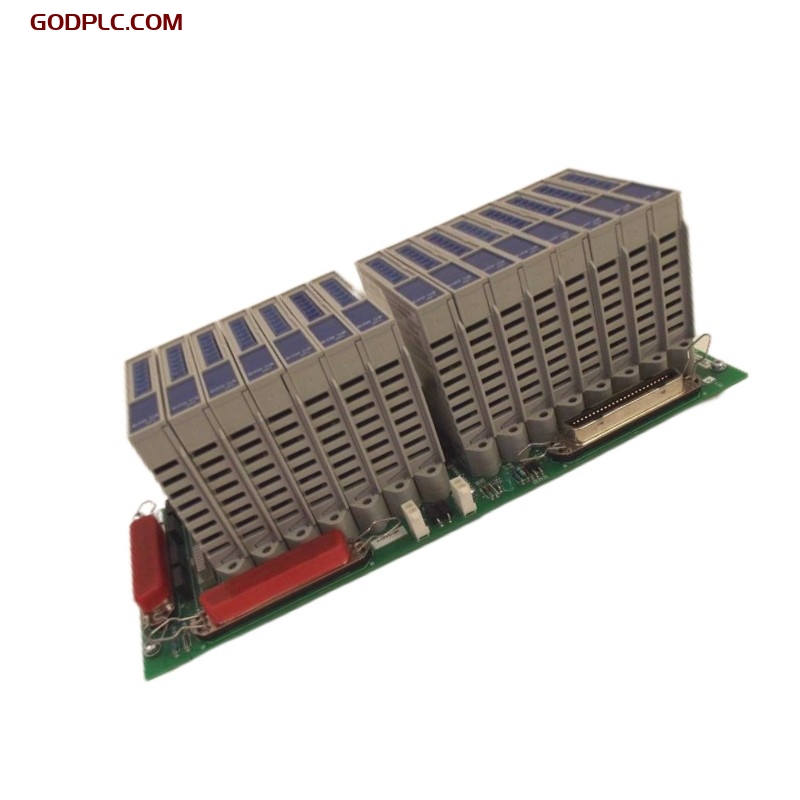

Honeywell MC-GAIH13 51304718-175 Galvanic Isolator Module
Product Overview
The Honeywell MC-GAIH13 51304718-175 Galvanic Isolator Module is a high-accuracy input interface designed to provide electrical isolation between field analog signals and the control system. As part of Honeywell’s TDC 3000 and Experion process automation platforms, this module accepts standard analog inputs (such as 4–20 mA) and transmits them safely and reliably to the control system while maintaining signal integrity and minimizing noise and ground loops.
Ideal for use in hazardous or industrial environments, the MC-GAIH13 helps protect control hardware and ensures consistent data accuracy in process measurement applications. Its compact design, robust performance, and seamless integration with Honeywell systems make it an essential component in modern control architectures.
Key Features
-
Galvanic Isolation: Electrically isolates input signals to eliminate ground loops and electrical interference.
-
Multi-Channel Input: Supports up to 8 analog input channels for efficient data acquisition.
-
High Accuracy: Delivers reliable, precise signal conversion for critical measurement points.
-
Industrial-Grade Durability: Designed to operate in demanding conditions with extended temperature and humidity tolerance.
-
Plug-and-Play Integration: Seamlessly integrates with Honeywell control systems via UCN interface.
-
Compact Design: Slim profile allows easy installation in crowded cabinets or enclosures.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 90 × 120 × 75 mm |
| Weight | 0.5 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | MC-GAIH13 |
| Part Number | 51304718-175 |
| Module Type | Galvanic Isolator Analog Input Module |
| Input Channels | 8 Channels |
| Mounting | DIN Rail or Panel Mount |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Signal Type | 4–20 mA or 1–5 V |
| Input Isolation | > 1500 V RMS |
| Power Supply | 24 V DC |
| Operating Temp | –40°C to +70°C |
| Storage Temp | –40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Honeywell TDC 3000, Experion Systems |
| Communication Protocol | Universal Control Network (UCN) |
| Configuration Tool | Honeywell Engineering Tools |
| Firmware Upgradeable | Yes |
Industry Applications
-
Oil & Gas: Isolates analog signals from transmitters and flow meters in hazardous zones.
-
Chemical Processing: Ensures accurate analog data acquisition for pH, temperature, and pressure measurement.
-
Power Generation: Monitors turbine and generator analog values with signal integrity.
-
Water & Wastewater: Provides isolation for level, flow, and conductivity sensor inputs.
-
Pharmaceutical Manufacturing: Supports clean and isolated analog inputs for precision processing.
The Honeywell MC-GAIH13 51304718-175 Galvanic Isolator Module is a reliable and accurate solution for isolating and transmitting analog signals in industrial control systems. Its integration capabilities, rugged design, and superior signal fidelity make it a critical component for safe and effective process automation.
Honeywell MC-GAIH13 51304718-175 Galvanic Isolator Modules is in stock. Please contact us for a quick quote and competitive pricing.
