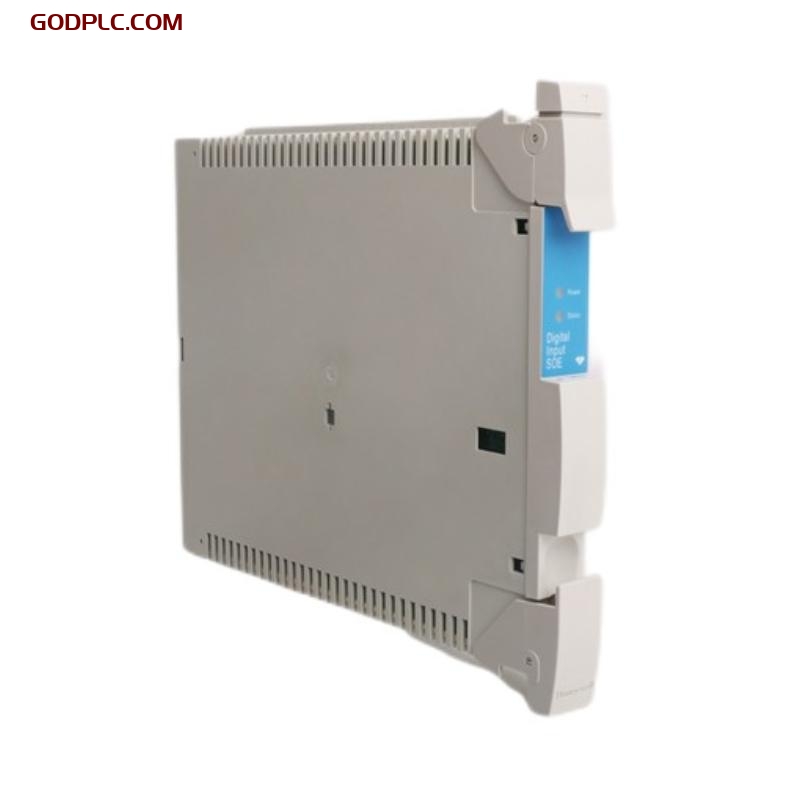

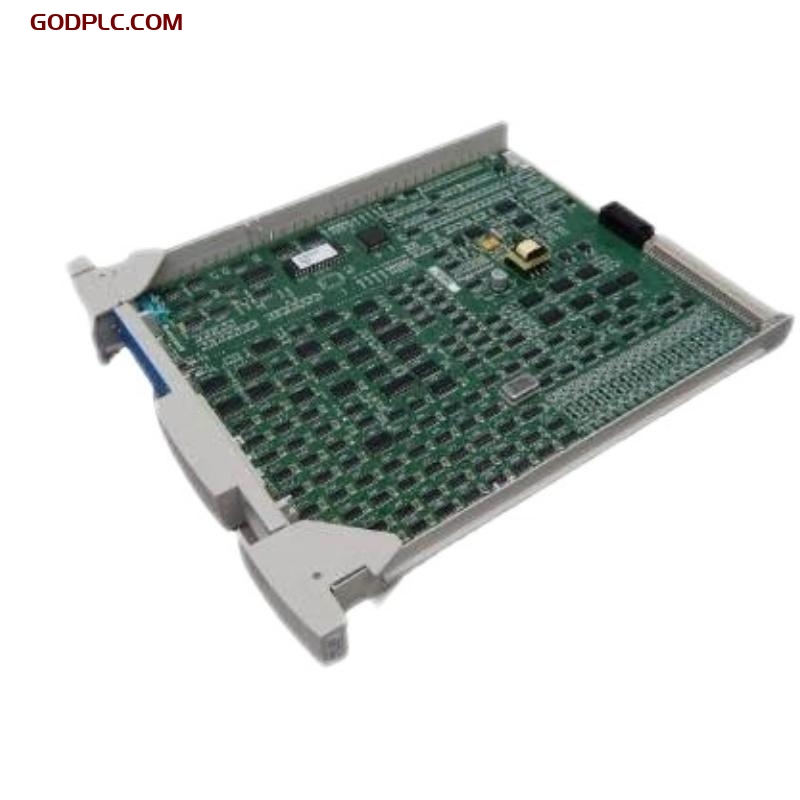

Honeywell MC-PDIS12 51402625-175 Digital Input Module
Product Overview
The Honeywell MC-PDIS12 51402625-175 is a high-performance digital input module designed to monitor up to 32 discrete input signals in industrial control systems. As part of Honeywell’s renowned TDC 3000 and Experion process control platforms, this module ensures precise and reliable acquisition of digital signals from field devices such as switches, sensors, and relays.
This module is engineered for demanding industrial environments, featuring a compact design and robust build to withstand harsh conditions. It supports Sequence of Events (SOE) monitoring with time-stamped accuracy, making it an ideal solution for applications where event logging and real-time status are critical to safety and performance.
Key Features
-
32 Digital Input Channels: Enables simultaneous monitoring of 32 field inputs for comprehensive digital signal management.
-
SOE Capability: Captures time-stamped input transitions to support accurate sequence analysis.
-
Robust Industrial Design: Conformal coating ensures durability in corrosive and high-humidity environments.
-
Efficient Integration: Seamlessly connects with Honeywell’s control systems via the UCN (Universal Control Network).
-
CE Compliant: Meets international safety and electromagnetic compatibility standards.
-
Compact Form Factor: Space-saving design allows flexible installation in control cabinets.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 213 x 200 x 20mm |
| Weight | 0.662 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | MC-PDIS12 |
| Part Number | 51402625-175 |
| Module Type | Digital Input Module |
| Input Channels | 32 Channels |
| Mounting | DIN Rail or Panel Mount |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Power Consumption | < 5 W |
| Operating Temp | –40°C to +70°C |
| Storage Temp | –40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Honeywell TDC 3000, Experion Systems |
| Communication Protocol | Universal Control Network (UCN) |
| Configuration Tool | Honeywell Engineering/Configuration Tools |
| Firmware Upgradeable | Yes |
Industry Applications
-
Oil & Gas: Monitors discrete status signals from valves, actuators, and emergency shutdown systems.
-
Chemical and Petrochemical Plants: Provides accurate SOE logging for event-based diagnostics and compliance.
-
Power Generation: Ensures reliable input detection from turbines and generator protection devices.
-
Water and Wastewater: Captures input transitions in pump stations, treatment plants, and valve systems.
-
Manufacturing: Interfaces with limit switches, alarms, and machine safety devices for discrete control.
The Honeywell MC-PDIS12 51402625-175 Digital Input Module delivers dependable and precise input monitoring in critical industrial environments. Its integration with Honeywell’s control platforms and support for SOE makes it a trusted choice for applications demanding high reliability and traceability.
Honeywell MC-PDIS12 51402625-175 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
