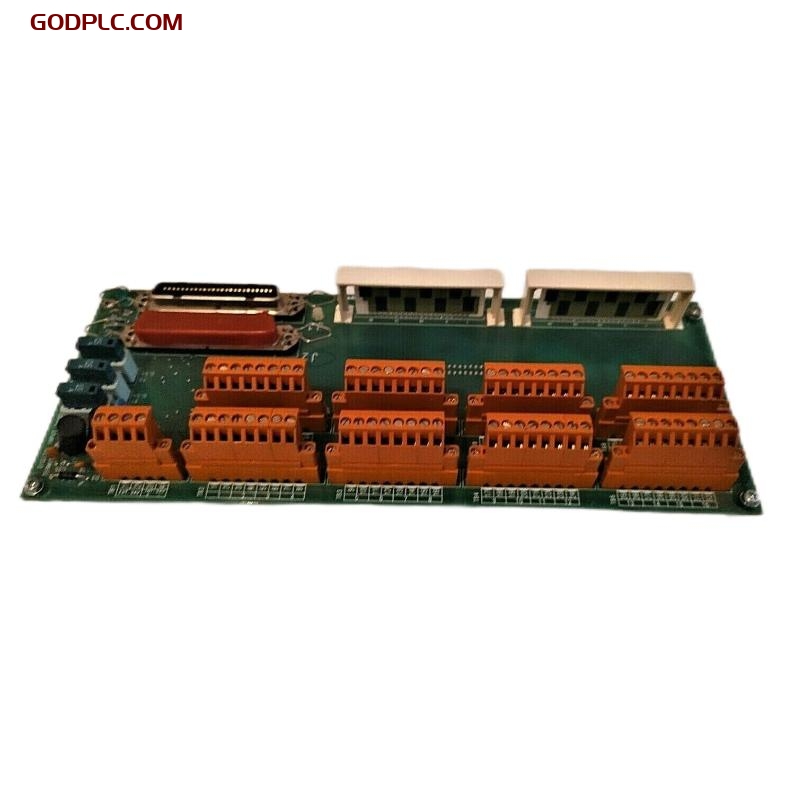

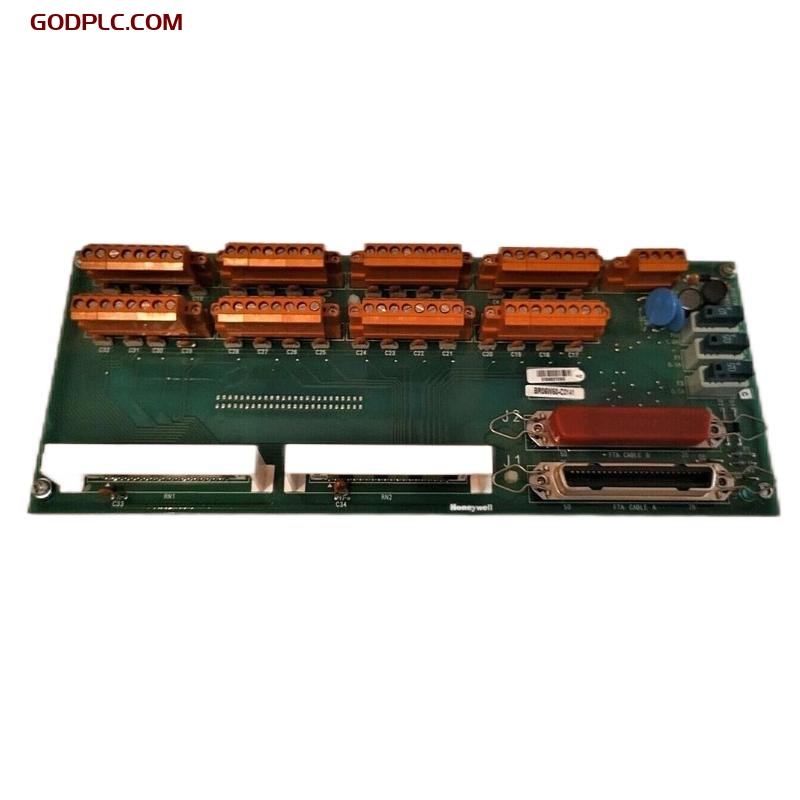

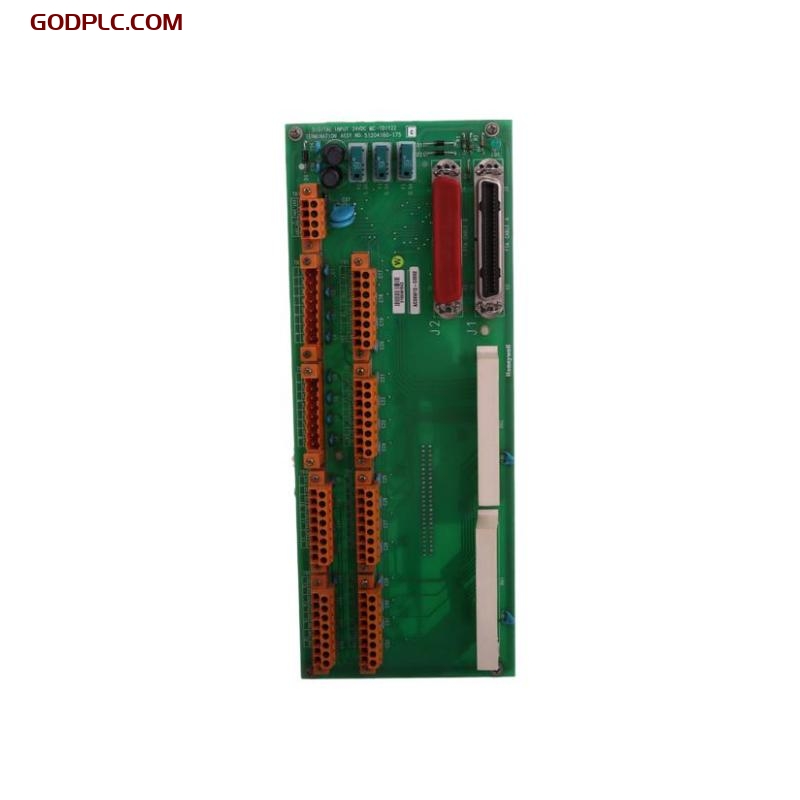

Honeywell MC-TDIY22 51204160-175 Digital Input Module
__________________________________________________________________________________________
Product Overview
The Honeywell MC-TDIY22 51204160-175 Digital Input Module is a versatile and high-performance digital input module designed for use within Honeywell’s Experion Process Knowledge System (PKS). This module is designed to acquire discrete signals from field devices such as limit switches, push buttons, and alarms. It offers robust, reliable, and secure signal processing to ensure that critical digital signals are efficiently integrated into control systems for real-time monitoring and process control.
Key Features
-
16-Channel Input: Supports 16 discrete digital inputs per module, enabling versatile signal acquisition from a wide range of field devices.
-
Wide Voltage Range: Accommodates various digital field devices that operate at different voltage levels.
-
Galvanic Isolation: Provides optical isolation for each input to prevent electrical interference and improve system protection.
-
Built-in Diagnostics: Continuously monitors input status, ensuring operational integrity and alerting to any wiring or device faults.
-
Redundancy Support: Supports redundant configurations to enhance reliability and fault tolerance in critical applications.
-
Hot-Swappable: Allows for maintenance or module replacement without system downtime, ensuring continuous operation.
-
Seamless System Integration: Fully compatible with Honeywell’s C300 and Experion PKS control systems for easy integration and configuration.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 30 mm |
| Weight | 0.308 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | MC-TDIY22 |
| Part Number | 51204160-175 |
| Module Type | Digital Input Module |
| Mounting | Mounted in I/O Termination Unit (IOTA) |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 channels |
| Input Voltage Range | 24 V DC (nominal) |
| Input Signal Type | Digital (On/Off) |
| Isolation | Channel-to-channel and system isolation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell C300, Experion PKS |
| Configuration Software | Control Builder, Experion Station |
Industry Applications
-
Energy & Utilities: Monitors the status of power generation equipment, relays, and alarm systems.
-
Oil & Gas: Interfaces with limit switches, emergency shutdown systems, and safety monitoring devices.
-
Water & Wastewater: Captures signals from flow meters, pumps, and alarm systems for system monitoring.
-
Manufacturing: Provides inputs from safety interlocks, machine controls, and process sensors.
-
Pharmaceuticals: Monitors status signals from batch process equipment and safety systems.
The Honeywell MC-TDIY22 51204160-175 Digital Input Module is a critical element in providing reliable, high-speed digital input signals for process control systems, ensuring accurate and secure data integration into Honeywell’s automation platforms.
Honeywell MC-TDIY22 51204160-175 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
