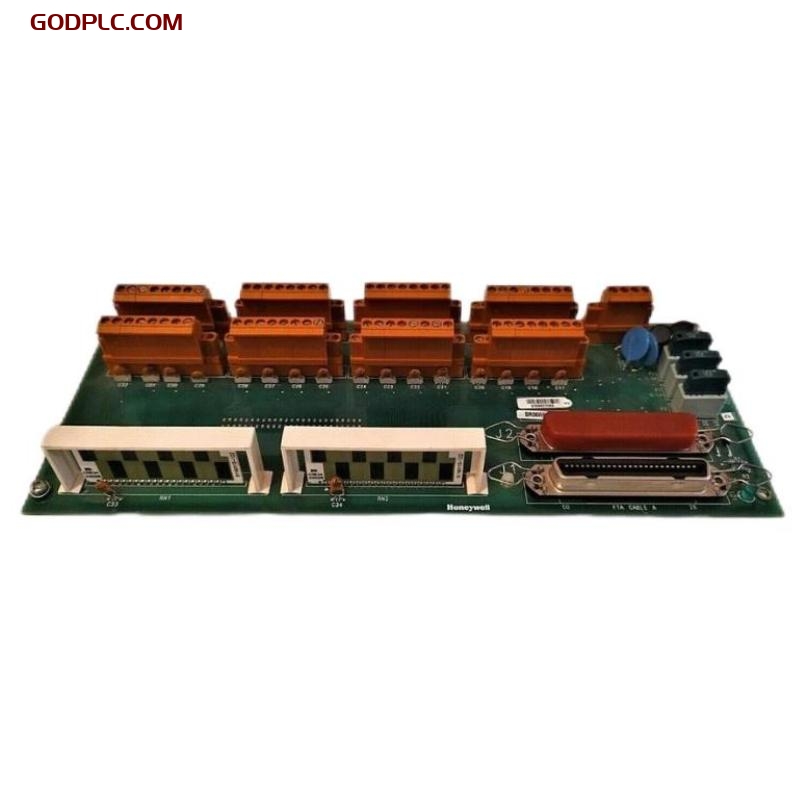

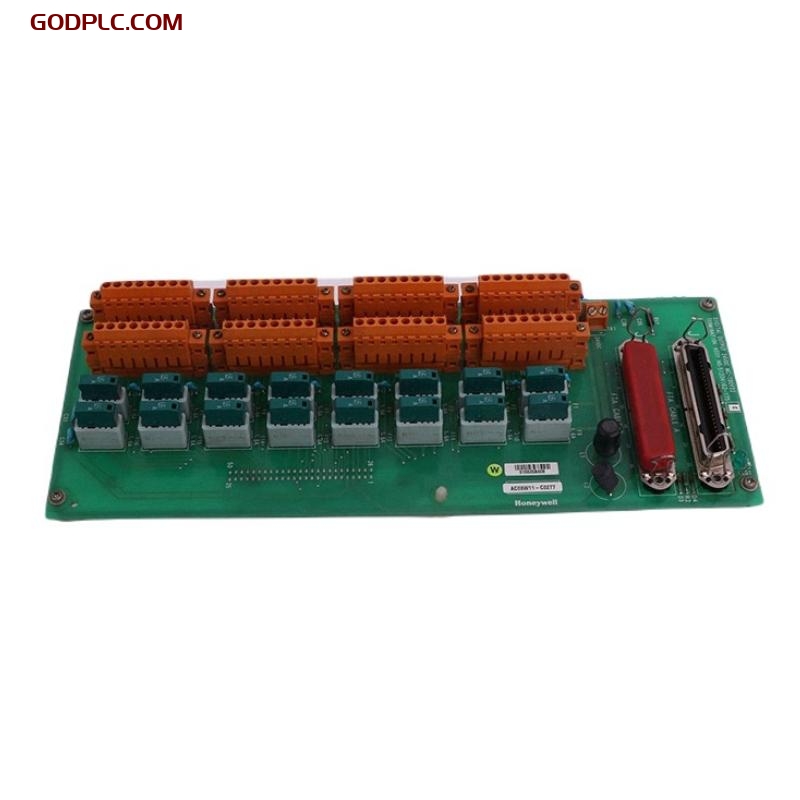

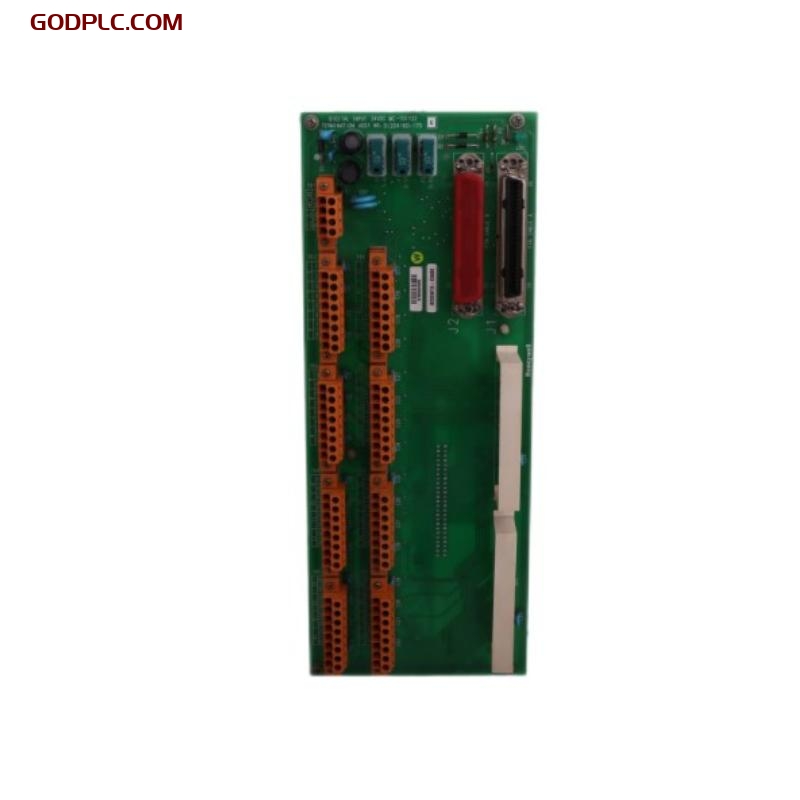

Honeywell MC-TDIY22 80366180-175 Digital Input Module
__________________________________________________________________________________________
Product Overview
The Honeywell MC-TDIY22 80366180-175 Digital Input Module is a high-performance digital input module designed for use within Honeywell’s Experion Process Knowledge System (PKS). This module is ideal for acquiring discrete signals from field devices such as limit switches, push buttons, and alarms. It ensures secure and reliable signal processing, enabling seamless integration into the control system for real-time process monitoring and control. The MC-TDIY22 80366180-175 module is built to withstand harsh industrial environments while ensuring efficient and reliable operation.
Key Features
-
16-Channel Input: Supports up to 16 discrete digital inputs per module, offering flexibility and efficiency in signal acquisition.
-
Wide Voltage Range: Compatible with a wide range of field devices operating at different voltage levels.
-
Galvanic Isolation: Each input channel is optically isolated, providing protection against electrical noise and system faults.
-
Built-in Diagnostics: Continuous monitoring of input status and system integrity, with real-time fault detection and reporting.
-
Redundancy Support: Supports redundancy configurations for increased reliability and system availability.
-
Hot-Swappable: Allows the module to be replaced or serviced without interrupting the ongoing system operation.
-
System Compatibility: Fully integrated with Honeywell’s C300 and Experion PKS systems, offering simple configuration and setup.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 30 mm |
| Weight | 0.308 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | MC-TDIY22 |
| Part Number | 80366180-175 |
| Module Type | Digital Input Module |
| Mounting | Mounted in I/O Termination Unit (IOTA) |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 channels |
| Input Voltage Range | 24 V DC (nominal) |
| Input Signal Type | Digital (On/Off) |
| Isolation | Channel-to-channel and system isolation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell C300, Experion PKS |
| Configuration Software | Control Builder, Experion Station |
Industry Applications
-
Energy & Utilities: Captures input signals from electrical relays, alarm systems, and safety equipment.
-
Oil & Gas: Interfaces with field devices like emergency shutdown switches, control panels, and safety monitoring systems.
-
Water & Wastewater: Used in monitoring flow sensors, pressure switches, and alarm systems.
-
Manufacturing: Collects data from limit switches, safety interlocks, and production line control devices.
-
Pharmaceuticals: Monitors digital signals from process control equipment to ensure safe and efficient operations.
The Honeywell MC-TDIY22 80366180-175 Digital Input Module offers a reliable solution for monitoring and controlling discrete digital signals within critical process control systems. Its robust features, including high-channel density, redundancy support, and seamless integration, make it an essential component in diverse industrial applications.
Honeywell MC-TDIY22 80366180-175 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
