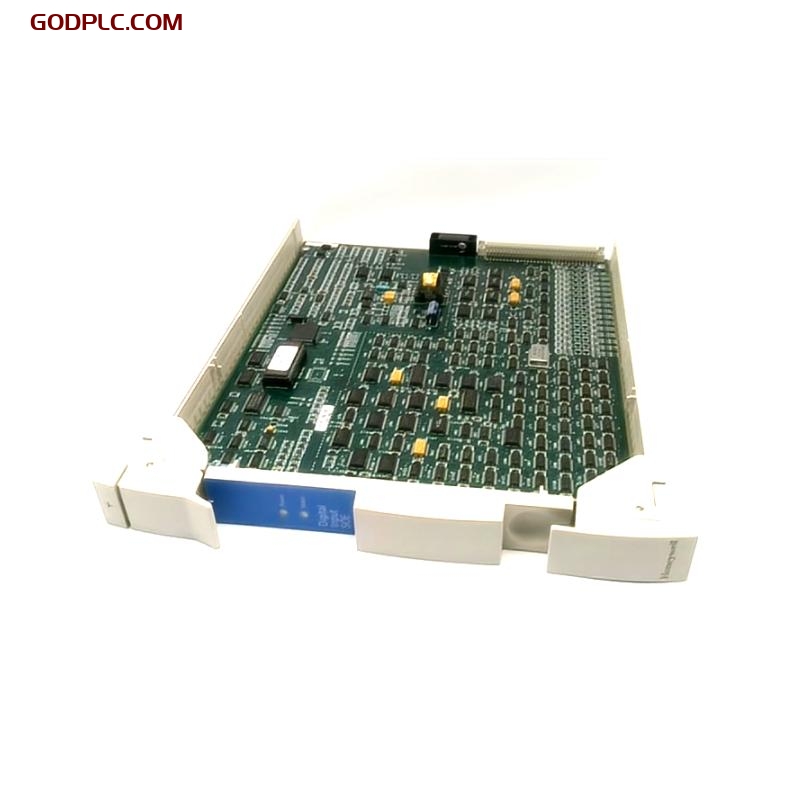

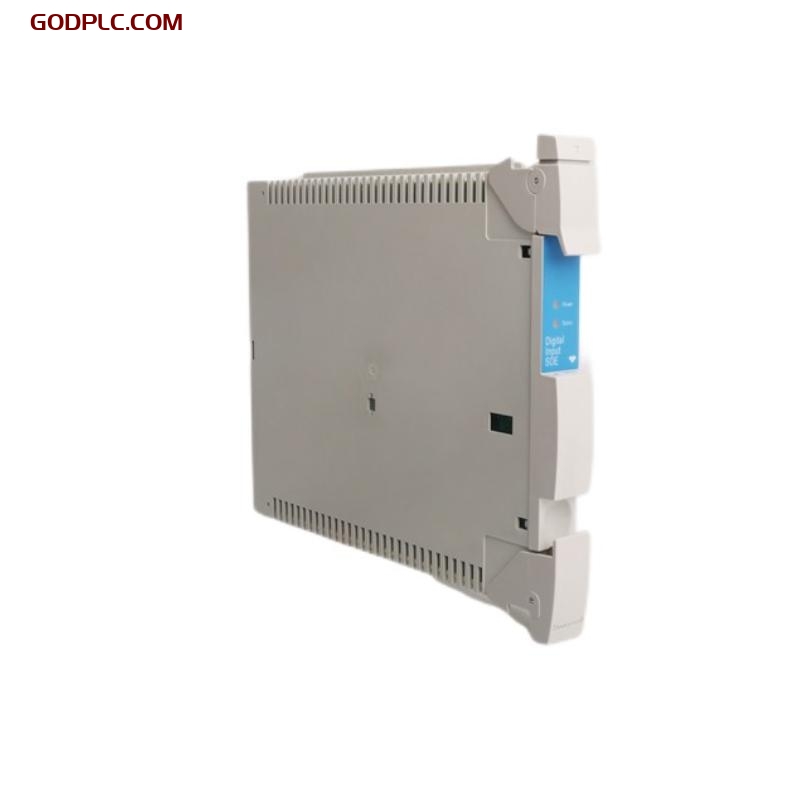

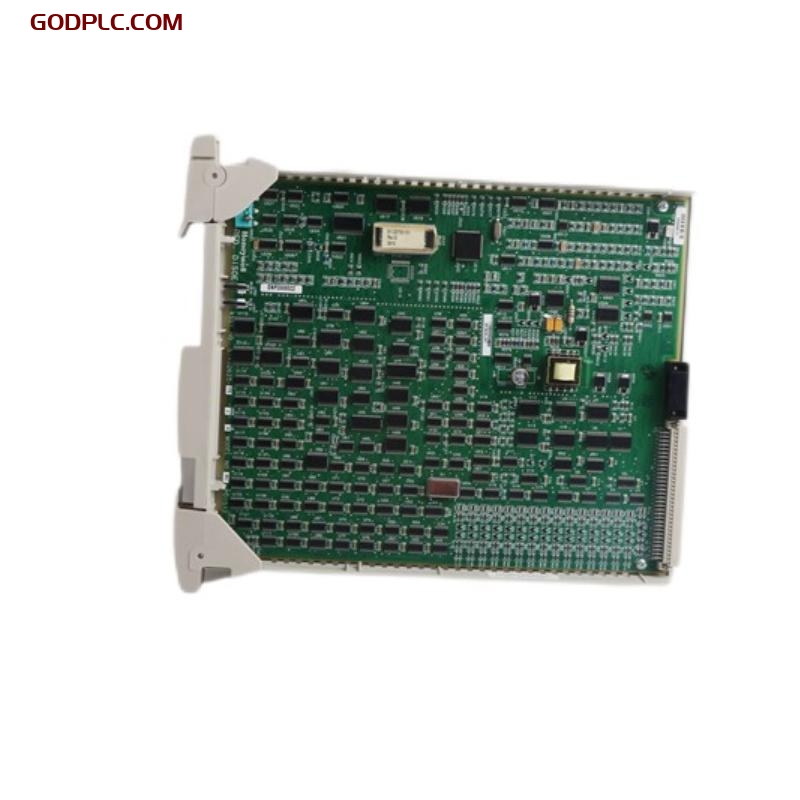

Honeywell MU-PDIS12 51402625-125 Digital Input Processor Card
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Honeywell MU-PDIS12 51402625-125 Digital Input Processor Card
__________________________________________________________________________________________
Product Overview
The Honeywell MU-PDIS12 51402625-125 Digital Input Processor Card is a key module in Honeywell’s TDC 3000 control system architecture, responsible for processing discrete input signals from field devices. It converts these digital signals into a format usable by the system controller, ensuring accurate and efficient monitoring of plant operations. With robust reliability and real-time signal handling, the MU-PDIS12 enhances system responsiveness and is well-suited for mission-critical industrial environments.
Key Features
-
Digital Signal Processing: Accurately handles and interprets multiple discrete input signals.
-
High Compatibility: Seamlessly integrates into Honeywell TDC 3000 systems.
-
Compact Form Factor: Space-efficient design allows easy installation and maintenance.
-
Industrial Reliability: Built to operate in demanding industrial conditions with consistent performance.
-
Field Device Support: Interfaces with a wide range of digital field instruments such as switches and alarms.
-
System Diagnostics: Provides diagnostic feedback for system status and input signal integrity.
-
Extended System Life: Helps maintain legacy Honeywell system performance without major overhauls.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 370 x 260 x 300 mm |
| Weight | 1.21 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | MU-PDIS12 |
| Part Number | 51402625-125 |
| Module Type | Digital Input Processor Card |
| Installation | Mounted in processor chassis |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Channels | Supports multiple digital input points |
| Input Voltage | Compatible with TDC 3000 field I/O levels |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Cooling Method | Convection cooling |
| Isolation | Channel-to-system isolation |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell TDC 3000 |
| Configuration Tools | TDC 3000 Engineering Tools |
Industry Applications
-
Power Generation: Monitors switch positions, alarms, and trip signals in turbine control systems.
-
Petrochemical & Refining: Handles critical digital input monitoring from safety systems and interlocks.
-
Manufacturing: Used in machinery status tracking and interlock logic implementation.
-
Pharmaceuticals: Ensures reliable capture of digital signals in cleanroom and batch process controls.
-
Water Treatment: Supports plant-wide input status tracking from sensors and valves.
The Honeywell MU-PDIS12 51402625-125 Digital Input Processor Card provides robust and reliable digital signal processing within Honeywell’s TDC 3000 system, enabling efficient operation and extended lifecycle support for legacy control environments.
Honeywell MU-PDIS12 51402625-125 Digital Input Processor Card is in stock. Please contact us for a quick quote and competitive pricing.
