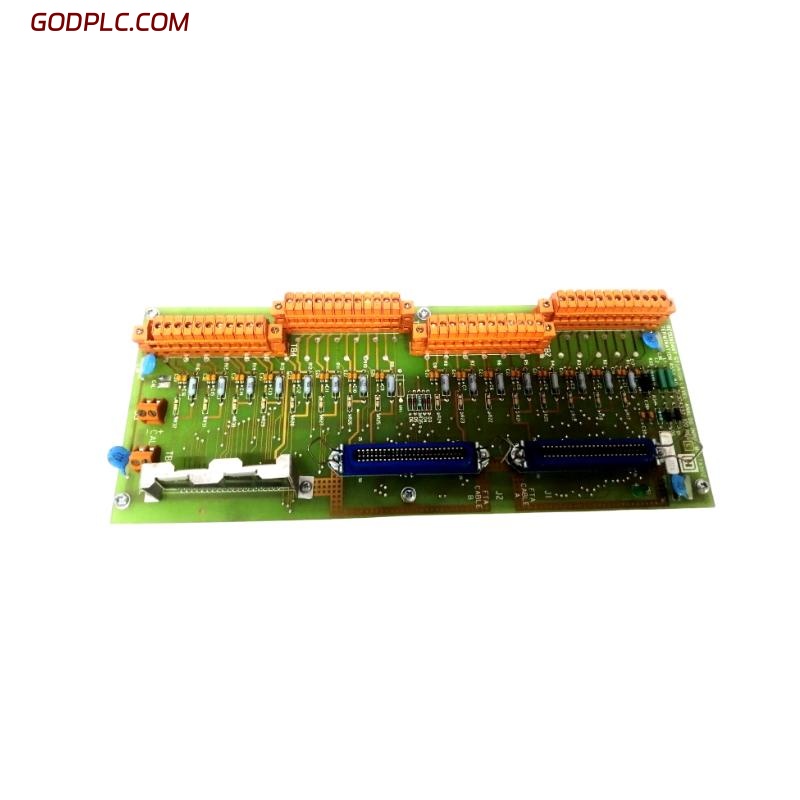

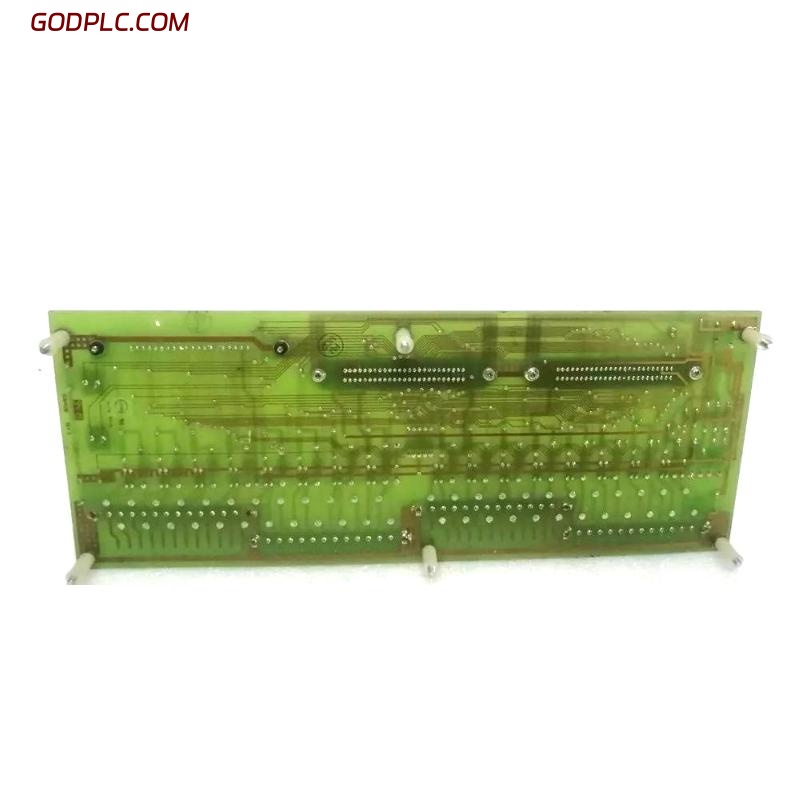

Honeywell MU-TAIH12 High-Level Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The MU-TAIH12 is a module designed for high-level analog input and smart transmitter interface applications in Honeywell DCS systems. It supports field transmitters’ input, including digital enhanced transmitter protocols, and is engineered for redundancy in mission-critical control environments. The module allows direct pass-through of instrument resolution and signal integrity during processor fail-over or module swap.
Key Features
-
16 high-level analog input channels in the redundant-capable version.
-
Supports Smart Transmitter Interface (STI) connection for digital enhanced (DE) protocol transmitters.
-
Resolution of the connected transmitter is preserved (no degradation of resolution).
-
During redundancy swap or failover: no scan cycles missed or delayed, and nominal accuracy unaffected.
-
Input protection: withstands voltages from –10 V to +30 V (no damage) on input referenced to common.
-
Resistor current limiting (145 Ω) for Class 1, Div 2 transmitter interfacing (in some FTA variants).
-
Designed for rugged industrial operation, suitable for redundant I/O configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | MU-TAIH12 |
| Number of Input Channels | 16 |
| Input Type | High-level analog input / Smart Transmitter Interface |
| Maximum Input Voltage (any input to common) | –10 V to +30 V (no damage) |
| Transmitter Broadcast Frequency (per channel) | 2.4 to 3.6 PVs per second (configuration-dependent) |
| Resistor Current Limiting (for Class 1 Div 2) | 145 Ω (not fused) |
| Redundancy Performance | No missed or delayed scan cycles during switch-over |
| Dimensions | Approx. 51.0 mm × 152.0 mm × 76.0 mm (W × D × H) |
| Weight | Approx. 0.20 kg |
| Operating Temperature Range | –20 °C to +70 °C |
| Mounting / Format | FTA module for Honeywell I/O system |
Honeywell MU-TAIH12 High-Level Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
