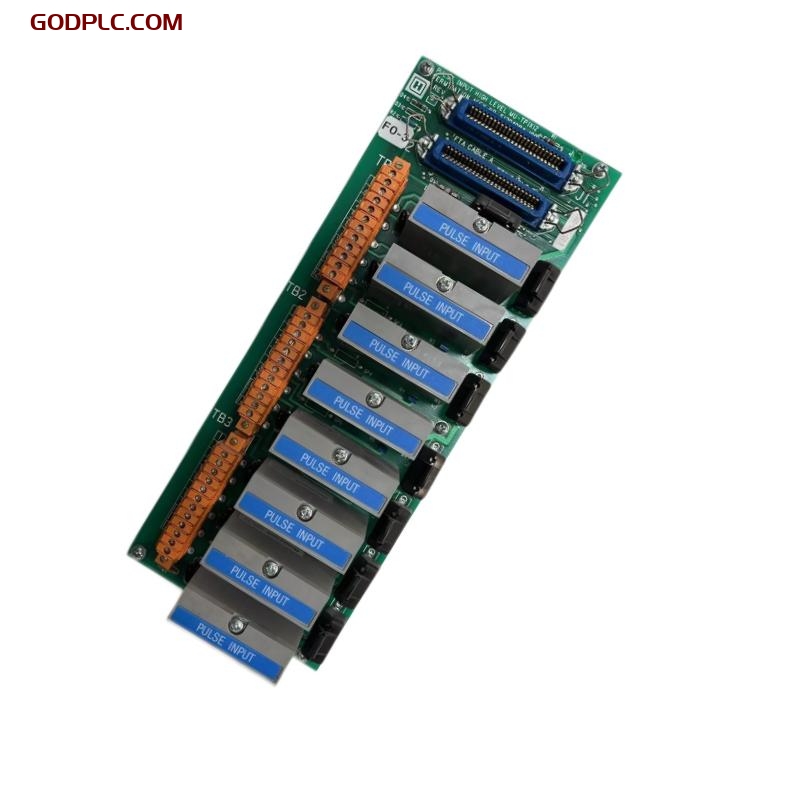

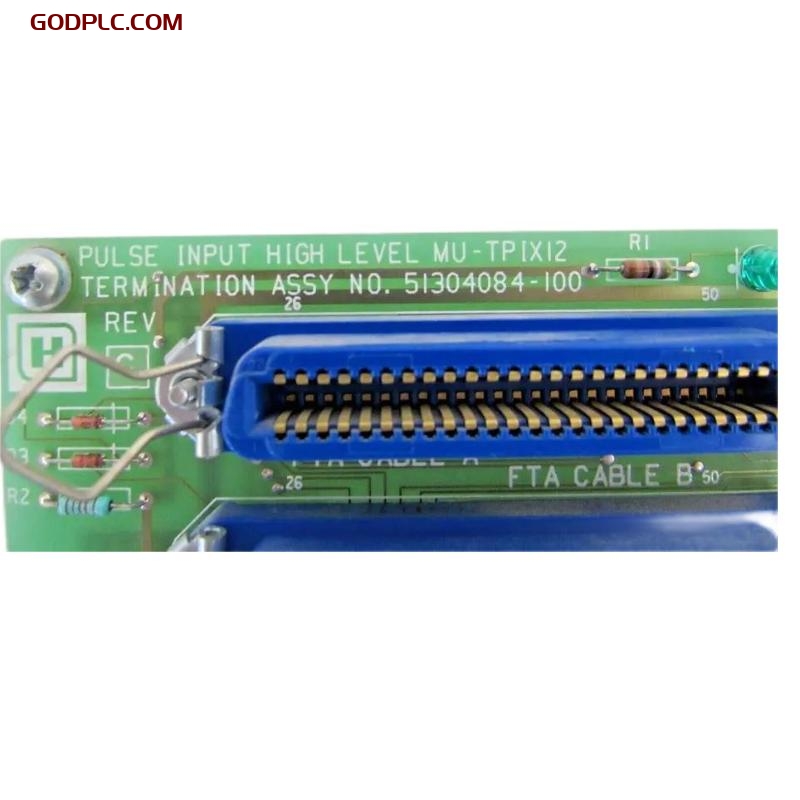

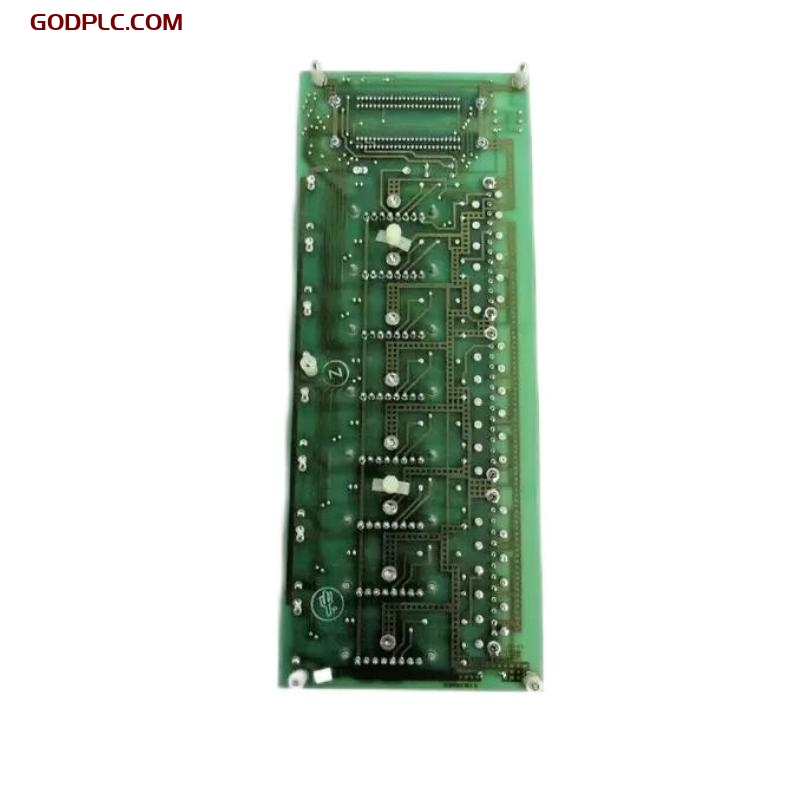

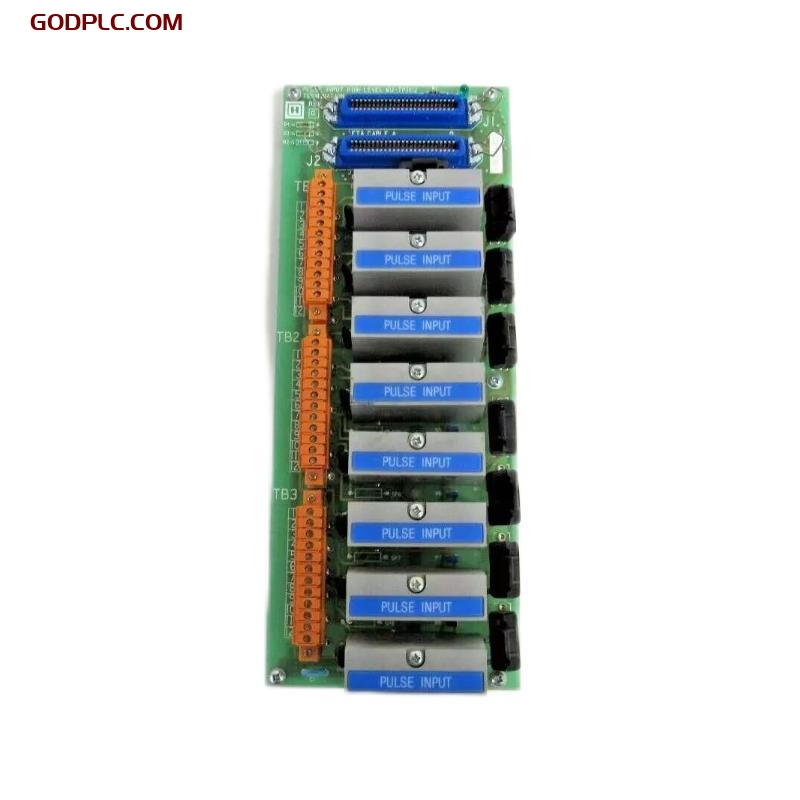

Honeywell MU-TPIX12 51304084-100 Pulse Input Field Termination Assembly
Product Overview
The Honeywell MU-TPIX12 51304084-100 Pulse Input Field Termination Assembly is designed to provide reliable and precise signal termination for pulse input devices in industrial automation systems. This termination assembly offers a straightforward and efficient solution for interfacing with field devices that require pulse input, ensuring reliable and accurate data transmission to the control systems.
The MU-TPIX12 module is engineered to work seamlessly with Honeywell’s automation systems, offering a robust design for industrial environments where reliability and uptime are critical. Its high-quality construction and user-friendly design make it an essential component for applications that demand consistent and precise control of pulse signals.
Key Features
-
Precise Signal Termination: Ensures accurate signal transfer and reliable data transmission to the control system.
-
Wide Compatibility: Compatible with a range of pulse input devices and Honeywell control systems.
-
Durable Construction: Built to withstand the rigors of industrial environments, ensuring long-term reliability.
-
Easy Installation: Designed for straightforward field installation, reducing downtime and simplifying maintenance.
-
Flexible Configuration: Allows for custom setups to meet specific industrial application needs.
-
Clear Status Indicators: Equipped with LEDs to indicate the operational status and health of the termination assembly.
-
Compact Design: Ideal for space-constrained environments, offering efficient use of panel or rail space.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 × 150 × 30 mm |
| Weight | 0.5 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | MU-TPIX12 51304084-100 |
| Manufacturer | Honeywell |
| Installation | Panel Mount / DIN Rail |
| Operating Temp | -20°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Performance Characteristics
| Item | Specification |
|---|---|
| Input Signal Type | Pulse Input |
| Signal Type | Digital |
| Termination Type | Field Termination |
| Output Connection | Terminal Blocks |
| Number of Inputs | 12 |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Range | 24 V DC ±10% |
| Power Consumption | Approx. 2 W |
| Status Indicators | LEDs for operational status |
| Isolation | Electrically isolated from control system |
Industry Applications
-
Process Control: Ensures reliable pulse signal transmission for controlling industrial processes such as flow measurement, batch processes, and other continuous processes.
-
Manufacturing: Supports precise signal termination for automated systems, ensuring that pulse input devices communicate effectively with control systems.
-
Energy & Power Generation: Ideal for pulse input applications in energy systems, ensuring accurate data collection for power monitoring and control.
-
Water Treatment: Provides reliable signal termination for water treatment systems where pulse inputs are used for flow measurement and level monitoring.
-
Building Automation: Used for precise control and monitoring in HVAC systems, where pulse signals are integral for accurate measurement and system regulation.
The Honeywell MU-TPIX12 51304084-100 Pulse Input Field Termination Assembly is a versatile and reliable solution for industrial applications requiring accurate signal processing and reliable data transmission. With its robust design, ease of installation, and broad compatibility, it is an essential component in enhancing control and automation systems.
Honeywell MU-TPIX12 51304084-100 Pulse Input Field Termination Assembly is in stock. Please contact us for a quick quote and competitive pricing.
