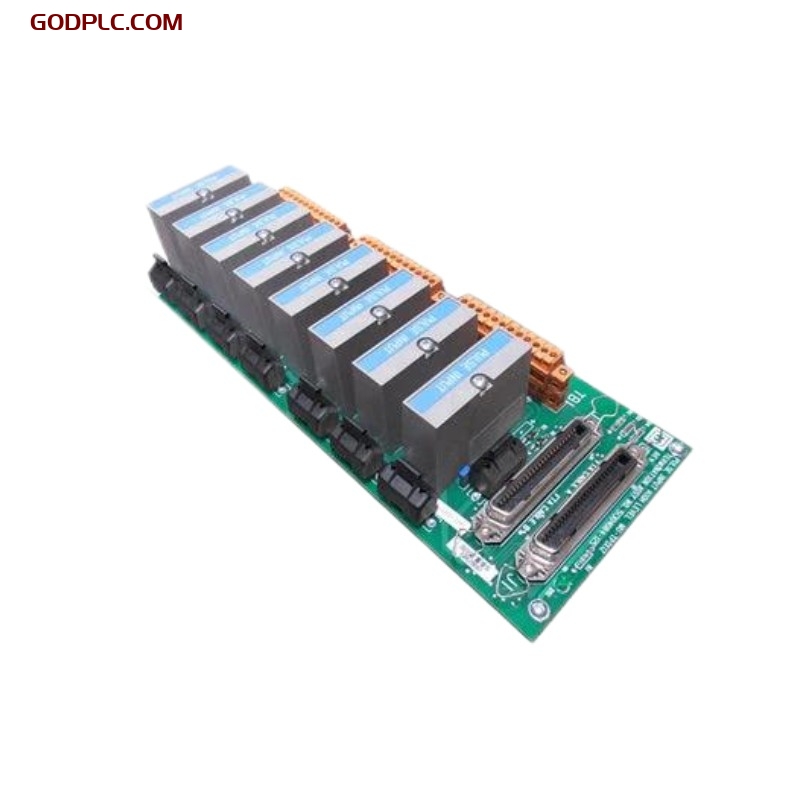

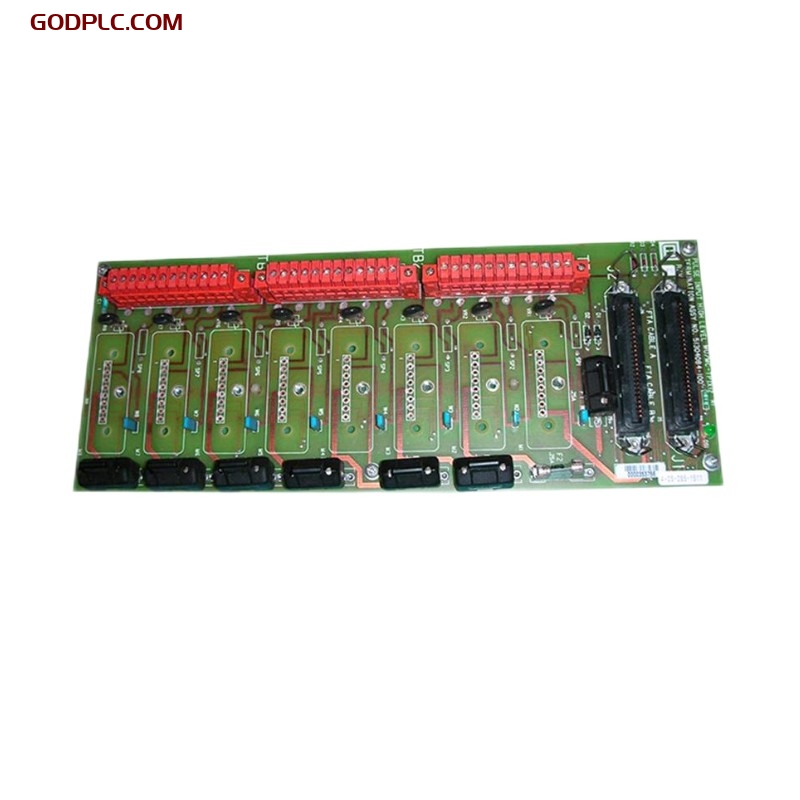

Honeywell MU-TPIX12 51304084-125 Pulse Input Field Termination Assembly
Product Overview
The Honeywell MU-TPIX12 51304084-125 Pulse Input Field Termination Assembly is designed to provide accurate and reliable signal termination for pulse input devices in industrial control systems. This module ensures seamless communication between field devices and control systems, offering a secure and stable connection for pulse signals. Its high-quality construction and user-friendly design make it ideal for a wide range of industrial applications that require precise pulse input handling.
The MU-TPIX12 module is engineered for robust performance in industrial environments, ensuring optimal uptime and reliability. It is fully compatible with Honeywell’s automation systems, making it a key component in improving data integrity and system functionality in industrial processes.
Key Features
-
Reliable Signal Termination: Ensures accurate and stable signal transfer, essential for reliable system operation.
-
Wide Compatibility: Works seamlessly with Honeywell control systems and a variety of pulse input devices.
-
Durable Design: Built for harsh industrial environments, providing long-lasting reliability and performance.
-
User-Friendly Installation: Simple field installation, reducing setup time and maintenance efforts.
-
Flexible Configuration: Offers customizable setups to fit specific requirements in various industrial applications.
-
Clear Status Monitoring: Equipped with LED indicators to show real-time operational status, providing visibility into system health.
-
Compact and Efficient: Ideal for installations with space constraints, maximizing available panel or rail space.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 × 150 × 30 mm |
| Weight | 0.5 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | MU-TPIX12 51304084-125 |
| Manufacturer | Honeywell |
| Installation | Panel Mount / DIN Rail |
| Operating Temp | -20°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Performance Characteristics
| Item | Specification |
|---|---|
| Input Signal Type | Pulse Input |
| Signal Type | Digital |
| Termination Type | Field Termination |
| Output Connection | Terminal Blocks |
| Number of Inputs | 12 |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Range | 24 V DC ±10% |
| Power Consumption | Approx. 2 W |
| Status Indicators | LEDs for operational status |
| Isolation | Electrically isolated from control system |
Industry Applications
-
Process Control: Provides reliable pulse signal transmission for process control applications such as flow measurement, level monitoring, and other automated systems.
-
Manufacturing: Facilitates communication between pulse input devices and control systems in automated manufacturing processes.
-
Energy & Power Generation: Ideal for use in pulse input-based applications within power plants and energy management systems.
-
Water Treatment: Ensures stable signal transmission for control and monitoring in water treatment processes, including flow and level measurement.
-
Building Automation: Used in building systems for HVAC control and energy monitoring, where pulse input signals are critical for accurate system management.
The Honeywell MU-TPIX12 51304084-125 Pulse Input Field Termination Assembly is a versatile, reliable, and efficient solution for handling pulse input signals in industrial automation systems. Its rugged construction, flexible configuration options, and ease of installation make it an indispensable component in maintaining the integrity and performance of control systems.
Honeywell MU-TPIX12 51304084-125 Pulse Input Field Termination Assembly is in stock. Please contact us for a quick quote and competitive pricing.
