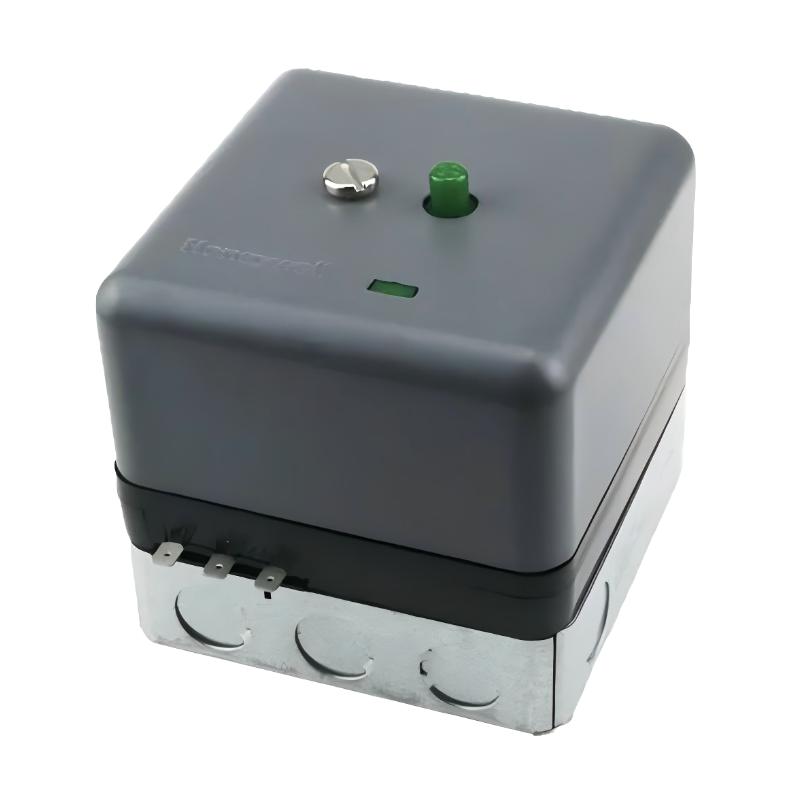

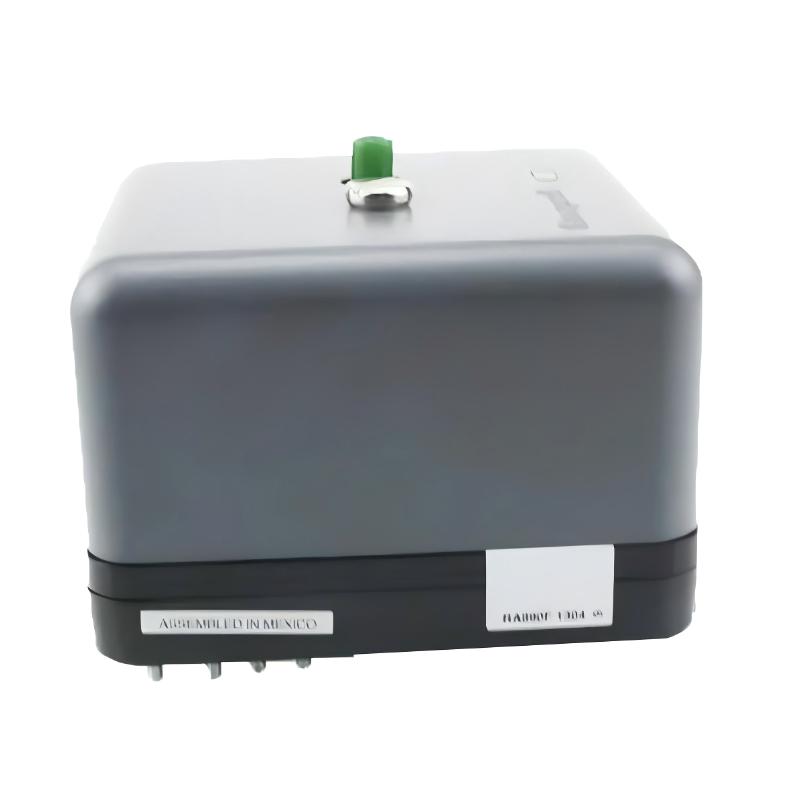

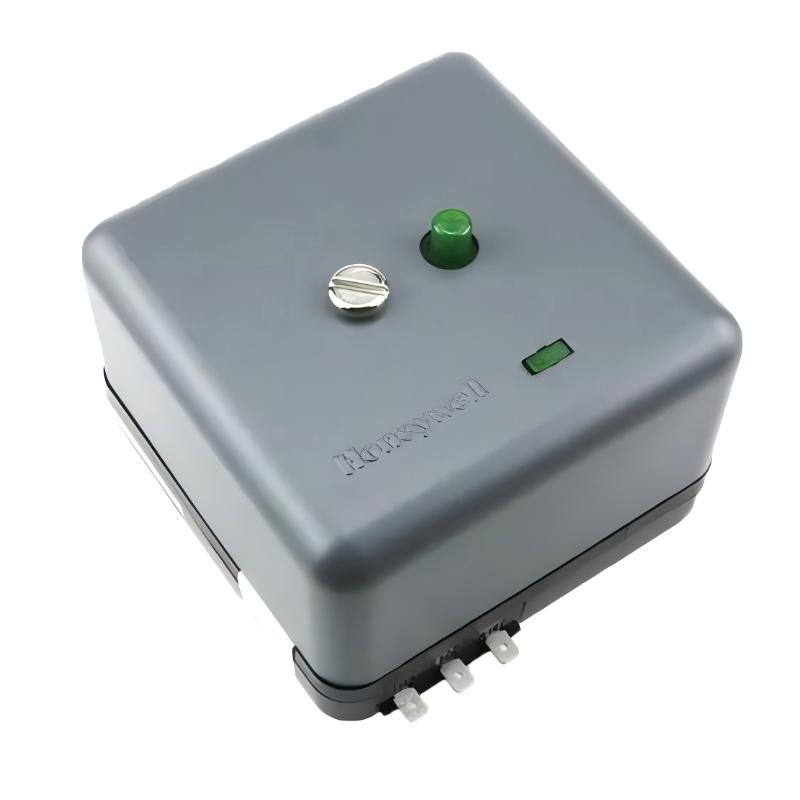

Q1: What is the primary function of the Honeywell RA890G1245 Protection Relay?

A1: The Honeywell RA890G1245 Protection Relay is designed to provide safety interlocking and protection control within burner management and combustion systems. Its main function is to monitor operating conditions and initiate a safe shutdown when abnormal or unsafe conditions are detected. This ensures that industrial heating and combustion processes operate within defined safety limits, protecting both equipment and personnel.

Q2: Where is this protection relay typically used?

A2: This relay is commonly used in industrial burner systems, boilers, furnaces, and other combustion-based heating equipment. It is widely applied in industries such as oil and gas, petrochemicals, power generation, and industrial manufacturing facilities where controlled combustion processes are required for safe and efficient operation.

Q3: How does the RA890G1245 contribute to system safety?

A3: The relay continuously monitors safety signals from connected sensors and control devices. If it detects unsafe conditions such as flame failure, abnormal operating states, or system faults, it immediately triggers a protective shutdown. This rapid response helps prevent hazardous situations such as fuel accumulation, explosion risks, or equipment damage.

Q4: What happens when a fault condition is detected?

A4: When a fault condition is detected, the relay activates its safety trip function. This action interrupts the combustion process by shutting down fuel supply or disabling ignition systems. At the same time, it provides a fault indication signal to alert operators so that corrective actions can be taken before restarting the system.

Q5: Is this relay suitable for continuous industrial operation?

A5: Yes. The RA890G1245 is designed for continuous operation in demanding industrial environments. It is built with robust electromechanical components that ensure long-term reliability, even in applications where safety-critical monitoring is required around the clock.

Q6: What role does this relay play in burner management systems?

A6: In burner management systems, the relay acts as a critical safety interlock device. It ensures that ignition, fuel supply, and flame monitoring functions are properly coordinated. If any part of the combustion sequence is unsafe or out of sequence, the relay enforces a controlled shutdown to maintain safe operation.

Q7: Does the relay support system testing and maintenance?

A7: Yes. The relay design allows for periodic testing and verification of safety functions. This enables maintenance personnel to confirm that the protection logic and trip mechanisms are functioning correctly, which is essential for maintaining compliance with industrial safety standards.

Q8: Why is a protection relay important in combustion applications?

A8: Combustion systems involve flammable fuels and high-energy processes, which carry inherent safety risks. A protection relay acts as a final safety barrier that ensures unsafe conditions are detected and corrected immediately. Without such a device, system faults could lead to serious accidents, equipment damage, or operational hazards.
