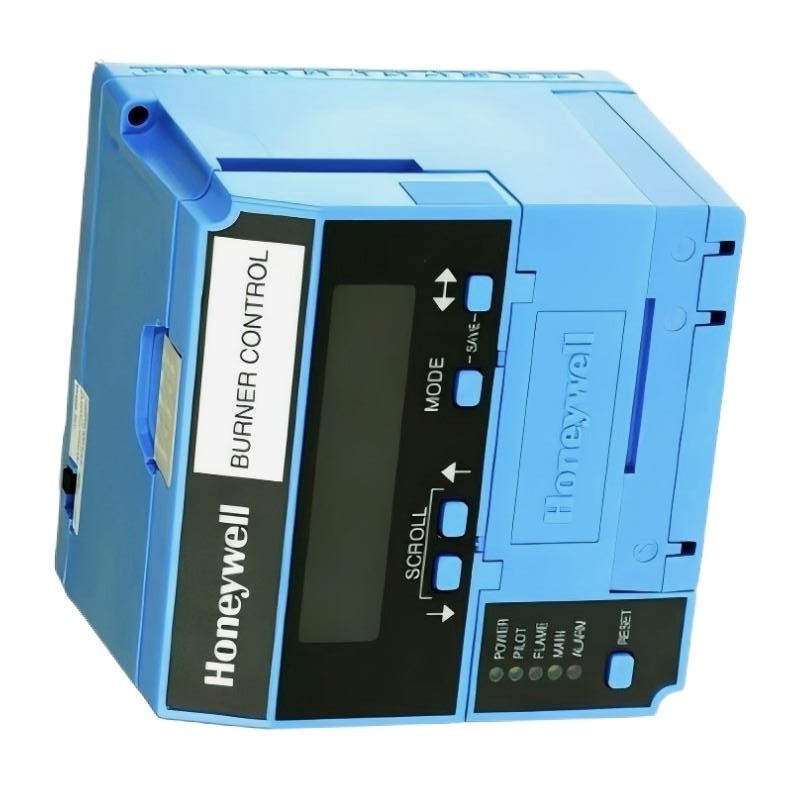

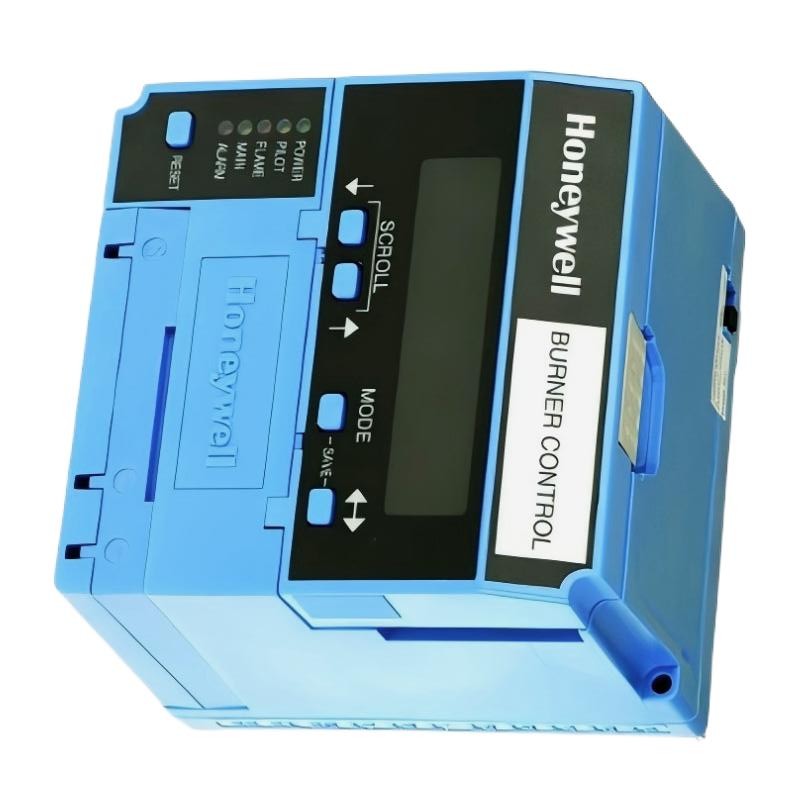

Honeywell RM7800G1018 Burner Control Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7800G1018 |
| Manufacturer | Honeywell |
| Product Type | Burner Control Unit |
| Series | 7800 Series Burner Management System |
| Function | Automatic burner sequencing, flame supervision, and safety control |
| Application | Industrial combustion and burner management systems |
| Control Logic | Microprocessor-based burner safety and sequence control |
| Supported Functions | Ignition control, fuel valve control, flame monitoring, lockout protection |
| Input Type | Flame detector signals, safety interlocks, system commands |
| Output Type | Relay and control outputs for burner actuation |
| Communication | Integrated system bus communication within 7800 series architecture |
| Safety Features | Flame failure shutdown, pre-purge/post-purge control, lockout protection |
| Diagnostics | Built-in status indication and fault diagnostics |
| Installation Method | Panel or control cabinet mounting |
| Operating Environment | Industrial burner and combustion control systems |
| Protection Design | Industrial-grade safety control architecture |
| Dimensions | 127 x 127 x 133 mm |
| Weight | 0.822 kg |
FAQ
1. What is the primary function of the Honeywell RM7800G1018 Burner Control Unit?
The RM7800G1018 is designed to manage burner sequencing and combustion safety within industrial systems. It controls ignition, fuel delivery, flame monitoring, and shutdown functions, ensuring that burner operation follows a safe and predefined sequence at all times.
2. What systems is this burner control unit compatible with?
This unit is part of the Honeywell 7800 Series burner management system and is designed to work within that ecosystem. It integrates with flame detectors, actuators, and safety interlock devices as part of a complete combustion control solution.
3. What safety functions does the module provide?
It provides critical safety functions such as flame failure detection, automatic shutdown (lockout), purge control before and after ignition, and continuous monitoring of burner operating conditions to prevent unsafe combustion events.
4. How does the burner sequencing process work?
The control unit follows a predefined logic sequence: system pre-check, pre-purge, ignition, flame establishment, and normal operation. If any unsafe condition is detected, the system immediately transitions to a safe shutdown state.
5. What types of inputs does the unit monitor?
It monitors flame sensor inputs, safety interlocks, and control commands from the burner management system. These inputs ensure that all operational conditions meet safety requirements before allowing burner activation.
6. What outputs does the control unit provide?
The unit provides relay-based control outputs that operate fuel valves, ignition systems, and other burner-related actuators. These outputs ensure precise control over combustion equipment.
7. Does the module include diagnostic capabilities?
Yes, it includes built-in diagnostics that provide real-time status indication, fault detection, and lockout condition reporting. This helps operators quickly identify issues such as flame failure or system interlock faults.
8. How are faults typically handled in this system?
When a fault is detected, such as flame loss or unsafe startup conditions, the system automatically initiates a lockout sequence. Operators must then investigate the cause, clear the fault condition, and reset the system according to safety procedures before restarting operation.
Honeywell RM7800G1018 Burner Control Unit is in stock. Please contact us for a quick quote and competitive pricing.
