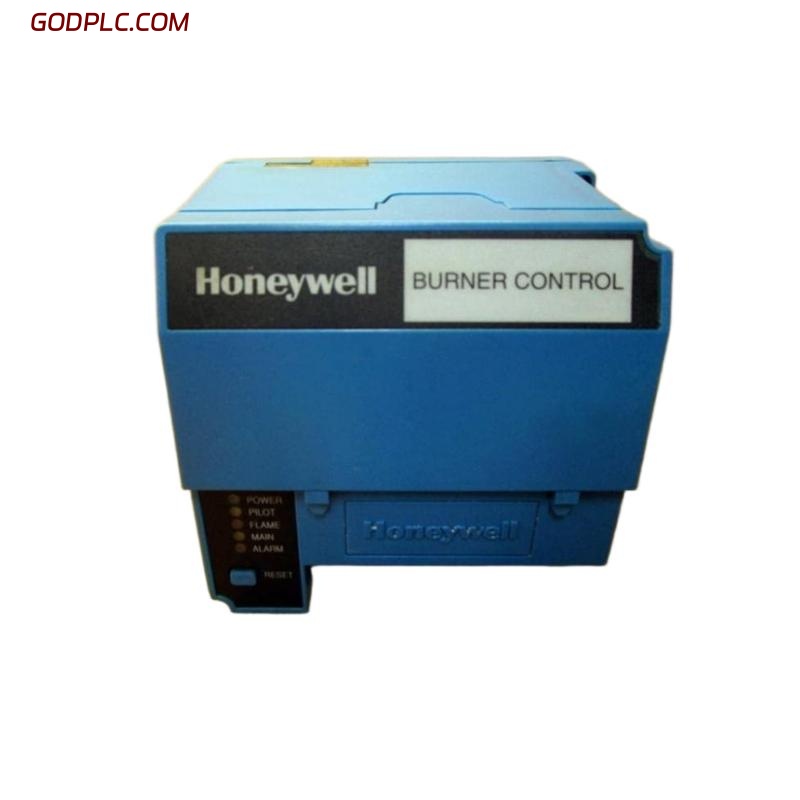

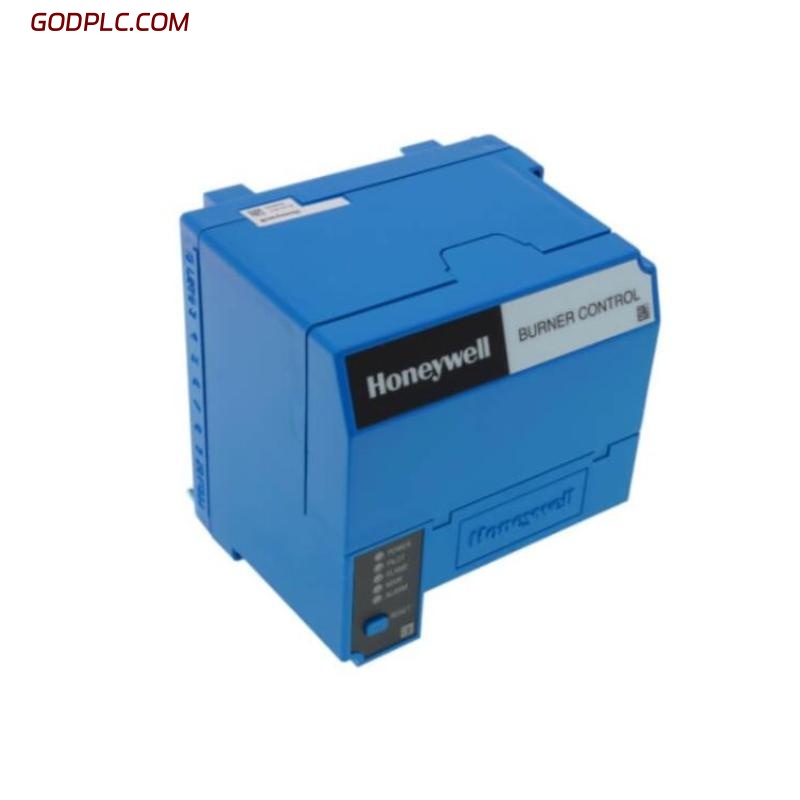

Honeywell RM7890A1031 Burner Module
Product Overview
The Honeywell RM7890A1031 is a microprocessor-based burner control module designed for managing and monitoring the startup, operation, and shutdown of gas, oil, or combination fuel burners. As part of the Honeywell 7800 Series, this burner control offers reliable flame safeguard protection for commercial and industrial burners. With plug-in compatibility, integrated diagnostics, and LED status indicators, the RM7890A1031 simplifies burner management and enhances system safety.
Key Features
-
Microprocessor-Based Control – Ensures accurate and repeatable sequencing, timing, and safety interlocks
-
Flame Monitoring – Compatible with Honeywell rectification or ultraviolet flame sensors
-
Intermittent Pilot Operation – Controls ignition for interrupted or intermittent pilot systems
-
LED Status Indicators – Provides real-time feedback for system status and fault conditions
-
Self-Diagnostics – Continuous internal checks for enhanced reliability and troubleshooting
-
Remote Communication Capability – Optional display and communication modules for remote monitoring
-
Plug-In Design – Easily replaceable module compatible with standard 7800 Series subbases
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 127 x 127 x 133mm |
| Weight | 0.8 kg |
Electrical Specifications
| Item | Specification |
|---|---|
| Supply Voltage | 120 V AC ±10%, 50/60 Hz |
| Power Consumption | 10 VA max |
| Pilot Duty Rating | 10 A @ 120 V AC |
| Main Valve Output | 9.8 A @ 120 V AC (resistive) |
| Alarm Output Rating | 2 A @ 120 V AC |
Functional Specifications
| Item | Specification |
|---|---|
| Type | Intermittent pilot burner control |
| Safety Shutdown Time | 4 seconds (flame failure response) |
| Prepurge Time | Set via amplifier or remote device |
| Run/Test Switch | Accessible via front panel |
| Flame Detection Methods | Rectification or UV |
| Compatible Amplifiers | R7847A, R7849A, R7851A, R7861A |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Humidity | 85% RH max at 40°C (non-condensing) |
| Enclosure Rating | NEMA 1 (with optional cover) |
Industry Applications
-
Boiler Control – For hot water or steam systems requiring flame safeguard
-
Industrial Furnaces – Monitors burner operation and provides safety interlock
-
Ovens and Kilns – Ensures reliable burner sequencing and protection
-
Incinerators – Controls flame presence and system shutdown under fault conditions
-
Combustion Systems – Used in any industrial process requiring burner control safety
The Honeywell RM7890A1031 Burner Module offers precise, safe, and reliable burner management for industrial and commercial combustion systems. Its microprocessor-based architecture, flexible flame sensing capabilities, and built-in diagnostics make it a dependable solution for flame safeguard and burner control operations.
Honeywell RM7890A1031 Burner Module New In Stock is in stock. Please contact us for a quick quote and competitive pricing.
