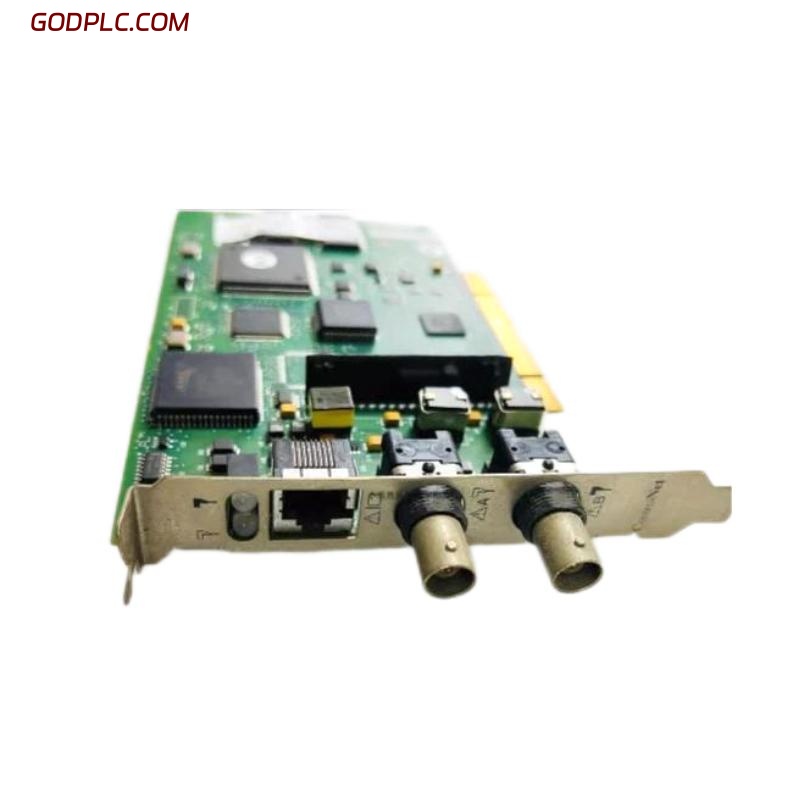

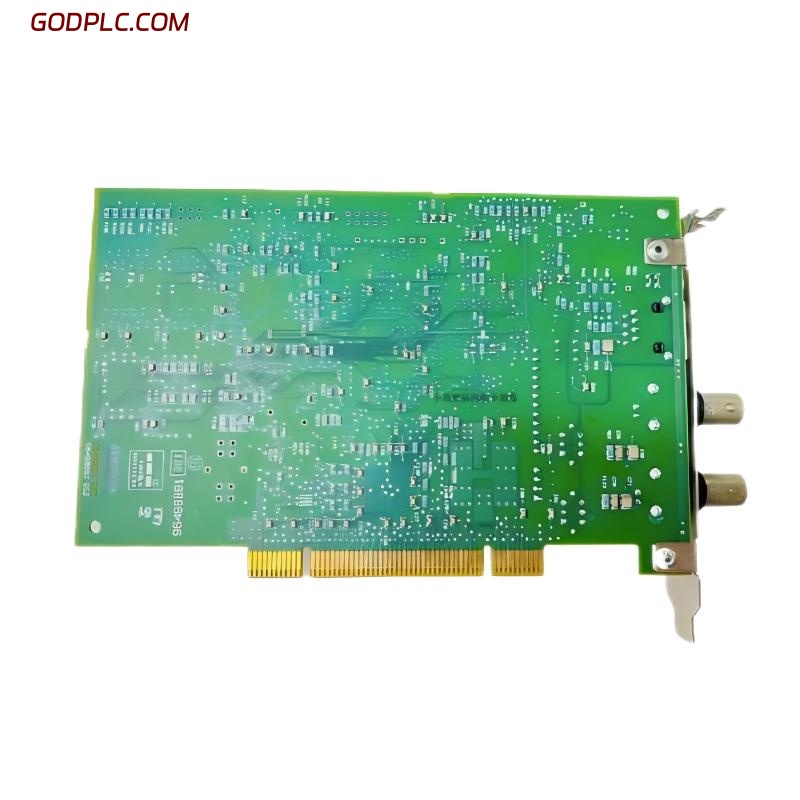

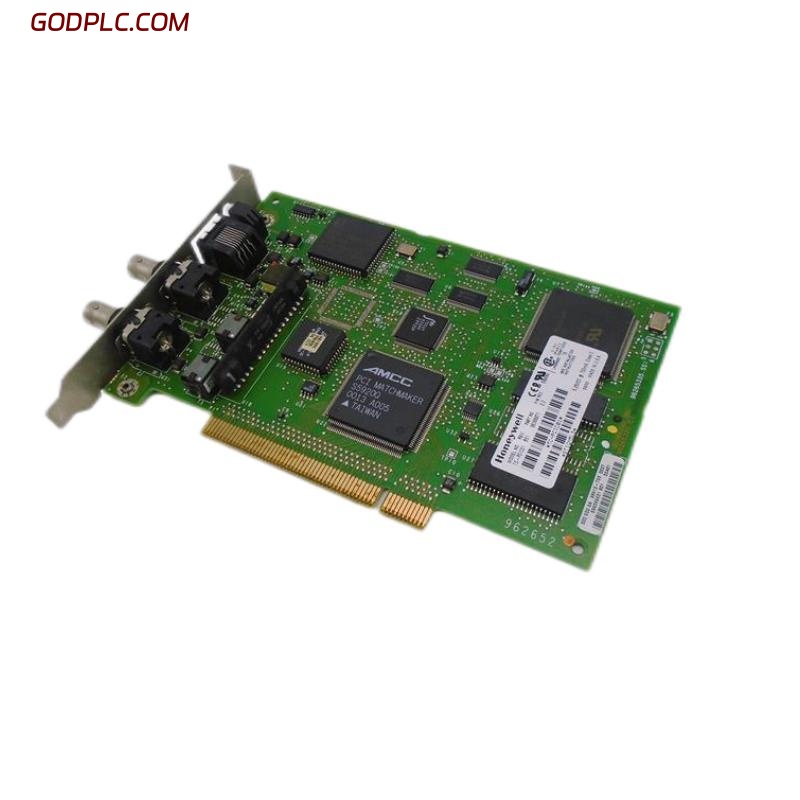

Honeywell TC-PCIC01K Experion LS Control Network Interface Card
Product Overview
The Honeywell TC-PCIC01K is a Control Network Interface Card (CNI) designed for use with Experion LS and Experion PKS systems. Installed in a standard PC’s PCI slot, the TC-PCIC01K enables communication between the system’s host workstation and the Fault Tolerant Ethernet (FTE) control network. It provides high-speed, deterministic network connectivity and is critical for ensuring reliable operation in distributed control systems (DCS).
This interface card is ideal for control node applications such as Engineering Workstations (EWS), Operator Workstations (OWS), and Application Servers, allowing seamless integration with Honeywell’s FTE infrastructure.
Key Features
-
Fault Tolerant Ethernet (FTE) Support – Enables redundant, high-reliability control networking
-
PCI Interface – Standard 32-bit PCI interface for compatibility with a wide range of industrial PCs
-
Deterministic Performance – Ensures real-time data exchange between controllers and operator stations
-
Experion LS/PKS Integration – Fully supported by Honeywell DCS platforms
-
Dual Ethernet Ports – Allows connection to both FTE channels for fault-tolerant operation
-
Low CPU Overhead – Optimized driver design minimizes processor usage
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 156 x 88 x 20mm |
| Weight | 0.34 kg |
Mechanical & Physical Characteristics
| Item | Specification |
|---|---|
| Interface Type | 32-bit PCI (3.3 V/5 V signaling) |
| Ports | 2 × RJ45 Ethernet Ports |
| Bracket | Standard PCI bracket with dual ports |
| Indicators | Link/activity LEDs per port |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 5 V from PCI bus |
| Power Consumption | < 5 W |
| Bus Speed | 33 MHz PCI |
| Wake-on-LAN | Supported |
Communication Specifications
| Item | Specification |
|---|---|
| Network Type | Ethernet (10/100 Mbps) |
| Protocol Support | Fault Tolerant Ethernet (FTE), TCP/IP |
| Redundancy | Dual-path communication via FTE |
| Driver Compatibility | Honeywell-supplied drivers for Windows |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5%–90% RH (non-condensing) |
| MTBF | > 100,000 hours |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell Experion LS, Experion PKS |
| Supported Nodes | EWS, OWS, Application Servers, HMIs |
| Software Requirements | Windows OS with Honeywell Experion drivers |
Industry Applications
-
Refining & Petrochemicals – Ensures fault-tolerant network communication between controllers and operator stations
-
Power Generation – Reliable interface for plant-wide HMI and SCADA systems
-
Chemical Manufacturing – High-integrity control network for safety and process optimization
-
Pharmaceuticals – Supports validated architectures requiring redundant communication
-
Pulp & Paper – Real-time process monitoring and control in distributed production environments
The Honeywell TC-PCIC01K Experion LS Control Network Interface Card is a vital communication bridge between Experion workstations and Honeywell’s FTE-based control systems. Its robust performance, redundant design, and seamless integration ensure high availability and data integrity for demanding industrial applications.
Honeywell TC-PCIC01K Experion LS Control Network Interface Card is in stock. Please contact us for a quick quote and competitive pricing.
