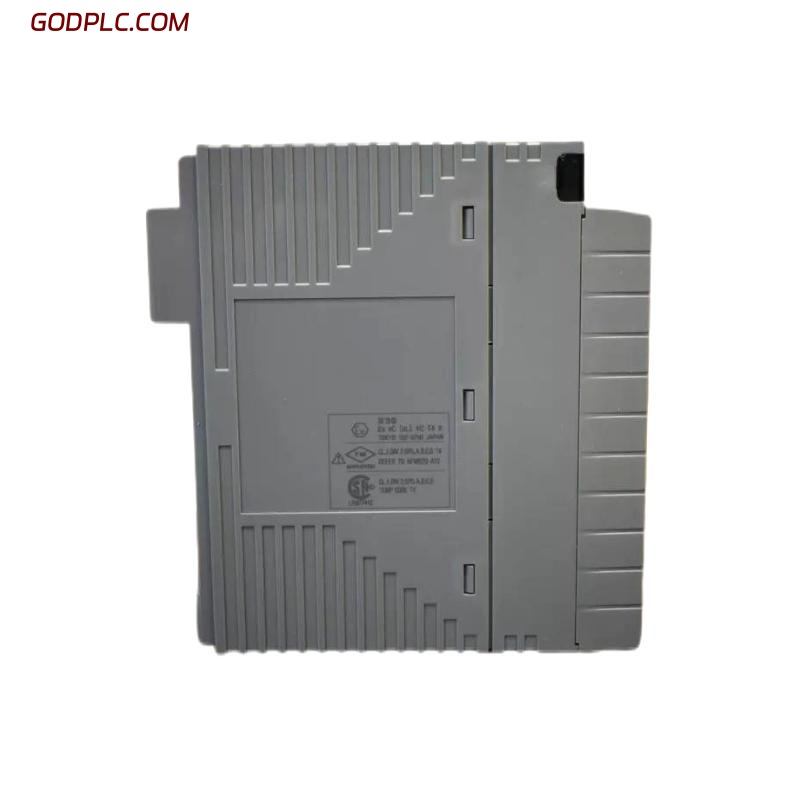

YOKOGAWA ADV151-P03 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ADV151-P03 is a 32-channel isolated 24 V DC digital input module designed for use in Yokogawa’s FIO (Field Input/Output) system architecture. The suffix “P” denotes support for pushbutton input (edge detection) in addition to standard status input function. The suffix “03” indicates internal option revision (for example ISA Standard G3 compliance and/or extended temperature version). This module enables high-density discrete input acquisition with strong isolation and reliable performance in industrial automation and process control systems.
Key Features
-
32 independent optically isolated digital input channels for 24 V DC signals.
-
Supports both status input (ON/OFF) and pushbutton input (edge detection) modes.
-
High noise immunity via input-to-system isolation.
-
Compact, lightweight design suitable for dense installation in control racks or panels.
-
Compatible with pressure clamp terminal blocks, dedicated cable or MIL connector interface.
-
Suitable for high-reliability, high-channel-count discrete input applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P03 |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source type) |
| Input ON Voltage | 18 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | 4.1 mA ±20 % |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Isolation Voltage (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Voltage (Common every 16 channels) | 500 V AC for 1 minute |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Pushbutton Input) | 20 ms |
| Maximum ON/OFF Cycle (Pushbutton Input) | 25 Hz |
| External Connections | Pressure clamp terminal / dedicated cable / MIL connector |
| Operating Temperature Range | −20 °C to +70 °C (option may apply) |
| Operating Humidity | 5 % to 95 % RH, non-condensing |
| Dimensions (H × D × W) | Approx. 107.5 mm × 130 mm × 32.8 mm (standard family) |
| Weight | Approx. 0.30 kg |
| Installation Location | Indoor control cabinet |
YOKOGAWA ADV151-P03 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
