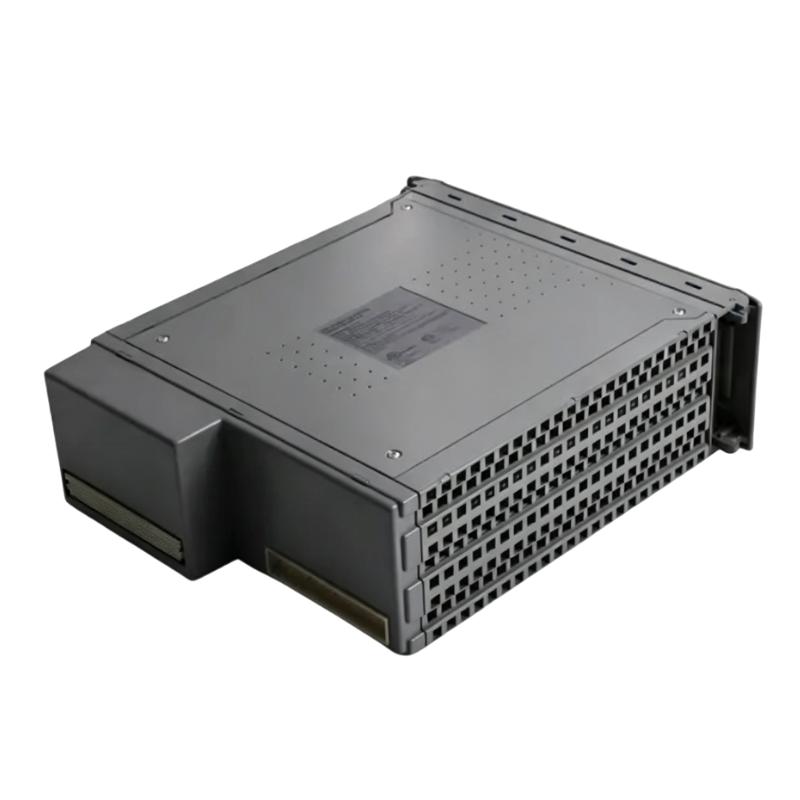

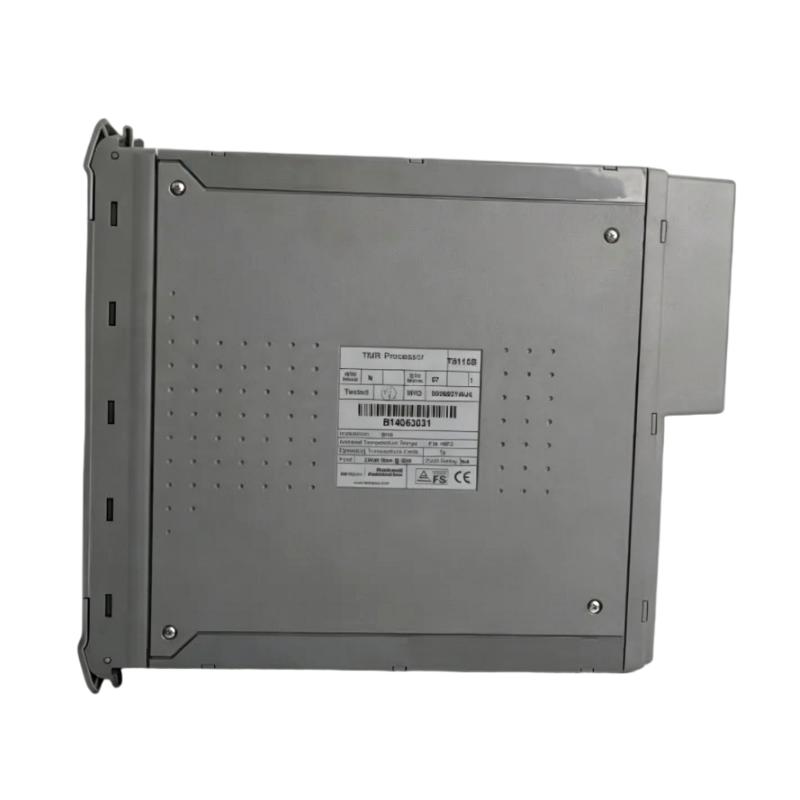

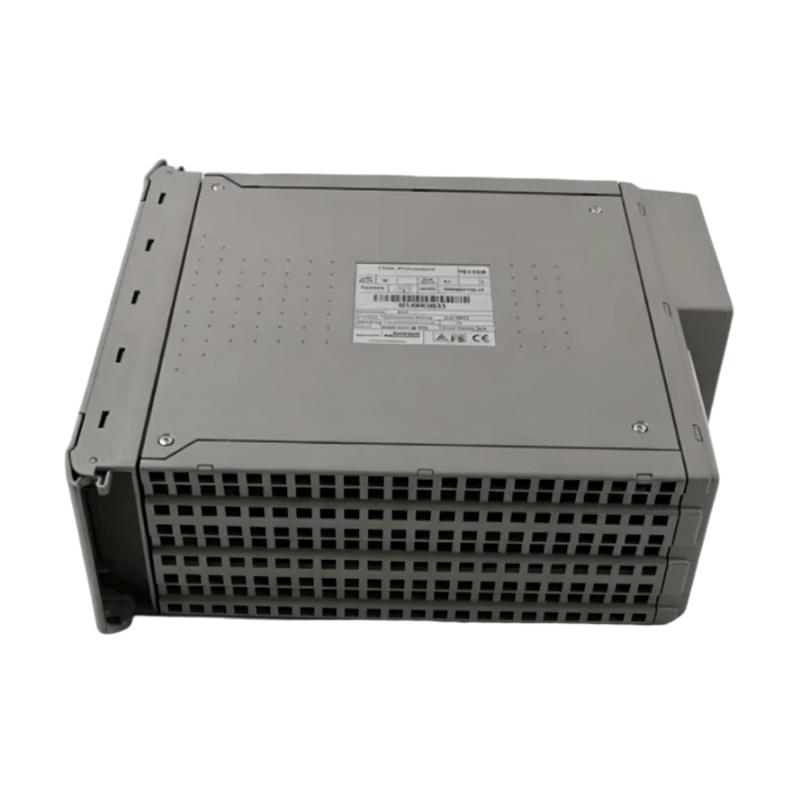

ICS T8110 Trusted TMR Processor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex |
| Product Family | Trusted |
| Model | T8110 |
| Product Type | Trusted TMR Processor Module |
| Primary Function | Main processor module for Trusted control systems |
| System Architecture | Triple Modular Redundant (TMR) |
| Processor Architecture | Three synchronized processor channels with hardware fault tolerance and 2oo3 voting |
| Processor Clock | 100 MHz |
| Operating Supply | 20–32 VDC |
| Maximum Power | 80 W |
| Maximum Heat Dissipation | 80 W |
| Compatible Chassis | Trusted T8100 Controller Chassis |
| DRAM | 16 MB EDO, 60 ns |
| EPROM | 512 KB |
| Flash Memory | 2 MB |
| NVRAM | 128 KB |
| Retained Variable Storage | 4 KB |
| Boolean Variable Storage | 1 byte per variable |
| Analog Variable Storage | 4 bytes per variable |
| Timer Variable Storage | 5 bytes per variable |
| SOE Buffer | 1000 events, with up to 4000 events buffered for transfer to the CI |
| I/O Interface | Triple-redundant Inter-Module Bus (IMB) |
| Programming Support | IEC 61131-3 programming languages |
| Diagnostic Interface | Front-panel RS232 serial diagnostic interface |
| Fault Handling | Automatic fault detection, fault processing, event recording and status monitoring |
| Time Synchronization | Supports Trusted system time synchronization functions |
| Redundancy Management | Active/Standby processor operation and fault switchover |
| Operating Temperature | 0°C to +60°C |
| Non-Operating Temperature | -25°C to +70°C |
| Relative Humidity | 10–95%, non-condensing |
| Installation | Installed in the processor slot of the Trusted T8100 chassis |
| Dimensions | 303 × 93 × 266 mm |
| Weight | 2.94 kg |
FAQ
1. What is the main function of the ICS Triplex T8110?
The ICS Triplex T8110 is a Trusted TMR Processor Module responsible for executing control applications, processing system logic, managing I/O data, and monitoring the operating status of the Trusted system.
2. Why does the T8110 use a TMR architecture?
The T8110 uses three synchronized processor channels that execute the same application and compare their results through a 2oo3 voting architecture. This allows the system to maintain control operation when one processor channel develops a fault.
3. What processor architecture is used in the T8110?
The T8110 uses a 100 MHz processor architecture with three independent processing channels. The channels operate synchronously as part of the Trusted Triple Modular Redundant system.
4. What is the operating power supply range of the T8110?
The T8110 operates from a 20–32 VDC supply and has a maximum power requirement of approximately 80 W. The associated Trusted chassis power system should be within the specified operating range.
5. What memory resources are available in the T8110?
The T8110 provides 16 MB of 60 ns EDO DRAM, 512 KB EPROM, 2 MB Flash memory and 128 KB NVRAM. It also provides dedicated storage for retained variables and other application data.
6. How does the T8110 communicate with Trusted I/O modules?
The processor communicates with Trusted I/O modules through the triple-redundant Inter-Module Bus (IMB). The redundant bus structure provides reliable data exchange between the processor and system I/O modules.
7. How can a T8110 processor fault be diagnosed?
Diagnosis can be performed using the front-panel status indicators and RS232 diagnostic interface, together with Trusted system diagnostics and fault records. Processor channel status and Active/Standby information can also help identify the affected processing channel.
8. What should be checked when replacing an ICS Triplex T8110?
Before replacement, verify the system operating state, processor redundancy status and applicable maintenance procedures. After installing the replacement module, check TMR channel consistency, processor status, I/O communication and system diagnostic information before returning the system to normal operation.
ICS T8110 Trusted TMR Processor Module is in stock. Please contact us for a quick quote and competitive pricing.
