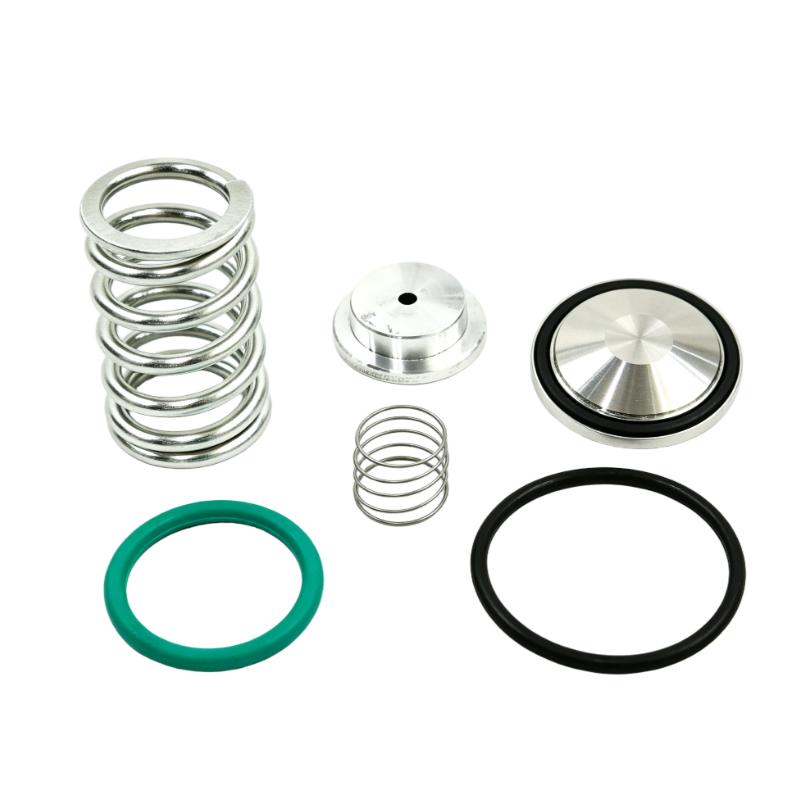

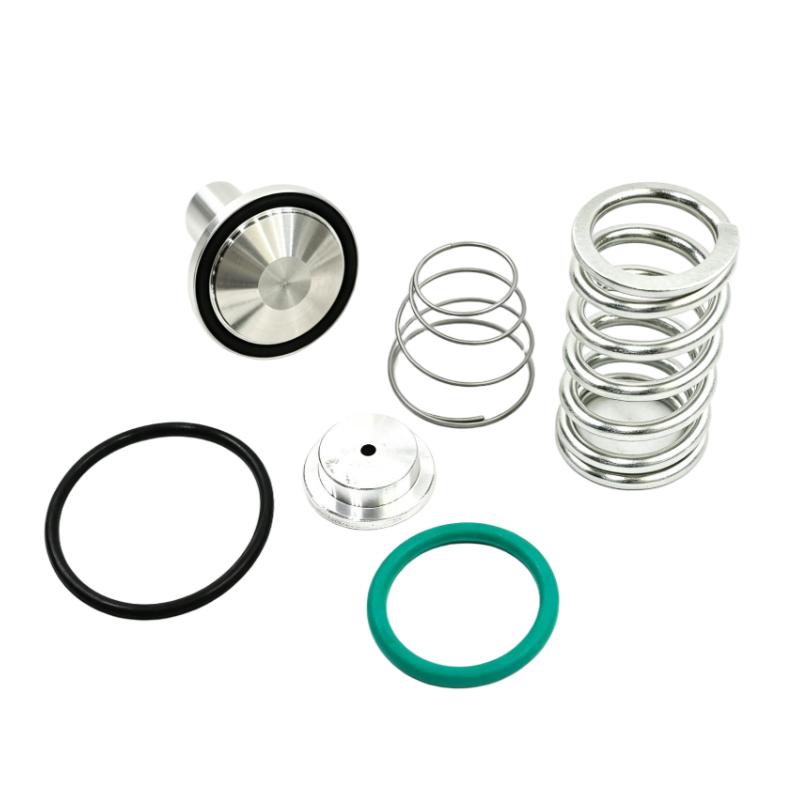

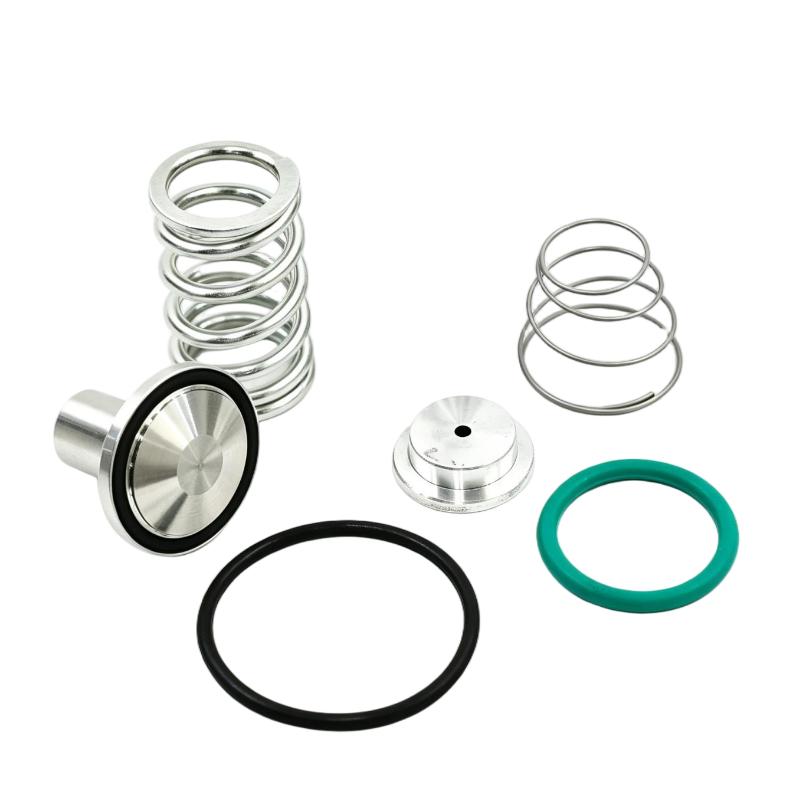

Ingersoll Rand 24509200 Minimum Pressure Valve Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Ordering Number | 24509200 |
| Product Type | Minimum Pressure Valve Kit |
| Component Category | Compressor Pressure Control and Check Valve Service Kit |
| Application | Industrial Rotary Screw Air Compressors |
| Compatible Equipment | Ingersoll Rand RS30–RS37i/n series, subject to configuration verification |
| Primary Function | Maintains minimum pressure in the compressor system and supports proper oil circulation |
| Valve Function | Minimum pressure regulation and reverse-flow prevention |
| Installation Location | Compressor oil separator / pressure vessel assembly, depending on model |
| Main Maintenance Purpose | Servicing or replacing components of the minimum pressure valve assembly |
| Kit Contents | Confirm the included components against the equipment-specific parts list |
| Installation Type | Maintenance and replacement kit |
| Compatibility Verification | Check compressor model, serial number, and parts documentation before ordering |
| Maintenance Requirement | Follow the manufacturer’s service and pressure-release procedures |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.1 kg |
FAQ
Q1: What is the main function of the Ingersoll Rand 24509200 minimum pressure valve kit?
The Ingersoll Rand 24509200 is a minimum pressure valve service kit for compatible rotary screw compressors. The valve assembly helps maintain the required pressure in the separator vessel during operation, supporting oil circulation and stable compressor performance.
Q2: Which compressors are compatible with the 24509200 kit?
The part is listed for selected Ingersoll Rand RS30–RS37i/n compressor configurations. Compatibility may vary with equipment version and serial number. Confirm the ordering number against the compressor’s parts manual before purchasing or installing the kit.
Q3: Why is a minimum pressure valve important in a rotary screw compressor?
The valve maintains sufficient pressure in the separator vessel to support the oil circuit and proper separation performance. It also helps prevent reverse airflow when the compressor stops. A malfunctioning valve can affect pressure stability, lubrication, and overall compressor operation.
Q4: What symptoms may indicate a faulty minimum pressure valve?
Common symptoms include slow pressure buildup, unstable operating pressure, reduced compressed-air output, abnormal oil circulation, or elevated discharge temperature. These symptoms can also be caused by a blocked separator, oil-system problems, or other control faults, so diagnosis should include the complete pressure and lubrication system.
Q5: When should the minimum pressure valve kit be replaced?
Replacement timing depends on the compressor’s maintenance schedule, operating conditions, and the valve’s condition. Replace or service the assembly when inspections or diagnostic results indicate sticking, leakage, damaged sealing surfaces, or failure to maintain the required pressure. Follow the equipment manufacturer’s maintenance instructions.
Q6: What should be inspected before installing the 24509200 kit?
Verify the part number and compressor compatibility. Inspect the valve body, spring mechanism, sealing surfaces, and associated connections for wear, contamination, or damage. Confirm the kit contents and prepare any additional seals or components required by the equipment-specific service procedure.
Q7: Can a defective minimum pressure valve increase compressor energy consumption?
Yes. A valve that restricts airflow or fails to regulate pressure correctly can cause abnormal pressure conditions and reduce system efficiency. If it affects oil circulation, it may also contribute to higher operating temperatures and additional maintenance needs. Check valve operation alongside separator condition and system pressure readings.
Q8: What safety precautions are required when replacing the minimum pressure valve kit?
Stop the compressor, isolate the electrical supply, and follow lockout/tagout procedures. Allow hot components to cool and fully release stored pressure before opening the pressure vessel or removing the valve assembly. Install the replacement according to the manufacturer’s instructions, then check for leaks and verify normal pressure control before returning the compressor to service.
Ingersoll Rand 24509200 Minimum Pressure Valve Kit is in stock. Please contact us for a quick quote and competitive pricing.
