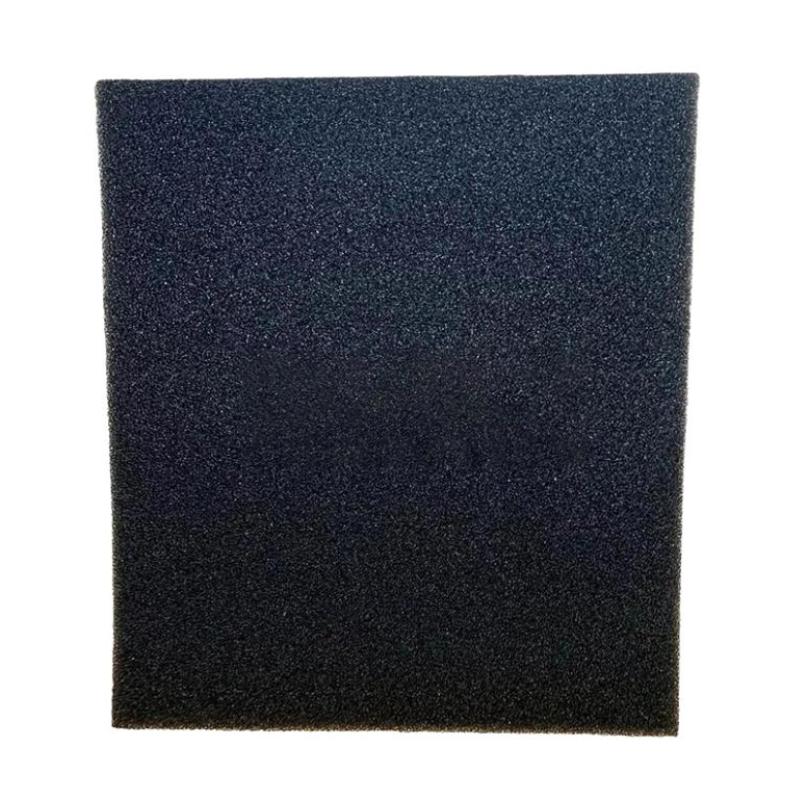

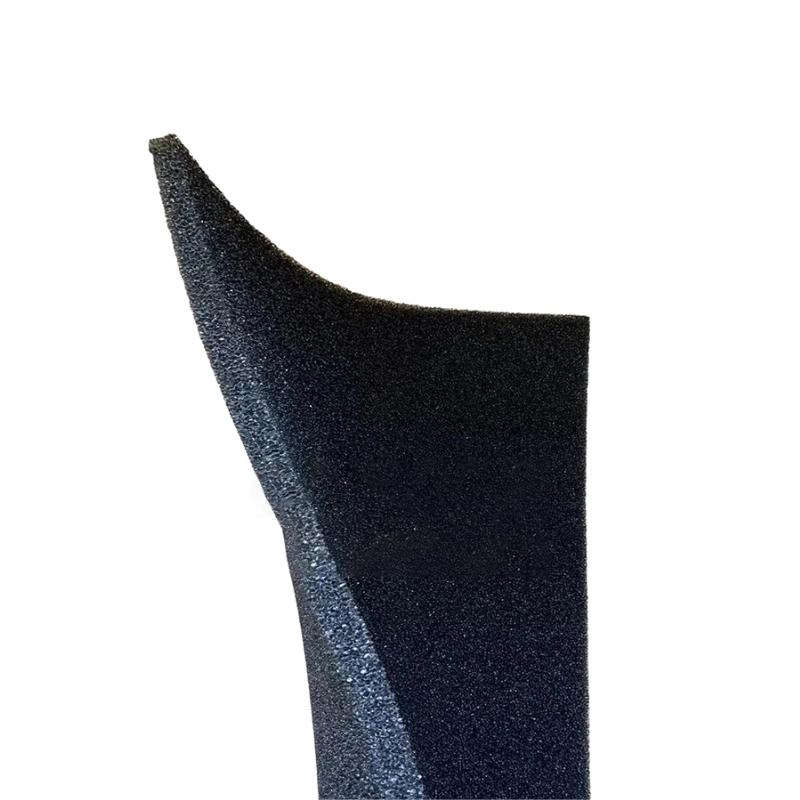

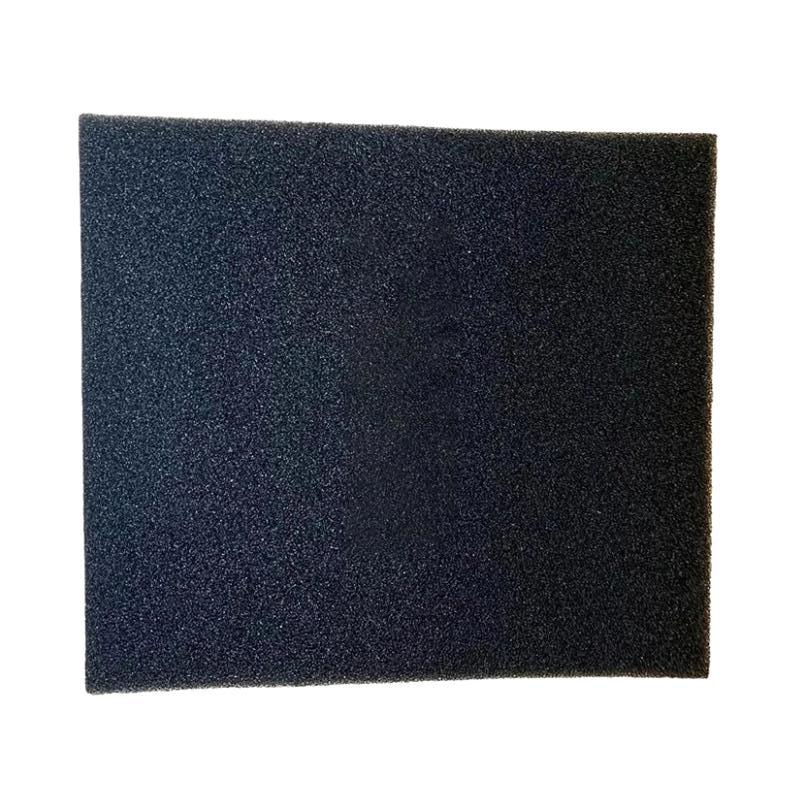

1. What is the Ingersoll Rand 47627049001 22053722 Pre-Filter?
The Ingersoll Rand 47627049001 is a pre-filter component identified by ordering number 22053722. It is installed in the compressor air-intake path to provide an initial filtration stage before incoming air reaches the compressor cabinet and the primary air filtration system. By removing a portion of the dust and airborne contamination at the intake stage, the pre-filter helps maintain a cleaner internal compressor environment and reduces the contamination load placed on downstream filtration components.

2. What is the difference between model 47627049001 and ordering number 22053722?
47627049001 is the model or product identification number provided for the component, while 22053722 is the corresponding ordering number used for purchasing and replacement identification. When ordering a replacement, both numbers can be used together to reduce the risk of selecting an incorrect filter component, especially when several pre-filter configurations are available for different Ingersoll Rand compressor models.

3. What is the main function of the 22053722 Pre-Filter?
The main function of the 22053722 Pre-Filter is to provide preliminary filtration of the air entering the compressor. It captures dust, dirt, fibers, and relatively large airborne particles before they reach the main air filter and compressor enclosure. This two-stage approach helps reduce the amount of contamination entering the equipment and can help maintain more stable airflow through the compressor intake system.

4. Which Ingersoll Rand compressors can use the 22053722 Pre-Filter?
The 22053722 pre-filter is associated with Ingersoll Rand rotary screw compressor applications, including commonly referenced UP6 Series configurations. However, compressor configurations can vary by model, horsepower, cooling arrangement, and production version. Before installation, the compressor model and existing parts information should therefore be checked against the applicable parts documentation to confirm that 22053722 is the correct replacement.

5. How does a pre-filter help extend the service life of the main air filter?
A pre-filter removes a portion of the larger airborne contaminants before they reach the primary air filter. This reduces the amount of dust and debris accumulated by the main filter during normal operation. In dusty industrial environments, this preliminary filtration can be particularly useful because excessive contamination of the primary filter can increase airflow resistance and place additional load on the compressor intake system.

6. What type of contamination can the 47627049001 pre-filter remove?
The pre-filter is intended for preliminary removal of airborne contaminants such as dust, dirt, fibers, and larger particulate matter. It is not intended to replace the compressor’s primary air filtration element. Its role is to provide an additional filtration stage that reduces the quantity of contamination reaching the main filter and compressor cabinet.

7. When should the Ingersoll Rand 22053722 Pre-Filter be inspected or replaced?
Inspection should be performed according to the compressor maintenance schedule and adjusted according to the operating environment. Equipment operating in dusty workshops, manufacturing plants, construction areas, or other contaminated environments may require more frequent inspection. Heavy dirt accumulation, restricted airflow, damaged filter media, deformation, or poor seating in the filter housing are signs that the pre-filter should be cleaned or replaced as appropriate.

8. What should be checked when installing a replacement 22053722 Pre-Filter?
Before installation, confirm that the replacement part number matches the compressor configuration and inspect the filter housing for accumulated dust or debris. The mounting surface should be clean, and the filter should be positioned correctly without folds, gaps, excessive compression, or damage to the filter media. After installation, verify that the filter is securely seated and that air cannot bypass the filtration material. Proper installation is important because an improperly seated pre-filter can allow contaminated air to enter the compressor without passing through the intended filtration stage.
