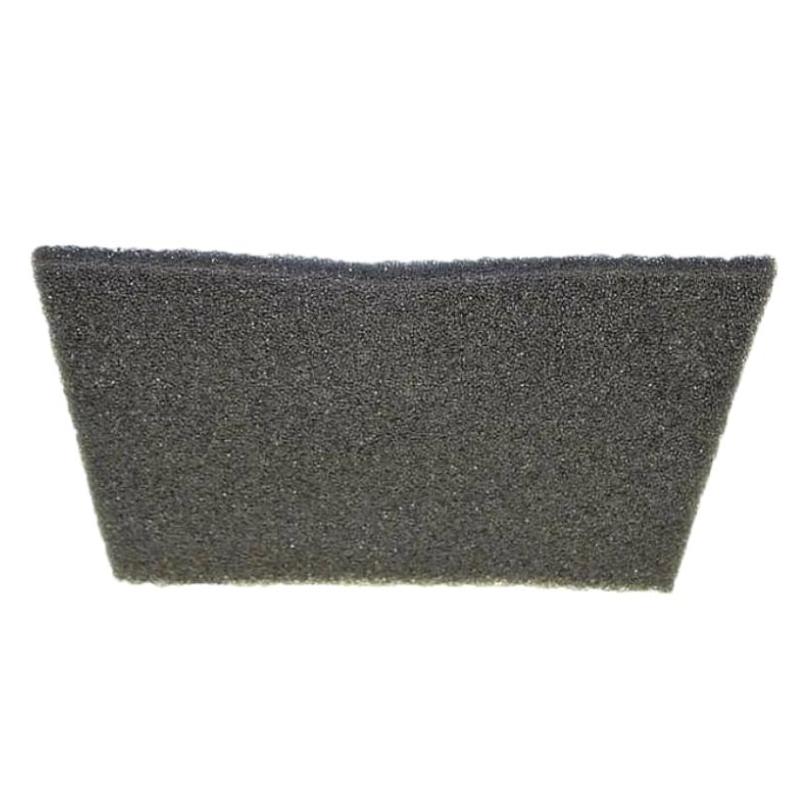

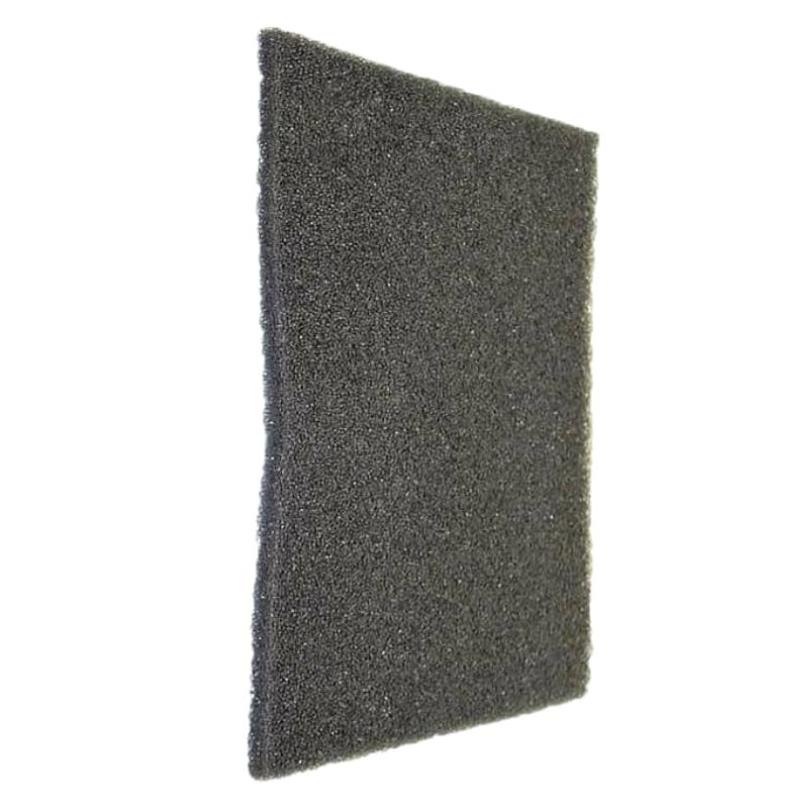

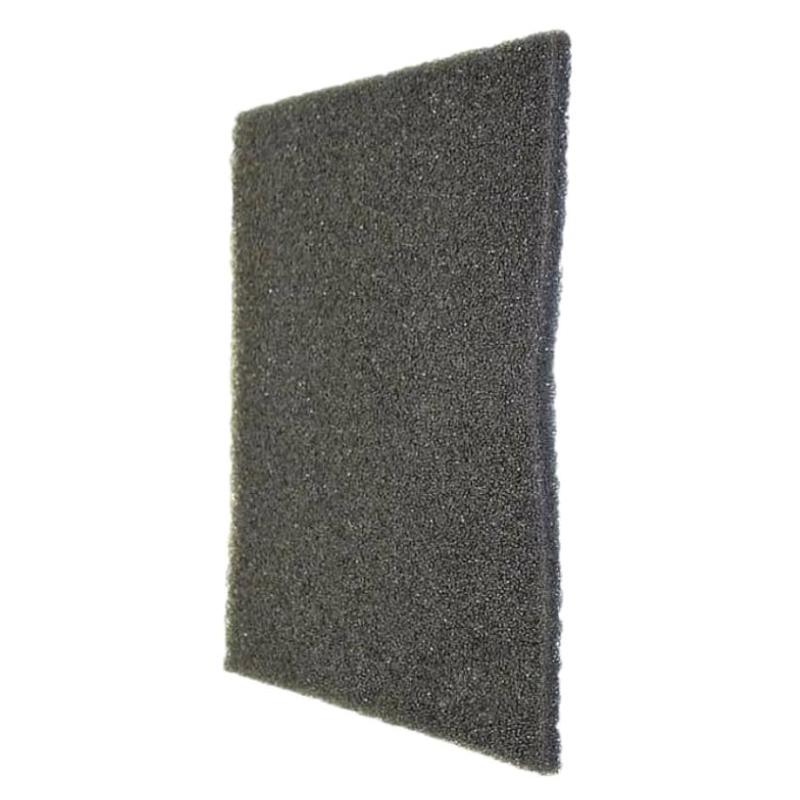

Ingersoll Rand 47627051001 22053722 Pre-Filter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 47627051001 |
| Ordering Number | 22053722 |
| Product Type | Pre-Filter |
| Filter Type | Air Intake Pre-Filter Pad |
| Application | Rotary Screw Air Compressors |
| Compatible Equipment | Ingersoll Rand UP5 series and selected EW5 compressor configurations |
| Installation Position | Upstream of the main air filter |
| Filter Media | Woven Polyester Fiber |
| Structure | Flat Panel Filter Pad |
| Main Function | Removes coarse dust, grit, debris and other larger airborne contaminants before they reach the main air filter |
| Protection Function | Reduces the contaminant load on the main air filter and helps maintain stable compressor intake airflow |
| Filtration Method | Mechanical Surface Filtration |
| Main Air Filter Protected | Ingersoll Rand 89295976 air filter element |
| Typical Application | Compressor intake air pre-filtration |
| Maintenance | Inspect regularly and replace when heavily contaminated, damaged or when airflow restriction increases |
| Installation Requirement | Ensure the pre-filter is correctly seated and the intake path is properly sealed |
| Service Benefit | Helps extend main filter service life and reduce intake contamination |
| Dimensions | 500 × 25 × 350 mm |
| Weight | 0.2 kg |
FAQ
Q1: What is the main function of the Ingersoll Rand 47627051001 pre-filter?
The 47627051001 pre-filter is installed on the compressor intake side to capture coarse dust, dirt, grit and other larger airborne particles before they reach the main air filter. By removing these contaminants at the first filtration stage, it reduces the loading rate of the primary filter and helps maintain stable intake airflow.
Q2: What is the difference between model 47627051001 and ordering number 22053722?
47627051001 is the model designation provided for the pre-filter, while 22053722 is the ordering or part number used to identify the replacement component when purchasing or ordering service parts. For procurement, maintenance records and replacement verification, both numbers should be checked together.
Q3: Which type of compressor system uses the 22053722 pre-filter?
The 22053722 pre-filter is used with selected Ingersoll Rand rotary screw compressor configurations, including UP5 and certain EW5 models. Compatibility should be confirmed against the specific compressor model and service parts list before installation, particularly when different intake configurations are available.
Q4: What material is used for the 22053722 pre-filter?
The pre-filter uses woven polyester fiber media in a flat-panel configuration. This type of media is suitable for capturing relatively coarse airborne contaminants while allowing sufficient airflow through the compressor intake system.
Q5: What happens if the pre-filter becomes heavily contaminated?
A loaded pre-filter increases resistance on the compressor intake side. Continued operation with excessive restriction can reduce available intake airflow, increase the loading of the main air filter and potentially affect compressor operating efficiency. In dusty environments, the pre-filter should therefore be inspected more frequently.
Q6: How can I determine when the 47627051001 pre-filter needs to be replaced?
Replacement should be based primarily on its physical condition and the intake system’s operating condition. Replace the pre-filter when the media is heavily loaded with dust, torn, damaged, deformed or no longer able to provide adequate airflow. It should also be checked whenever the main air filter is serviced.
Q7: How does the pre-filter work together with the main air filter?
The pre-filter provides the first stage of air cleaning by retaining larger contaminants before the intake air reaches the main filter. The main filter then performs finer filtration. This two-stage arrangement reduces the contaminant burden on the main filter and can help maintain more consistent intake performance.
Q8: What should be checked when installing a new 47627051001 pre-filter?
Before installation, clean the surrounding intake area and check the filter housing for accumulated dust or foreign material. Make sure the pre-filter is positioned correctly without folds, gaps or damaged sections. After installation, verify that the intake passage is unobstructed and that the filter is securely seated so unfiltered air cannot bypass the filtration stage.
Ingersoll Rand 47627051001 22053722 Pre-Filter is in stock. Please contact us for a quick quote and competitive pricing.
