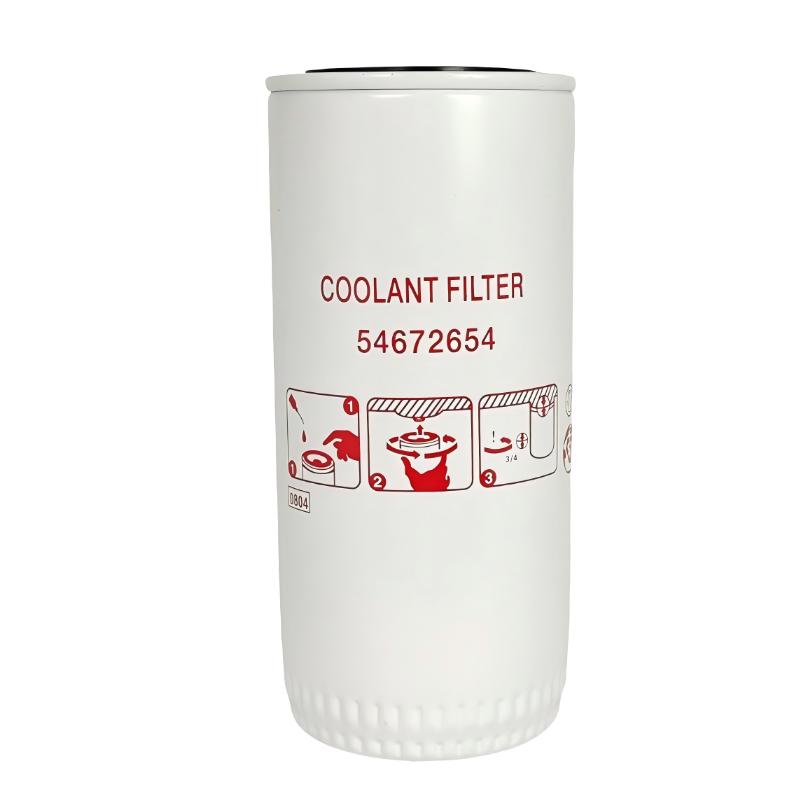

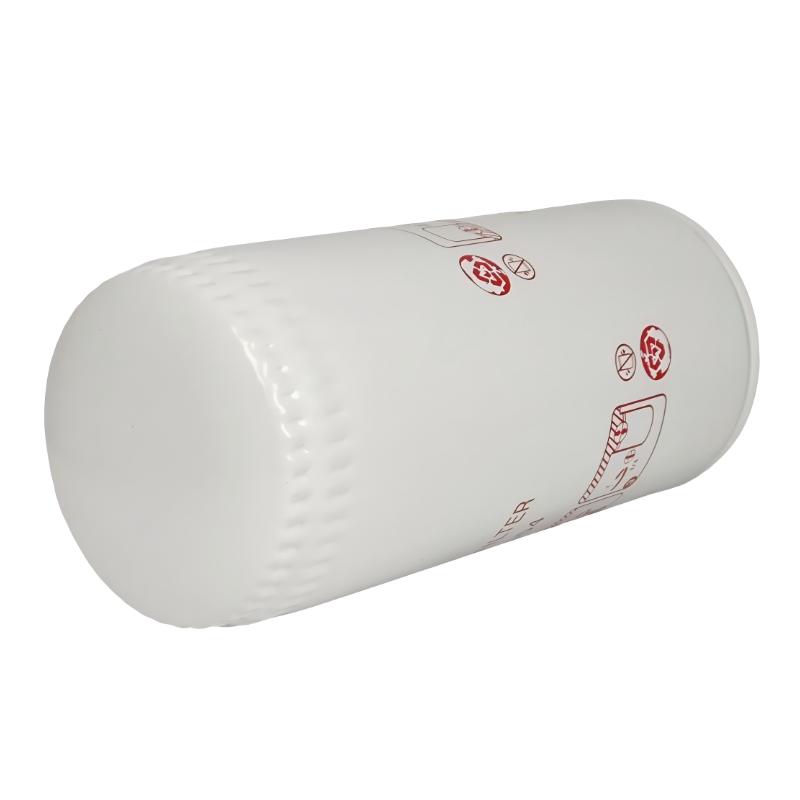

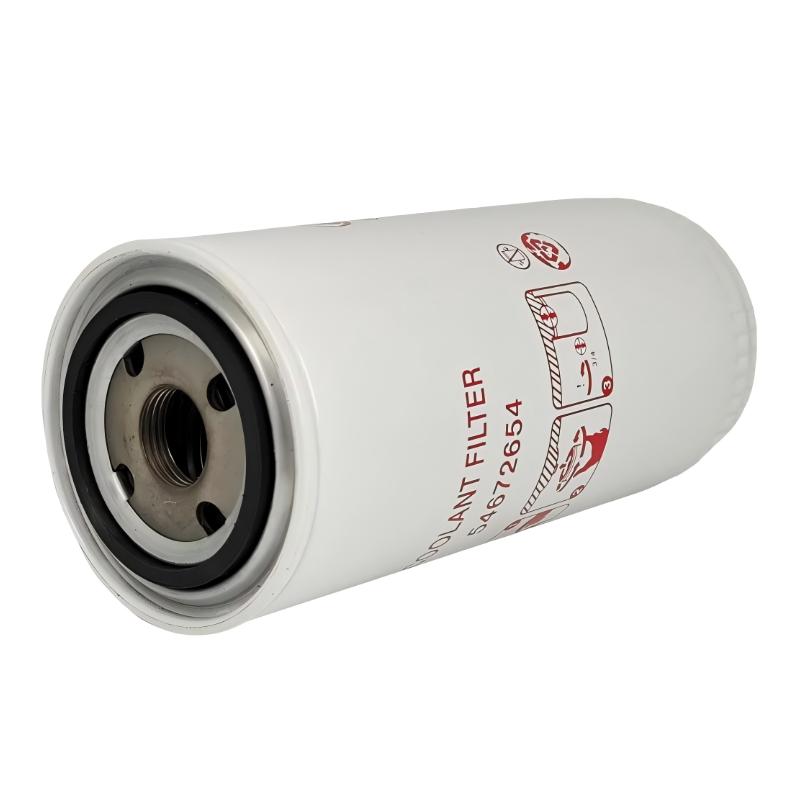

Ingersoll Rand 47627051001 54672654 Oil Filter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
|
|
Product Model |
|
|
Order Number |
|
|
Product Name |
|
|
Product Type |
Spin-On Compressor Oil Filter |
|
Application |
Industrial rotary screw air compressors |
|
Compatible Equipment |
Selected Ingersoll Rand UP6 and RS series compressors; verify model and serial number |
|
Primary Function |
Removes contaminants and particles from compressor lubricant |
|
Filter Media |
Enhanced cellulose filter media |
|
Filtration Rating |
Approximately 16 μm |
|
Thread Size |
1″-12 UNF |
|
Bypass Valve |
Yes |
|
Bypass Valve Opening Pressure |
Approximately 2.5 bar |
|
Main Purpose |
Helps protect internal compressor components and maintain clean oil circulation |
|
Recommended Replacement Interval |
Commonly 2,000 operating hours or annually, whichever comes first; follow the compressor maintenance manual |
|
Dimensions |
208 × 50 × 95 mm |
|
Weight |
0.91 kg |
FAQ
1. What is the Ingersoll Rand 47627051001 Oil Filter used for?
The oil filter removes dirt, metal particles, and other contaminants from the compressor lubricant before the oil circulates through critical components. Clean oil helps reduce wear on bearings and rotors and supports reliable compressor operation.
2. What is the difference between model 47627051001 and order number 54672654?
47627051001 is the product model, while 54672654 is the order number used to identify the oil filter. When ordering a replacement, verify the order number against the compressor’s parts list and nameplate information.
3. Which compressors are compatible with the 54672654 oil filter?
This filter is used with selected Ingersoll Rand rotary screw compressors, including certain UP6 and RS series models. Compatibility can vary by compressor configuration and production date, so confirm the model and serial number before installation.
4. How often should the oil filter be replaced?
A common maintenance interval is every 2,000 operating hours or once a year, whichever comes first. Actual intervals depend on the compressor model, operating conditions, lubricant quality, and manufacturer’s maintenance recommendations.
5. What are the symptoms of a clogged oil filter?
Possible symptoms include increased pressure differential across the filter, abnormal oil circulation, elevated operating temperature, or a compressor protection alarm. A bypass valve may help maintain oil flow under certain conditions, but it does not eliminate the need to replace a clogged filter.
6. Can an equivalent aftermarket filter replace the original 54672654?
An equivalent filter may be suitable if its thread, sealing dimensions, filtration performance, flow capacity, and bypass valve specifications meet the compressor requirements. Do not select a replacement based on physical appearance alone.
7. What should be checked before installing a new oil filter?
Confirm the part number, thread specification, seal condition, and compressor compatibility. Shut down and isolate the machine, allow hot oil and components to cool, release pressure according to the service procedure, and lubricate the sealing gasket if required by the manufacturer’s instructions.
8. Why might an oil leak occur after replacing the filter?
Common causes include a damaged or incorrectly seated gasket, a loose filter, a contaminated sealing surface, or an incorrect filter specification. Check the installation and sealing surface according to the service manual, and verify that the leak has stopped before returning the compressor to normal operation.
Ingersoll Rand 47627051001 54672654 Oil Filter is in stock. Please contact us for a quick quote and competitive pricing.
