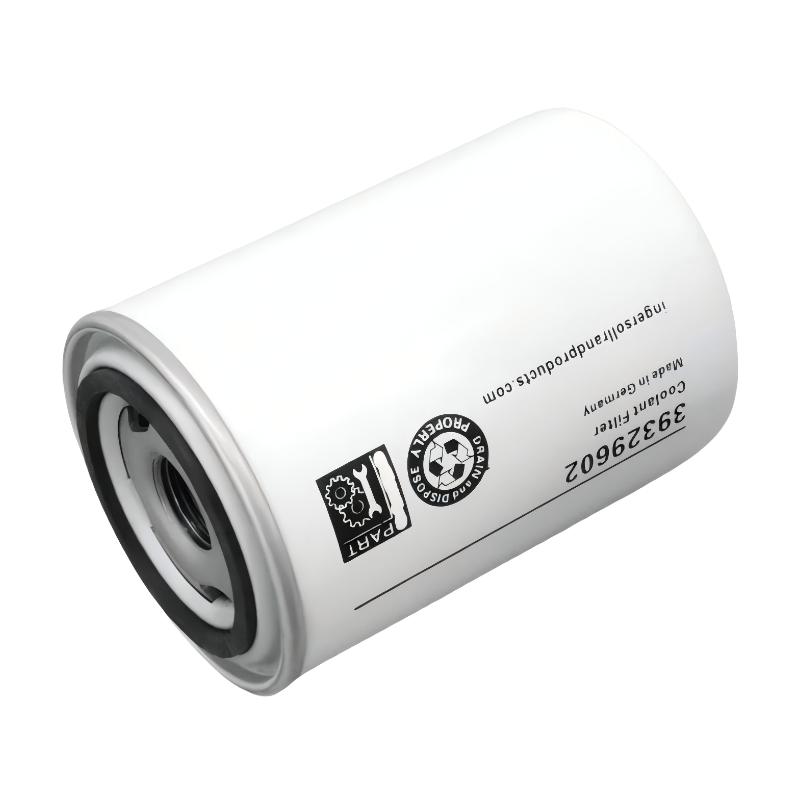

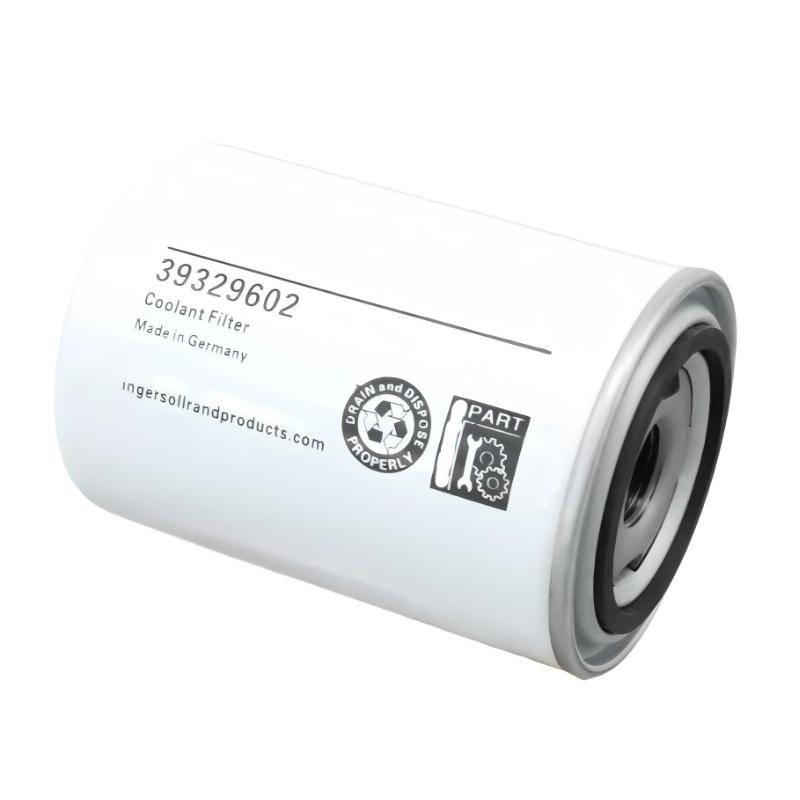

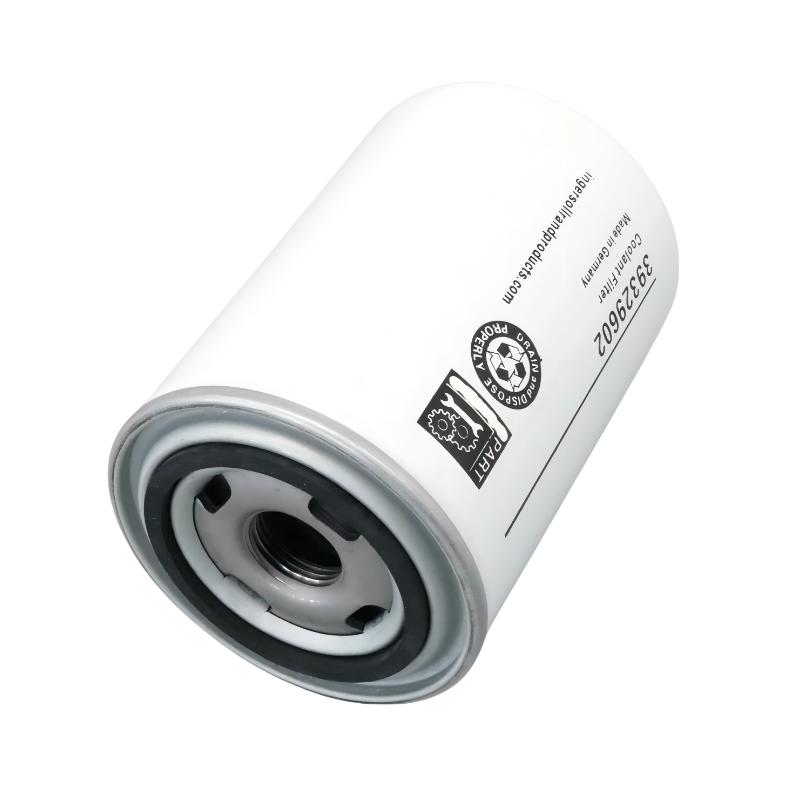

Ingersoll Rand 47627670001 39329602 Oil Filter Element
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Product Type | Oil Filter Element |
| Model | 47627670001 |
| Order Number | 39329602 |
| Filter Type | Spin-On Oil Filter Element |
| Application | Rotary Screw Air Compressor Lubrication System |
| Compatible Compressor Series | R-Series / UP6-Series |
| Typical Compatible Models | R4i, R5.5i, R7.5i, R11i and related UP6 models |
| Filtration Media | Cellulose / synthetic filter media |
| Filtration Rating | Approximately 10–15 μm nominal |
| Bypass Valve | Integrated |
| Bypass Valve Opening Pressure | Approximately 2.5 bar differential pressure |
| Thread | 1″ × 12 UNF |
| Seal Material | NBR |
| Function | Removes solid contaminants from compressor oil and helps protect the airend and lubrication circuit |
| Installation Type | Spin-On |
| Recommended Service Interval | Approximately 2,000 operating hours, subject to operating conditions and compressor maintenance requirements |
| Working Pressure | Up to approximately 25 bar |
| Burst Pressure | Approximately 35 bar |
| Operating Temperature | Up to approximately 120°C |
| Dimensions | 135 × 40 × 95 mm |
| Weight | 0.45 kg |
FAQ
1. What is the Ingersoll Rand 47627670001 39329602 Oil Filter Element?
The Ingersoll Rand 47627670001 is an oil filter element identified by order number 39329602. It is designed for rotary screw compressor lubrication systems and removes contaminants from the circulating compressor oil before the oil returns to critical components.
2. What is the main function of the 39329602 oil filter?
The filter removes suspended particles and other contaminants from compressor lubricant. Keeping these contaminants out of the lubrication circuit helps reduce wear on bearings, gears, the airend, and other oil-lubricated components while maintaining cleaner oil circulation.
3. Which Ingersoll Rand compressors commonly use the 39329602 filter?
The 39329602 is associated with several small-frame R-Series and UP6-Series rotary screw compressors, including models such as R4i, R5.5i, R7.5i and R11i. Compatibility should always be confirmed against the specific compressor model and parts list before installation.
4. Does the 39329602 have a bypass valve?
Yes. The filter incorporates an internal bypass valve. The bypass function allows oil to continue circulating if the filter element becomes excessively restricted or oil viscosity is high enough to create a significant pressure differential. This helps maintain lubrication flow when the filter is heavily loaded.
5. What is the filtration rating of the 39329602?
The commonly specified nominal filtration range for this filter is approximately 10–15 μm. The actual filtration performance depends on the filter media, oil condition, flow rate, and operating conditions. Regular replacement is important because a loaded filter can increase pressure drop through the lubrication circuit.
6. How often should the 39329602 oil filter be replaced?
A typical service interval is around 2,000 operating hours, although the actual replacement interval depends on the compressor model, lubricant condition, operating environment, and manufacturer maintenance schedule. In dusty or high-load applications, the filter may require more frequent inspection or replacement.
7. What problems can occur when the oil filter becomes clogged?
A heavily restricted oil filter can increase the pressure differential across the element and reduce the efficiency of the lubrication circuit. Depending on the compressor design and operating condition, this may contribute to elevated oil temperature, reduced lubrication performance, increased bypass operation, or compressor protection alarms.
8. What should be checked when replacing the 39329602 oil filter?
Before replacement, isolate the compressor and release system pressure according to the maintenance procedure. Check the old filter for abnormal contamination or metal particles, inspect the sealing surface, and make sure the replacement filter has the correct thread and specification. After installation, check for oil leaks and verify oil pressure and operating temperature during the initial restart.
Ingersoll Rand 47627670001 39329602 Oil Filter Element is in stock. Please contact us for a quick quote and competitive pricing.
