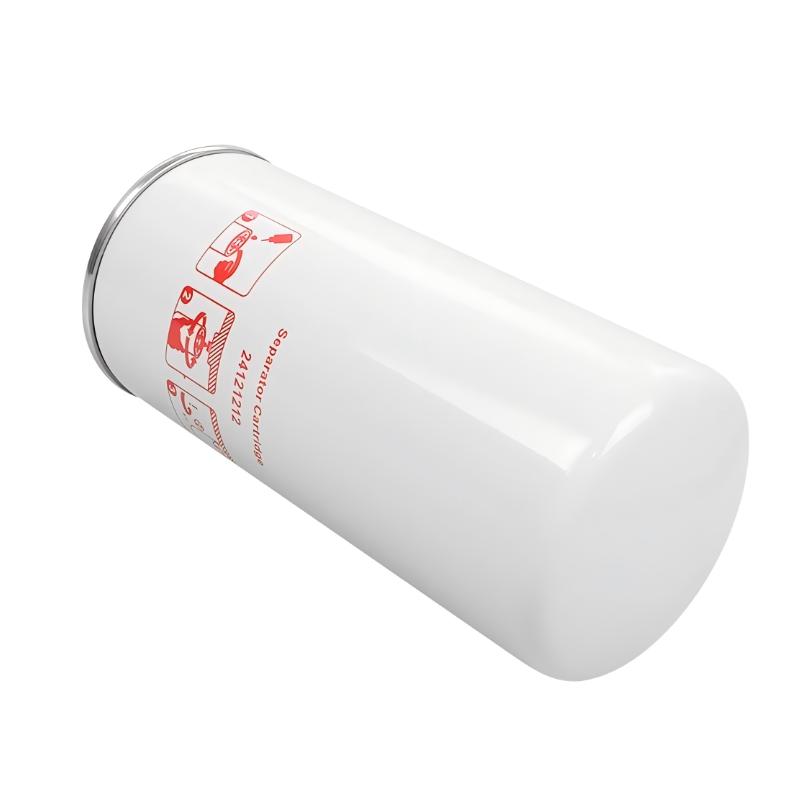

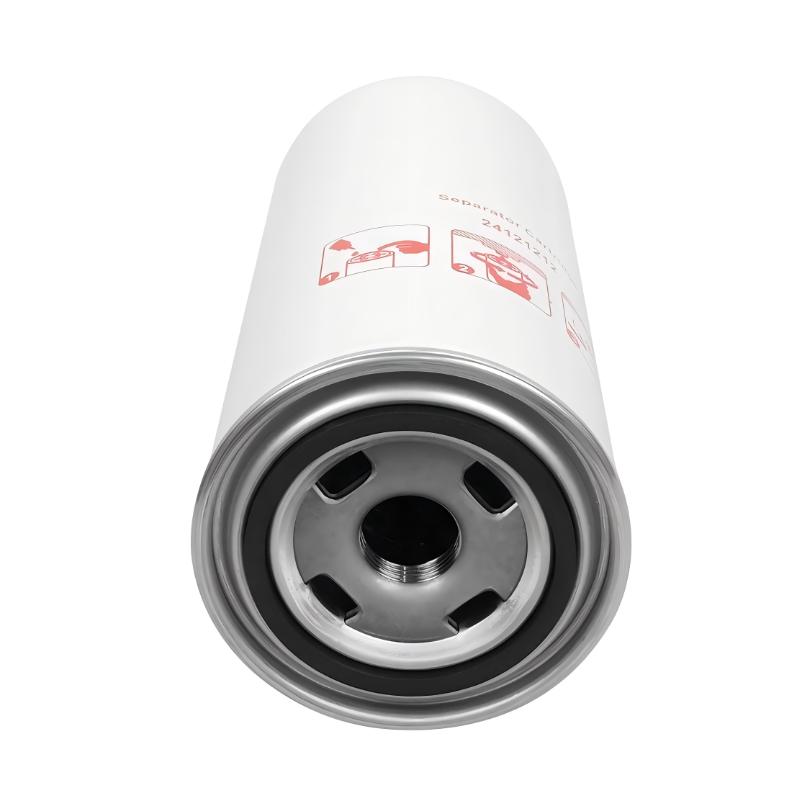

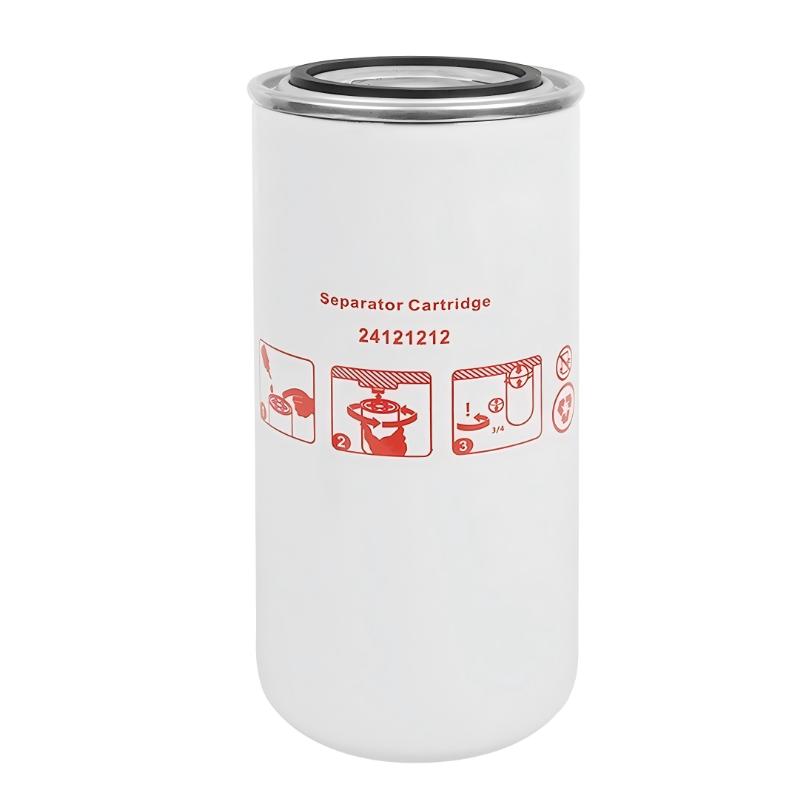

Ingersoll Rand 47627671001 24121212 Air-Oil Separator
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Product Type | Air-Oil Separator |
| Model | 47627671001 |
| Order Number | 24121212 |
| Separator Type | Spin-On Coalescing Separator Element |
| Application | Rotary Screw Air Compressors |
| Compatible Compressor Series | Ingersoll Rand UP6 5–15 HP and R4–11 series |
| Separation Principle | Coalescing separation of oil aerosols from compressed air |
| Filter Media | Molded fiberglass coalescing media |
| Structure | Two-stage molded, structurally reinforced separator |
| Main Function | Separates oil from compressed air and reduces oil carryover into the discharge air system |
| Oil Return | Separated oil is retained within the compressor lubrication system |
| Typical Initial Pressure Drop | Approximately 3 psi |
| Working Pressure | Up to 20 bar |
| Burst Pressure | Approximately 35 bar |
| Filter Media Grade | Borosilicate micro-glass fiber, approximately 3 μm |
| Flow Direction | Outside to inside |
| Connection | M23 × 1.5 female thread |
| Seal Material | NBR |
| Installation Type | Spin-on replacement element |
| Maintenance | Inspect during scheduled compressor service and replace when restriction or separation performance becomes unacceptable |
| Dimensions | 205 × 45 × 95 mm |
| Weight | 0.91 kg |
FAQ
1. What is the Ingersoll Rand 47627671001 Air-Oil Separator?
The 47627671001 is the model number for an Ingersoll Rand air-oil separator, with 24121212 as the order number. It is a coalescing separator element used in rotary screw compressors to remove oil aerosols from compressed air before the air leaves the compressor.
2. What is the main function of the 24121212 separator?
The separator captures oil carried by the compressed-air stream and allows the separated oil to remain within the compressor lubrication system. This helps reduce oil carryover and maintain cleaner discharge air.
3. Which Ingersoll Rand compressors use the 24121212 separator?
The 24121212 is designed for compatible UP6 5–15 HP and R4–11 rotary screw compressor models. Fitment should be confirmed against the compressor model, serial number, and parts documentation before replacement.
4. What type of filter media is used in this air-oil separator?
The separator uses a molded fiberglass coalescing structure. The media is designed to capture fine oil aerosols while maintaining a relatively low pressure drop through the separator during normal compressor operation.
5. What are the symptoms of a restricted air-oil separator?
A restricted separator can produce increased pressure drop through the separator, higher compressor operating load, and increased energy consumption. Depending on the condition, the compressor may also show abnormal differential-pressure indications or reduced operating efficiency.
6. What can cause excessive oil carryover after replacing the separator?
Excessive oil carryover may result from incorrect separator installation, damaged sealing components, an unsuitable replacement element, problems with the oil-return system, or operating conditions outside the compressor’s normal range. The separator and associated oil-return components should be checked before replacing the element again.
7. How should the 47627671001 separator be installed?
Before installation, shut down the compressor and completely depressurize the system. Remove the old separator, inspect the sealing surface, lubricate the new seal with clean compressor oil, and install the replacement element correctly. After installation, check for oil or air leakage during the initial restart.
8. When should the 24121212 air-oil separator be replaced?
Replacement should be performed according to the compressor manufacturer’s maintenance schedule or when the separator becomes restricted, damaged, or unable to maintain proper oil separation. Operating hours, differential pressure, oil carryover, and actual compressor operating conditions should all be considered when determining replacement requirements.
Ingersoll Rand 47627671001 24121212 Air-Oil Separator is in stock. Please contact us for a quick quote and competitive pricing.
