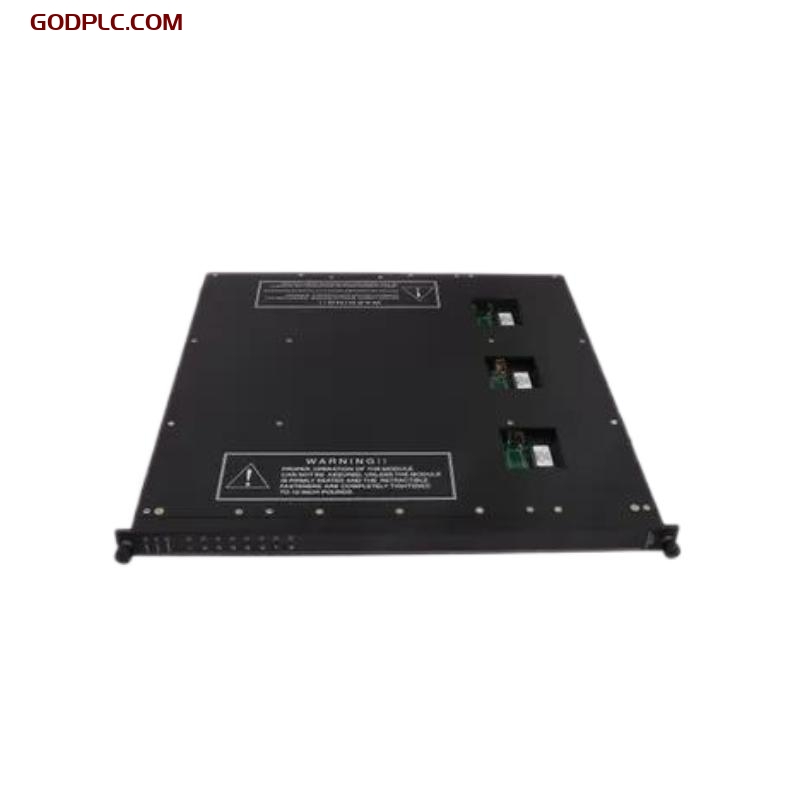

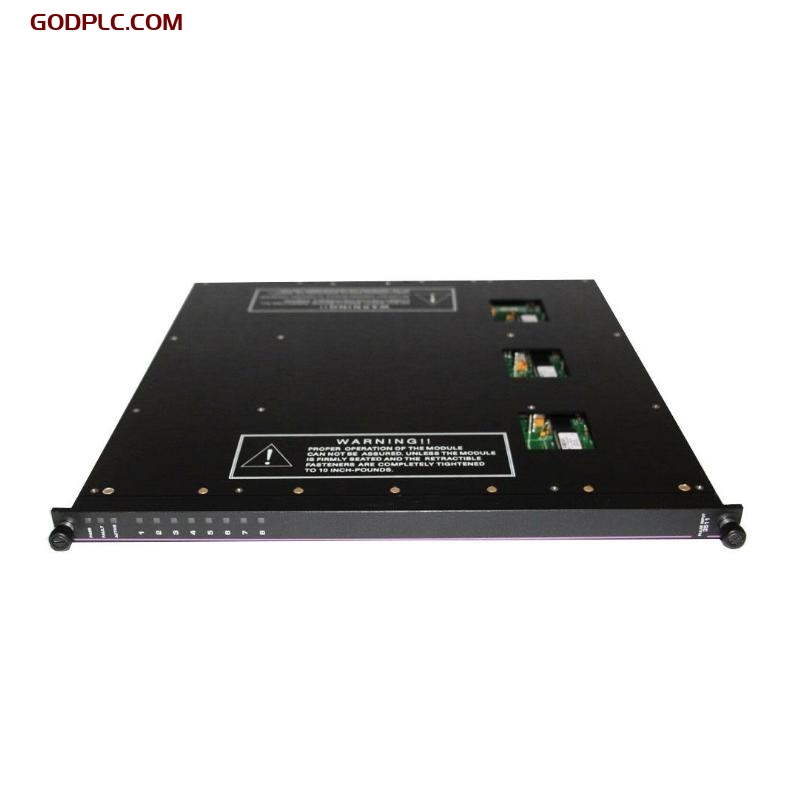

Triconex 3511 Pulse Input Module Product Overview

The Triconex 3511 Pulse Input Module is a high-precision industrial module designed for safety-critical and process control applications. As part of the Triconex Tricon safety and control system, this module is engineered to acquire, process, and analyze pulse signals with exceptional reliability and accuracy.

With its robust architecture and triple-modular redundancy (TMR) technology, the Triconex 3511 provides high-speed pulse detection, real-time event monitoring, and superior fault tolerance, ensuring system integrity and operational continuity in demanding industrial environments.

The module is extensively used in power plants, oil and gas facilities, chemical processing plants, and critical infrastructure where precise pulse input measurement is essential for system safety, operational efficiency, and compliance with stringent industry regulations.

With dimensions of 270 x 46 x 253 mm and a weight of 3.03 kg, this module is ruggedly built for high-performance applications in challenging environments. Its electrical isolation and advanced filtering capabilities further enhance its ability to process high-frequency signals while minimizing noise and interference.

Key Features

• High-Speed Pulse Input Processing – Capable of handling various pulse signal types with high accuracy.
• Triple-Modular Redundancy (TMR) – Ensures fault-tolerant operation and system reliability.
• Advanced Signal Filtering – Reduces signal noise and enhances measurement precision.
• Real-Time Diagnostics – Self-monitoring and instant fault detection for predictive maintenance.
• Wide Input Frequency Range – Compatible with multiple pulse signal sources.
• Electrical Isolation – Prevents ground loops and voltage fluctuations for improved signal integrity.
• Seamless Integration – Fully compatible with Triconex safety controllers.
• Industry-Standard Compliance – Meets stringent safety and performance certifications.
• Compact and Rugged Design – Dimensions: 270 x 46 x 253 mm, Weight: 3.03 kg.
• Low Power Consumption – Optimized for energy-efficient operation.

Technical Specifications

Applications

The Triconex 3511 Pulse Input Module is extensively used in industries where precise pulse input monitoring and control are critical. Key applications include:

• Power Generation – Used for turbine speed monitoring, frequency control, and generator synchronization.
• Oil & Gas – Ideal for pipeline flow measurement, compressor speed tracking, and emergency shutdown systems.
• Chemical Processing – Ensures accurate control of flow meters and batch processing units.
• Water & Wastewater Treatment – Monitors pump speeds, flow rates, and valve operation for optimal system performance.
• Manufacturing & Industrial Automation – Used in production line speed tracking and event detection.
• Aerospace & Defense – Essential for high-reliability mission-critical control systems.
• Transportation & Railways – Helps monitor train speeds, track switching systems, and automation controls.
• Pharmaceutical Industry – Provides precision pulse counting to maintain regulatory compliance.
• Renewable Energy Systems – Used in wind turbine speed monitoring and solar inverter synchronization.
• Mining & Heavy Equipment – Assists in motion tracking, conveyor belt monitoring, and drilling system control.
