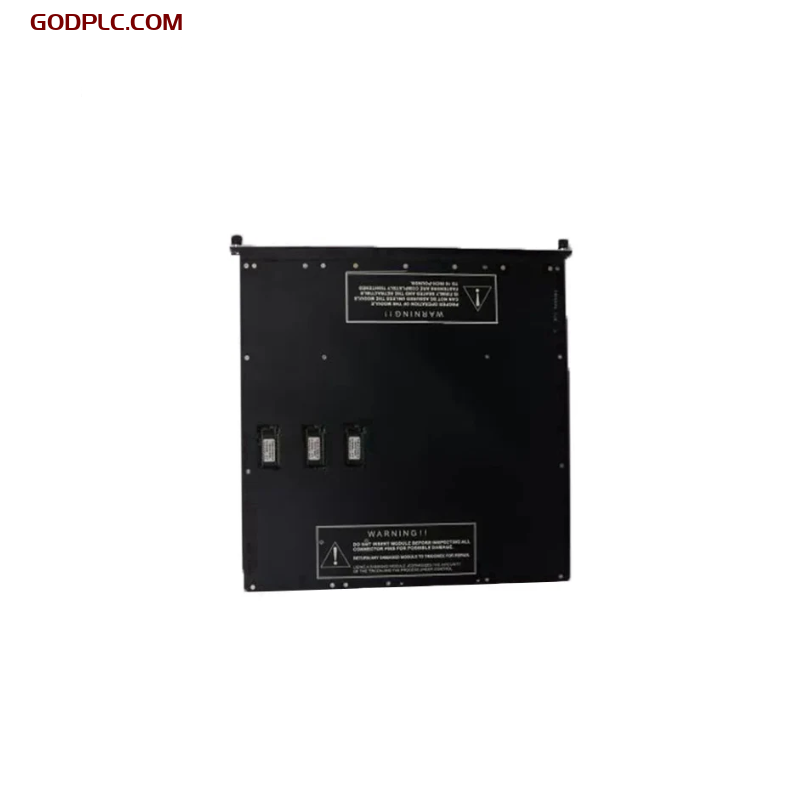

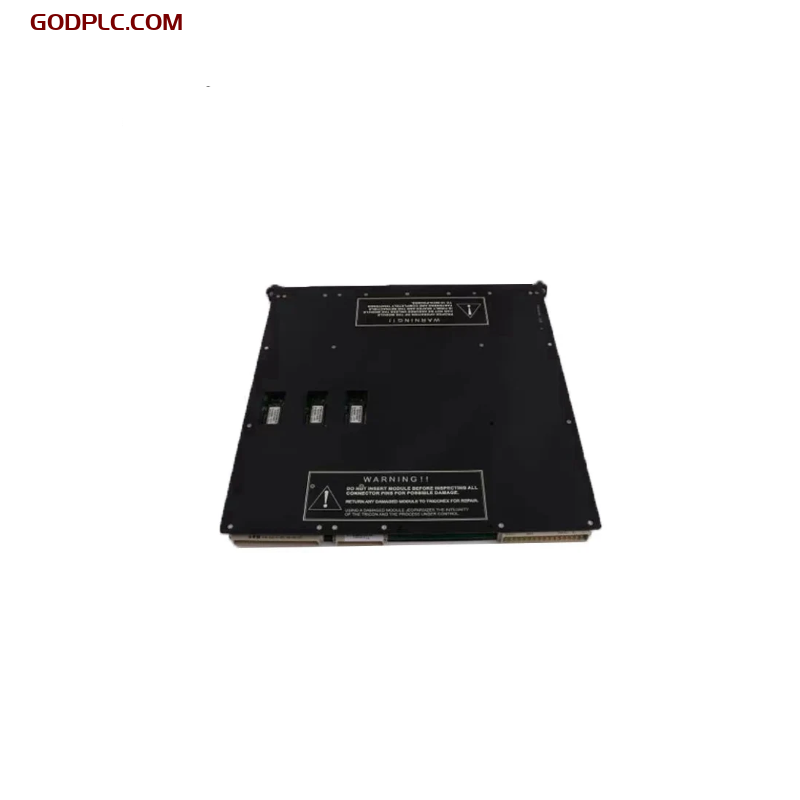

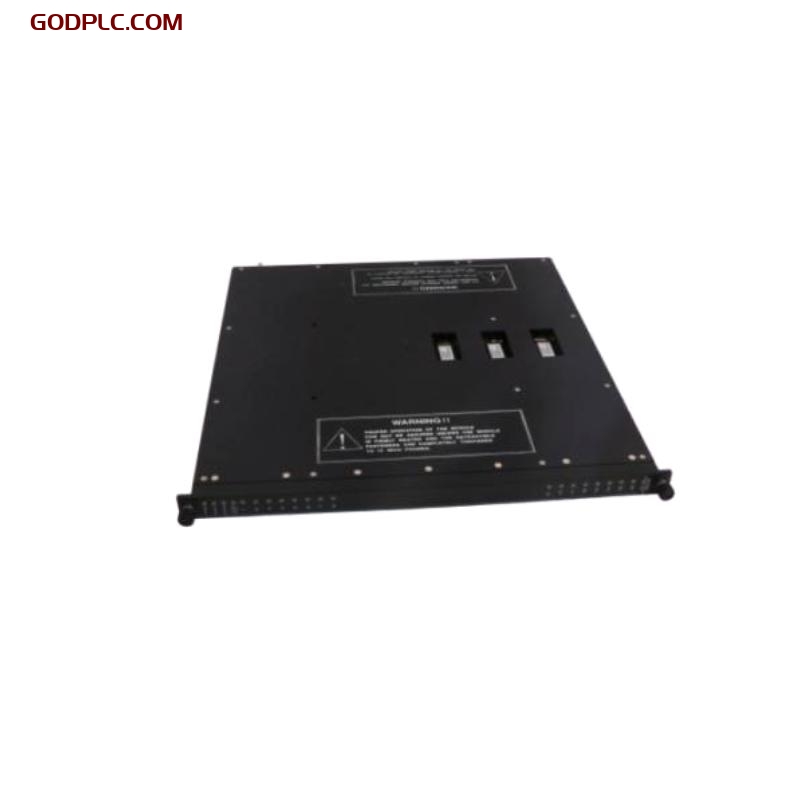

Triconex 3607E Product Introduction
The Triconex 3607E is a high-performance safety module designed for critical control applications in industrial environments. It is part of the Triconex Tricon series, which is widely recognized for its reliability and fault-tolerant architecture. The 3607E module is specifically engineered to provide robust safety solutions for processes requiring high availability and redundancy.
This module is commonly used in industries such as oil and gas, power generation, and chemical processing, where system failures can lead to significant safety risks or financial losses. The 3607E ensures continuous operation even in the event of hardware or software faults, making it an essential component in safety instrumented systems (SIS).
Product Advantages
- High Reliability: The Triconex 3607E features triple-modular redundancy (TMR) technology, ensuring uninterrupted operation even if one channel fails.
- Fault Tolerance: The module is designed to detect and isolate faults automatically, minimizing downtime.
- Scalability: It can be easily integrated into larger Triconex systems, allowing for flexible expansion.
- Robust Design: Built to withstand harsh industrial environments, including extreme temperatures and vibrations.
- Compliance: Meets international safety standards such as IEC 61508 and IEC 61511.
- Easy Maintenance: Modular design allows for quick replacement and reduced maintenance costs.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 200 mm x 150 mm x 50 mm |
| Weight | 1.2 kg |
| Operating Voltage | 24V DC (±10%) |
| Power Consumption | 15W max |
| Operating Temperature | -40°C to +70°C |
| Communication | Ethernet, RS-485 |
| Redundancy | Triple Modular Redundancy (TMR) |
| Certifications | IEC 61508, IEC 61511, SIL 3 |
Product Applications
The Triconex 3607E is widely used in the following industries and applications:
- Oil & Gas: Emergency shutdown systems (ESD), fire and gas detection.
- Power Generation: Turbine control, boiler protection systems.
- Chemical Processing: Safety interlocks, pressure relief systems.
- Pharmaceutical: Batch process safety controls.
- Mining: Hazardous area monitoring and shutdown systems.
Compatible Products
The Triconex 3607E can be used alongside the following modules for a complete safety solution:
- Triconex 3805E – Power Supply Module
- Triconex 4351B – Communication Module
- Triconex 3625T – Digital Input Module
- Triconex 3721 – Analog Output Module
- Triconex 3503E – Main Processor Module
Installation Instructions
- Pre-Installation Check: Ensure the power supply is turned off before installation. Verify compatibility with the existing system.
- Mounting: Secure the module in the designated slot within the Triconex chassis using the provided screws.
- Wiring: Connect the power supply (24V DC) and communication cables as per the wiring diagram.
- Power-Up: Turn on the power and verify the module’s status LED indicators (green for normal operation).
- Configuration: Use the Triconex TriStation software to configure the module parameters.
- Testing: Perform a functional test to ensure proper integration with the control system.
Recommended Related Models (Same Series)
| Model | Dimensions | Weight | Voltage | Key Feature |
|---|---|---|---|---|
| Triconex 3503E | 200 mm x 150 mm | 1.1 kg | 24V DC | Main Processor Module |
| Triconex 3625T | 200 mm x 150 mm | 1.0 kg | 24V DC | Digital Input Module |
| Triconex 3721 | 200 mm x 150 mm | 1.3 kg | 24V DC | Analog Output Module |
| Triconex 3805E | 200 mm x 150 mm | 1.4 kg | 24V DC | Redundant Power Supply |
| Triconex 4351B | 200 mm x 150 mm | 1.2 kg | 24V DC | Communication Module |
| Triconex 4009 | 200 mm x 150 mm | 1.5 kg | 24V DC | I/O Expansion Module |
Popular Triconex Models (Other Series)
| Model | Dimensions | Weight | Voltage | Key Feature |
|---|---|---|---|---|
| Triconex 3008 | 180 mm x 140 mm | 1.0 kg | 24V DC | Basic I/O Module |
| Triconex 4119A | 200 mm x 150 mm | 1.3 kg | 24V DC | Advanced Processor Module |
| Triconex 4409 | 200 mm x 150 mm | 1.4 kg | 24V DC | High-Speed Communication |
| Triconex 5009 | 220 mm x 160 mm | 1.6 kg | 24V DC | Enhanced Safety Controller |
| Triconex 6005 | 200 mm x 150 mm | 1.2 kg | 24V DC | Fault-Tolerant I/O Module |
| Triconex 7103 | 210 mm x 155 mm | 1.5 kg | 24V DC | High-Density Digital Input |
| Triconex 8201 | 200 mm x 150 mm | 1.3 kg | 24V DC | Analog Input Module |
| Triconex 9007 | 220 mm x 160 mm | 1.7 kg | 24V DC | Ultra-Reliable Safety Module |
FAQ (Frequently Asked Questions)
Q1: What is the operating temperature range of the Triconex 3607E?
A1: The module operates within a range of -40°C to +70°C.
Q2: Does the Triconex 3607E support hot swapping?
A2: Yes, the module supports hot swapping for minimal downtime during maintenance.
Q3: What certifications does the Triconex 3607E hold?
A3: It is certified under IEC 61508, IEC 61511, and meets SIL 3 requirements.
Q4: Can the Triconex 3607E be used in hazardous areas?
A4: Yes, it is designed for use in harsh and hazardous industrial environments.
Q5: What software is used to configure the Triconex 3607E?
A5: The Triconex TriStation software is used for configuration and diagnostics.
Q6: How does the TMR technology improve reliability?
A6: Triple Modular Redundancy ensures continuous operation by comparing three independent channels and masking faults.
