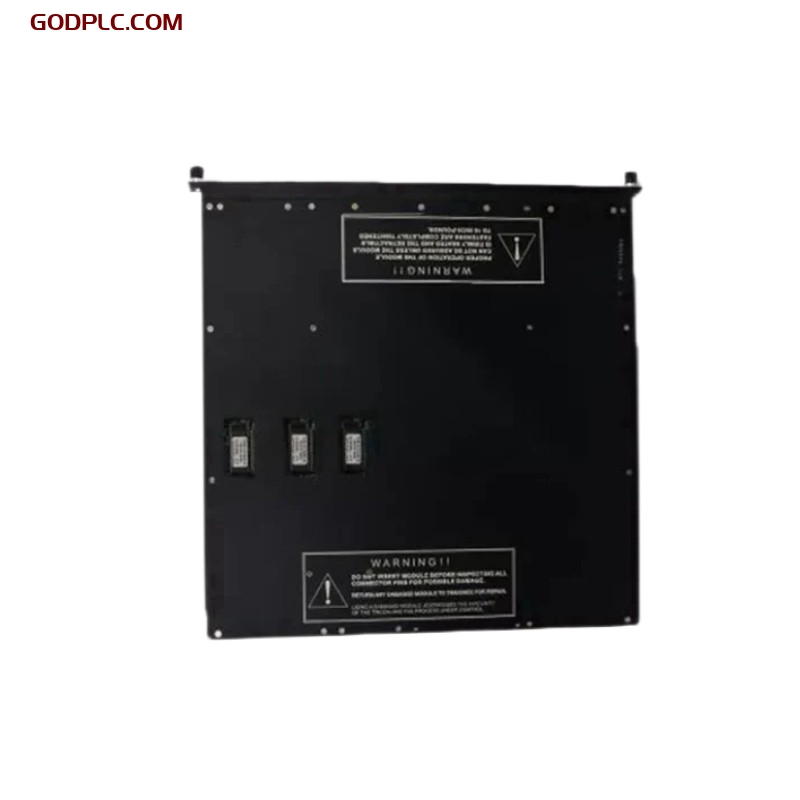

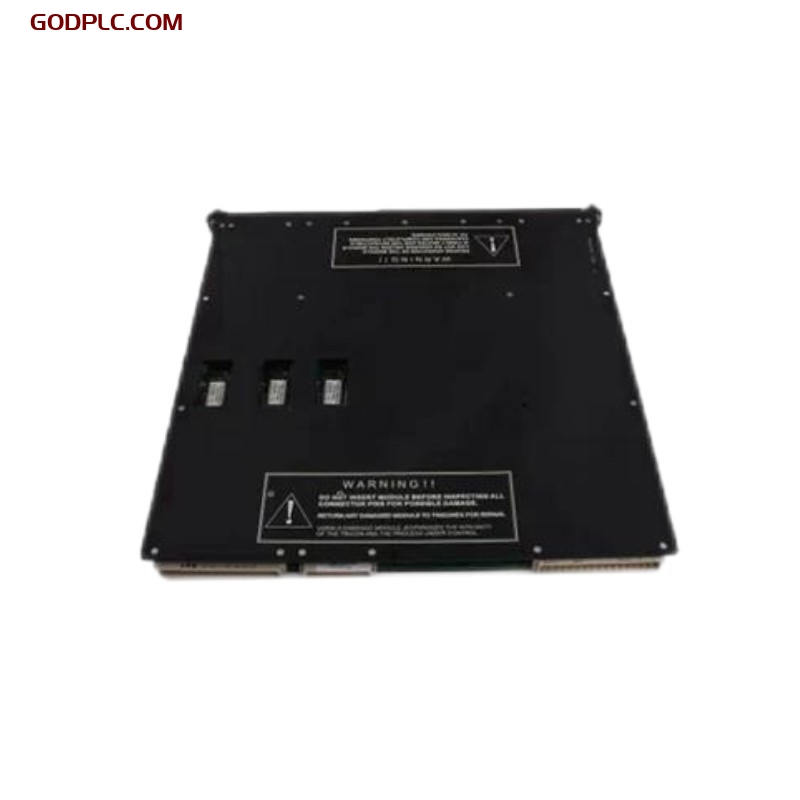

Invensys Triconex 3623 Digital Output Module
1. Product Overview
The Invensys Triconex 3623 Digital Output Module is a high-integrity, fault-tolerant output unit designed for use in Triconex safety instrumented systems (SIS). Engineered for use in SIL 3-rated applications, this module provides reliable digital signal output to actuate final control elements such as solenoids, relays, and indicators in safety-critical systems.
With a triple-redundant architecture and continuous self-diagnostics, the 3623 module ensures uninterrupted operation even in the presence of hardware faults. Its compatibility with Tricon chassis makes it suitable for demanding environments such as oil & gas, petrochemical, power generation, and industrial process safety systems.
2. Key Features
-
TMR Architecture: Triple Modular Redundancy (TMR) ensures high fault tolerance and operational reliability.
-
SIL 3 Certified: Meets IEC 61508 standards for use in the most critical safety applications.
-
16 Independent Outputs: Capable of controlling up to 16 devices simultaneously.
-
Online Module Replacement: Supports hot-swapping without interrupting system operation.
-
Comprehensive Diagnostics: Monitors each channel and internal circuitry for faults and reports status.
-
Output Protection: Includes overcurrent and short-circuit protection per channel.
-
System Integration: Seamless integration with Tricon controllers and safety networks.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 115 x 230 x 50mm |
| Weight | 1.5kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | 3623 |
| Manufacturer | Invensys Triconex (Schneider Electric) |
| System Compatibility | Tricon v10 and later |
| Mounting | Tricon backplane |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
3.3 Output Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 16 |
| Output Type | Digital (Discrete) |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel max |
| Output Type | Sourcing (positive logic) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Channel-level health check, short/open detection |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC (via system backplane) |
| Power Consumption | Approx. 8 W |
| Status Indicators | LEDs for power, channel status, and fault |
| Redundancy Type | TMR (Triple Modular Redundant) |
4. Industry Applications
The Invensys Triconex 3623 Digital Output Module is trusted in a wide range of high-stakes industries requiring deterministic and fail-safe digital control:
-
Oil & Gas: Controls emergency shutdown valves, fire & gas systems, and blowout preventers.
-
Chemical and Petrochemical: Actuates alarms and interlocks in high-risk chemical processing environments.
-
Power Generation: Provides control outputs for turbine protection and critical systems.
-
Pharmaceuticals: Ensures compliance with functional safety standards in regulated production environments.
-
Water Treatment: Facilitates reliable control of pumps, valves, and safety indicators.
The Triconex 3623 is a vital component in any high-reliability control architecture, offering unparalleled safety and output performance for mission-critical applications.
