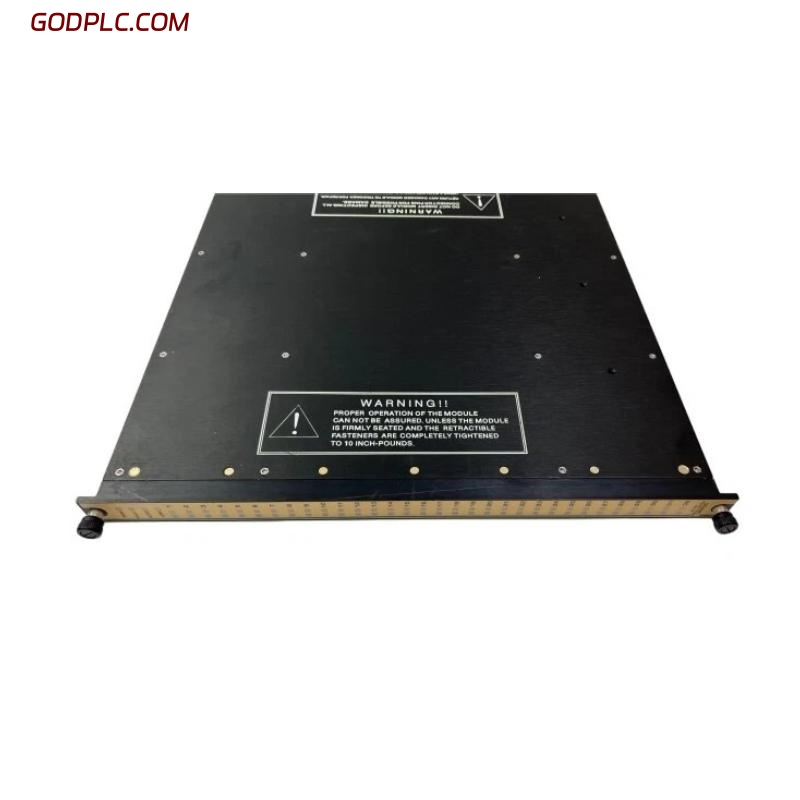

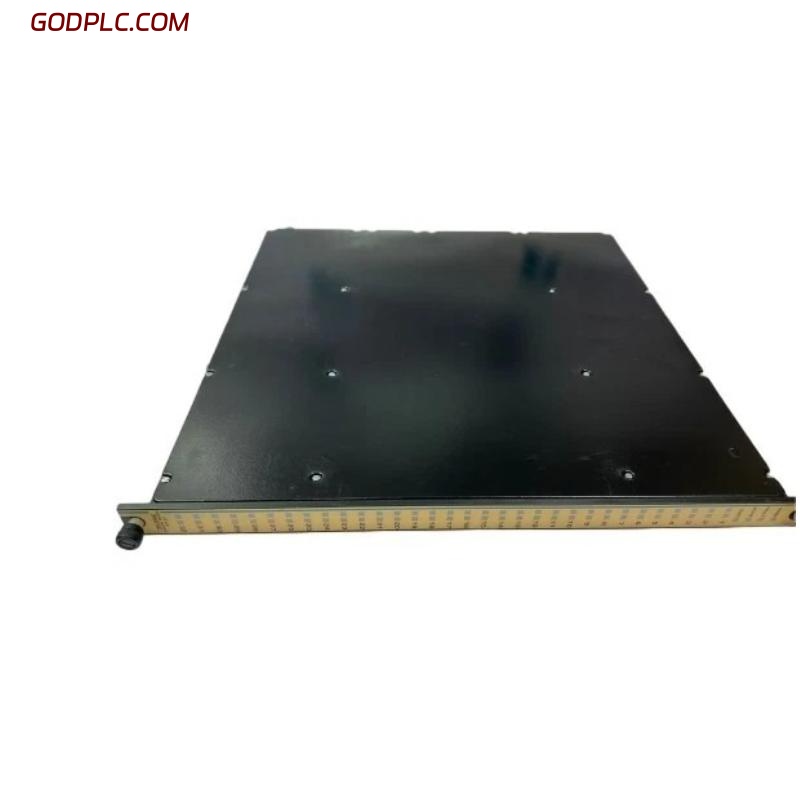

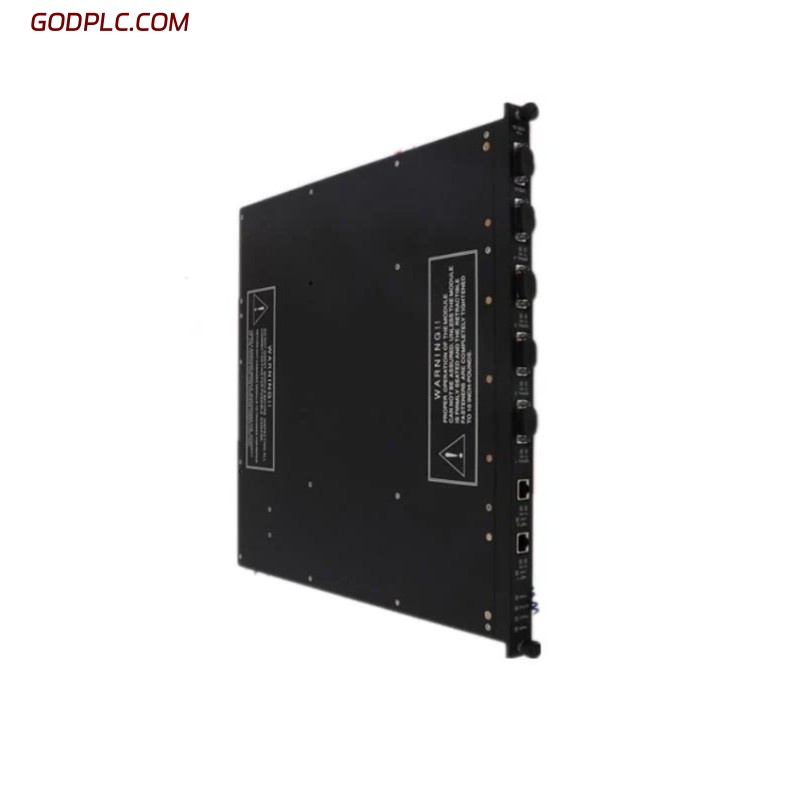

Triconex 3625C Digital Output Module

Product Overview
The Triconex 3625C Digital Output Module is a robust and high-performance module designed for use in safety-critical control systems. Part of the Triconex Safety System, this module is ideal for applications in industries such as oil & gas, power generation, and chemical processing. It provides high-integrity digital output signals for controlling external devices such as relays, valves, and actuators, ensuring that safety functions are reliably executed in accordance with stringent safety standards. The 3625C module is built for high reliability and continuous operation in demanding environments.

Key Features

• High Integrity – Designed for safety-critical applications, ensuring reliable digital output signals for controlling safety devices.

• SIL3 Certified – Meets international safety standards, including SIL3, for functional safety in process automation and control.

• Redundant Outputs – Provides redundant outputs to ensure fault tolerance and continuous operation in case of a module or channel failure.

• Wide Range of Field Devices – Compatible with a wide variety of external devices, including valves, actuators, and relays, for enhanced system flexibility.

• Real-time Diagnostics – Equipped with real-time diagnostics for quick fault detection and system health monitoring, ensuring uninterrupted operation.

• Compact and Modular Design – Easily integrates into Triconex Safety Systems, allowing for scalable and flexible configurations.

• Efficient Control – Capable of high-speed digital output signal switching, suitable for controlling fast-acting devices in time-sensitive safety applications.

• Simple Integration – Seamlessly integrates with Triconex control systems, ensuring smooth communication with other safety and control modules.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Oil & Gas – Controls safety devices such as emergency shutdown valves and relays in critical production systems.

• Power Generation – Enables safe control of safety-critical devices such as turbine shut-off valves and emergency cooling systems.

• Chemical Processing – Ensures reliable output control for safety systems in hazardous chemical processes, protecting both personnel and equipment.

• Mining – Used for controlling high-speed and high-integrity safety devices, including relays for machine protection and shutdown.

• Water Treatment – Used in water and wastewater treatment plants to control critical safety valves and systems.

The Triconex 3625C Digital Output Module ensures safe, reliable, and high-integrity control in safety-critical applications. With its SIL3 certification, redundant outputs, and real-time diagnostics, this module is ideal for maintaining safety and operational efficiency in challenging industrial environments.
