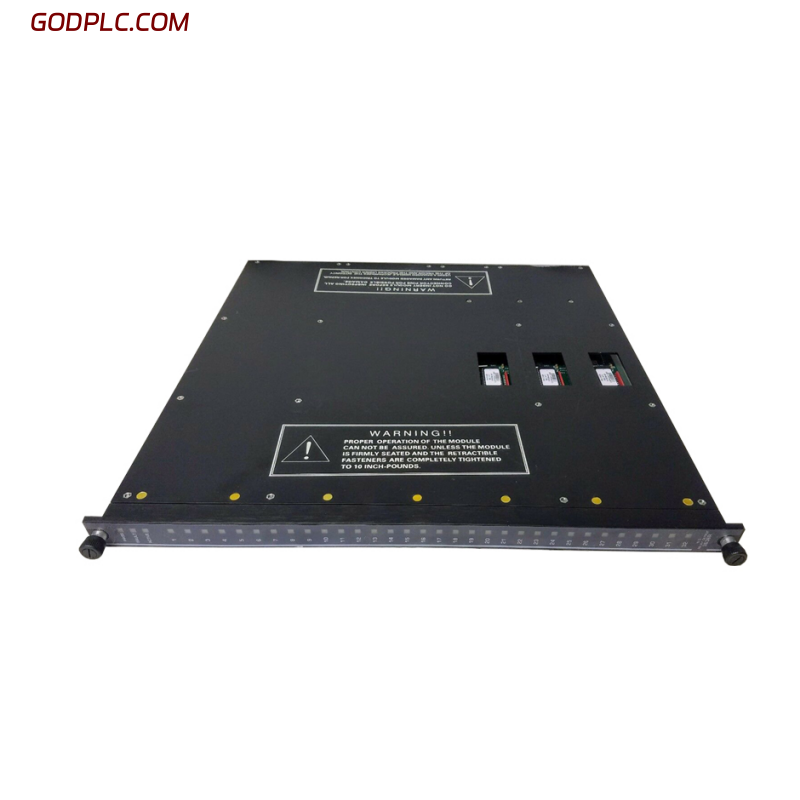

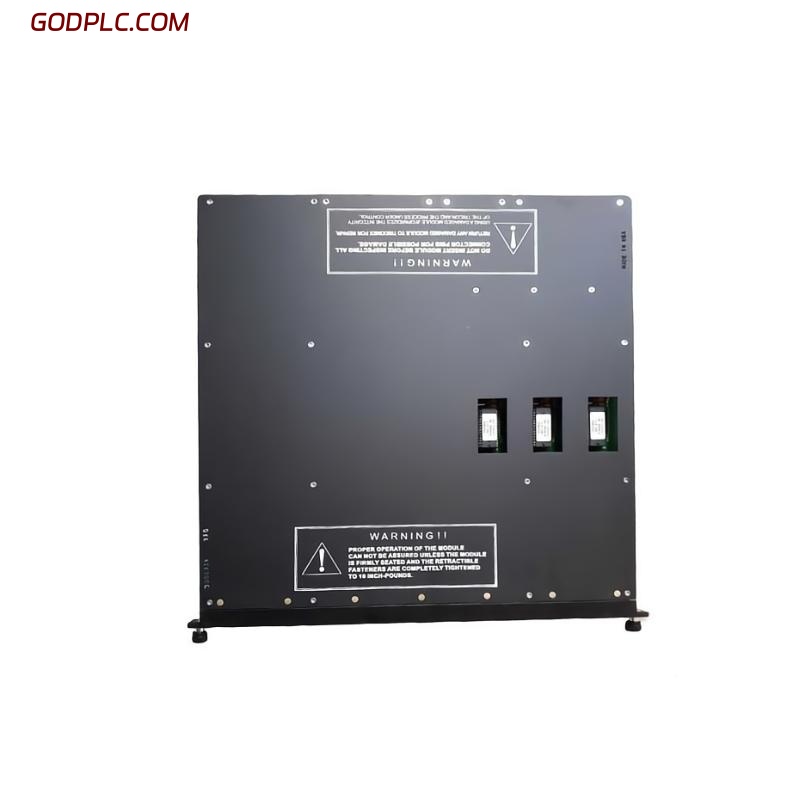

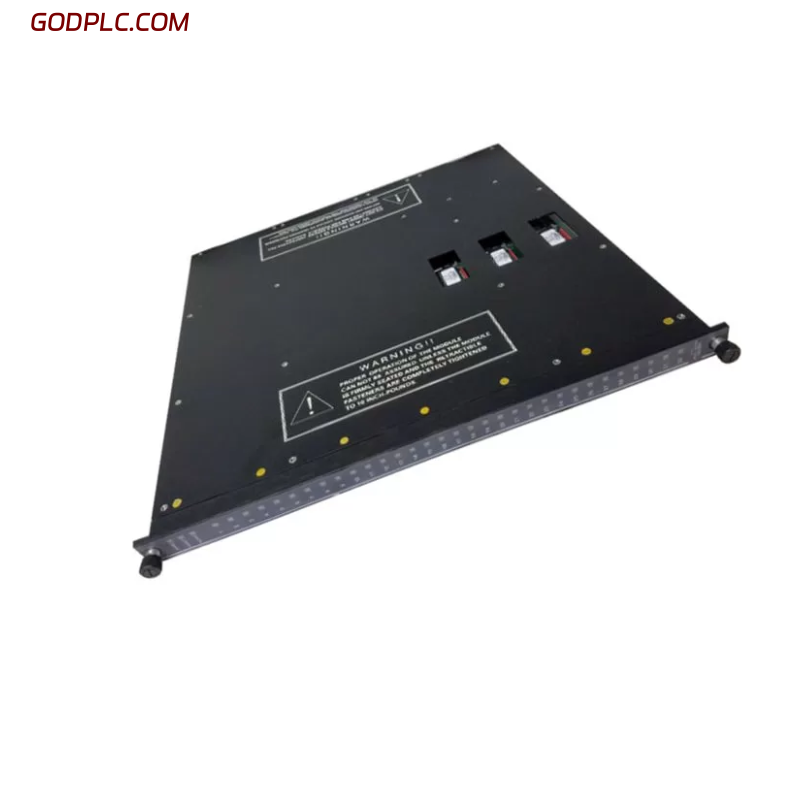

Triconex 3636R Relay Output Module
Product Overview
The Triconex 3636R Relay Output Module is a safety-rated output module designed for use in Triconex Tricon safety systems. It provides isolated relay outputs to control external devices such as motors, solenoids, alarms, and indicator lamps. With robust fault tolerance, isolation, and diagnostic capabilities, the 3636R module ensures secure and dependable actuation in safety-critical industrial applications. Its redundant architecture and comprehensive system integration make it ideal for applications requiring maximum reliability.
Key Features
-
Relay-Based Output Design – Uses electro-mechanical relays to switch field devices, ensuring strong electrical isolation
-
High Safety Integrity – SIL 3 certified for use in safety instrumented systems (SIS)
-
Redundant Architecture – Supports fault-tolerant system configurations with active diagnostics
-
Channel Isolation – Each output channel is individually isolated for enhanced system protection
-
Diagnostic Coverage – Built-in self-tests and system diagnostics to detect stuck or failed relays
-
Hot-Swappable – Module can be replaced without system downtime or compromising safety
-
Versatile Output Control – Suitable for on/off control of a wide range of field actuators
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 490 x 453 x 68 mm |
| Weight | 1.26 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Type | Relay (form A, normally open) |
| Number of Channels | 32 channels |
| Contact Rating | 2 A @ 30 VDC / 0.5 A @ 125 VAC |
| Isolation | 1500 V channel-to-channel and to system |
| Switching Voltage | Up to 125 VAC or 30 VDC |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Triconex Tricon safety systems |
| Module Type | Relay output module |
| Certification | SIL 3 (IEC 61508), TUV-certified |
Industry Applications
-
Oil and Gas – For emergency shutdown (ESD), fire & gas, and burner management systems
-
Power Generation – Enables safe control of breakers, dampers, and other actuators
-
Chemical and Petrochemical – Ensures safe isolation and interlock operations
-
Pharmaceutical Manufacturing – Provides validated output switching in GxP environments
-
Water Treatment Plants – Used in safety shutdown and control logic for critical processes
The Triconex 3636R Relay Output Module offers robust, fault-tolerant performance for controlling external field devices in high-integrity safety systems. With its advanced diagnostics, relay isolation, and redundancy support, it is a trusted solution in industries requiring maximum uptime and strict adherence to safety standards.
Triconex 3636R Relay Output Module is in stock. Please contact us for a quick quote and competitive pricing.
