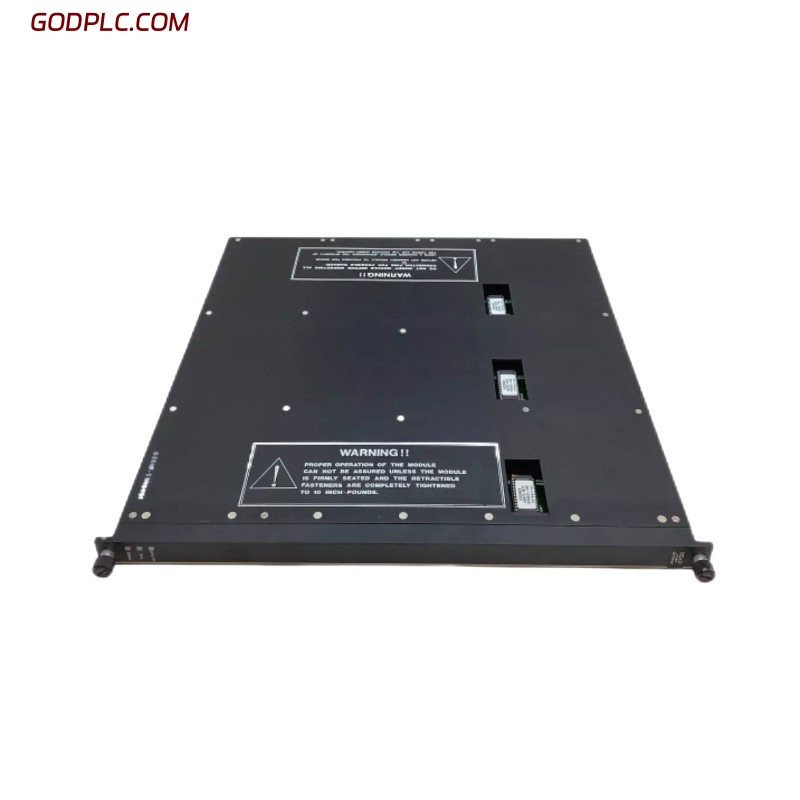

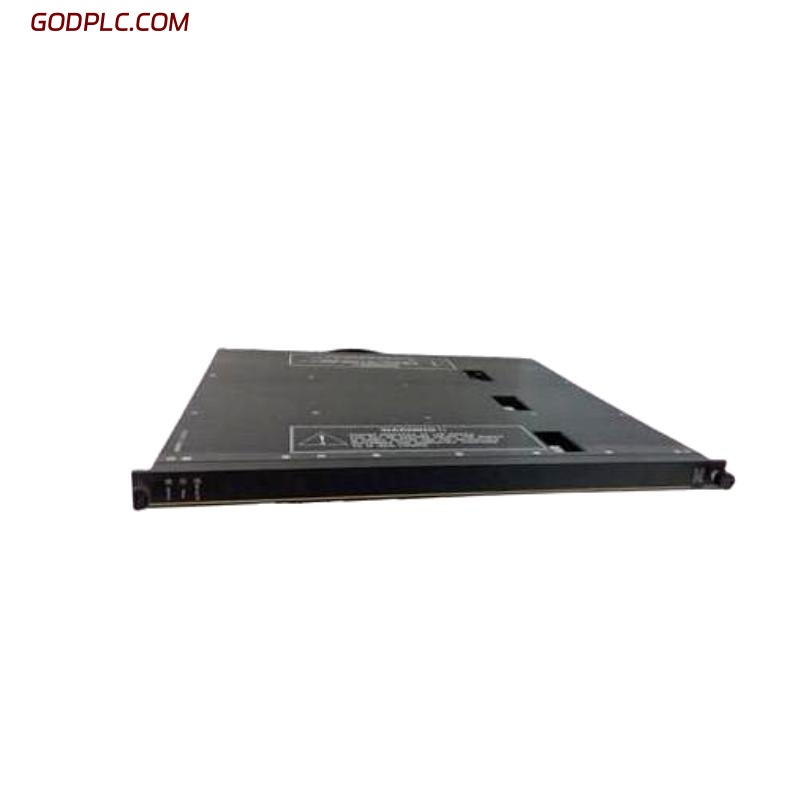

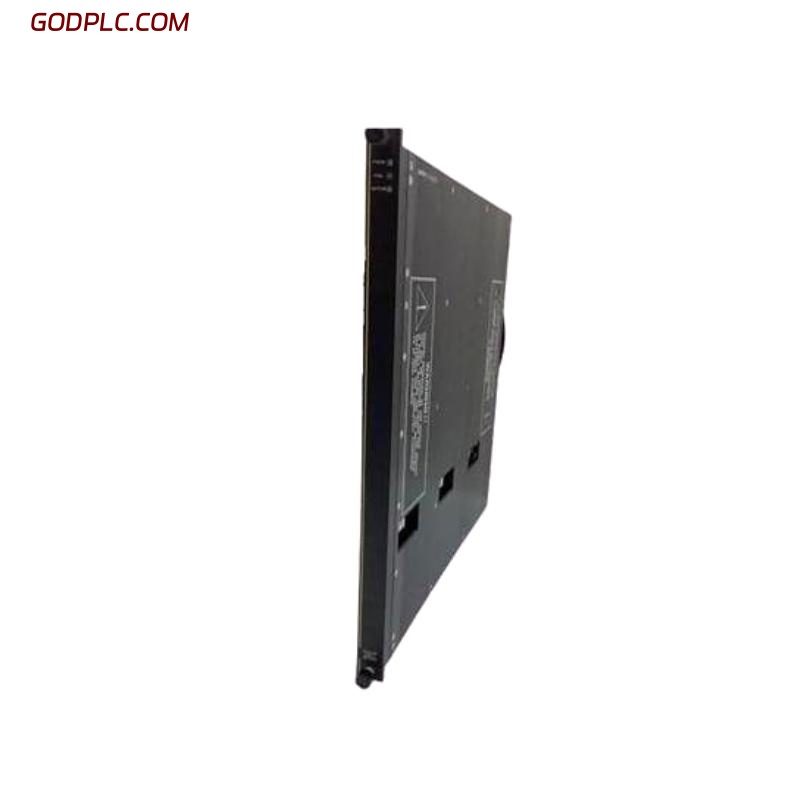

Triconex 3700 Analog Input Modules

Product Overview
The Triconex 3700 Analog Input Modules are designed to deliver reliable, high-accuracy analog signal acquisition in critical process control applications. As part of the Tricon™ safety and control system, these modules are engineered for high-integrity, fault-tolerant operations, offering seamless integration with the Triconex platform. With up to 16 channels per module and the ability to handle a wide range of analog input types, the 3700 series ensures precise data acquisition for monitoring and controlling industrial processes. The module is built to provide redundancy and maintain system integrity in the most demanding environments, making it ideal for use in industries such as oil & gas, chemical processing, and power generation.

Key Features

• Multi-Channel Input – Supports up to 16 analog input channels per module, enabling efficient signal management for complex systems

• High Accuracy – Features 16-bit resolution for precise data conversion, ensuring high-fidelity signal representation

• Wide Input Range – Compatible with various input types, including voltage (±10V) and current (4–20 mA) signals, offering flexibility in sensor integration

• Hot-Swap Capability – Allows for module replacement without system shutdown, minimizing downtime during maintenance or upgrades

• Integrated Diagnostics – Provides built-in diagnostics and fault detection, facilitating easy troubleshooting and ensuring operational reliability

• Redundant Configuration – Supports redundant configurations for high-availability applications, enhancing fault tolerance and system reliability

• Safety Compliance – Designed to meet rigorous safety standards for mission-critical applications, ensuring system integrity and safety during operation

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Oil & Gas – Enables precise control of parameters such as pressure, temperature, and flow in upstream and downstream operations

• Power Generation – Facilitates monitoring and control of turbine and generator systems, as well as environmental systems like cooling and ventilation

• Chemical Processing – Ensures accurate measurement and control of critical process variables, such as pressure, temperature, and chemical flow rates

• Pharmaceutical Manufacturing – Provides high-accuracy analog inputs for process control in pharmaceutical production and quality assurance systems

• Water and Wastewater Treatment – Ensures stable operation and precise control over water treatment processes, including filtration and chemical dosing

The Triconex 3700 Analog Input Modules provide high-accuracy, reliable signal acquisition for mission-critical industrial applications. With features like redundancy, fault diagnostics, and multi-channel support, they are an essential part of any high-integrity control system requiring precise analog data.
