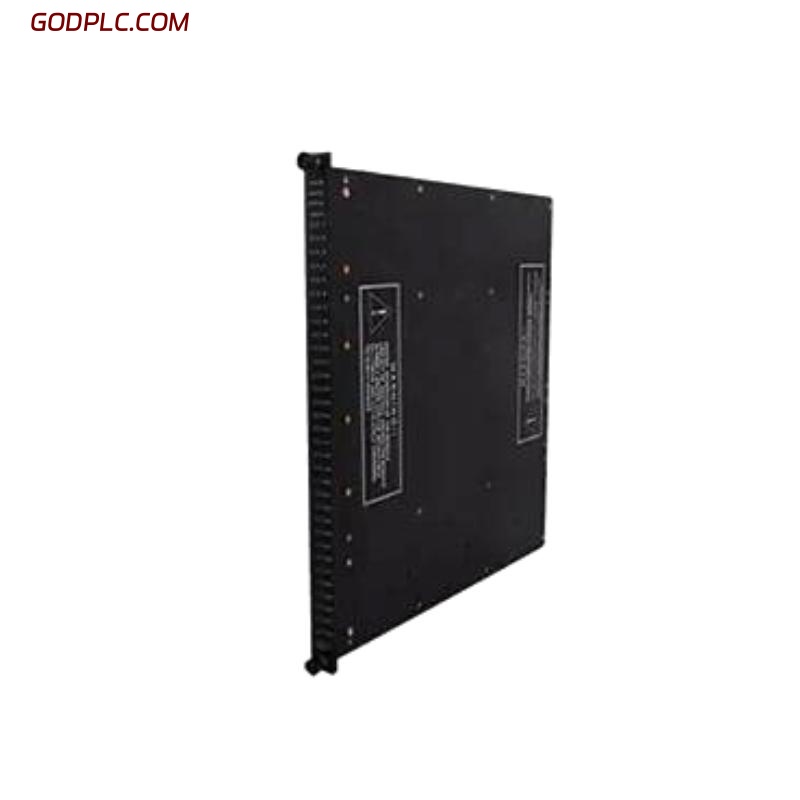

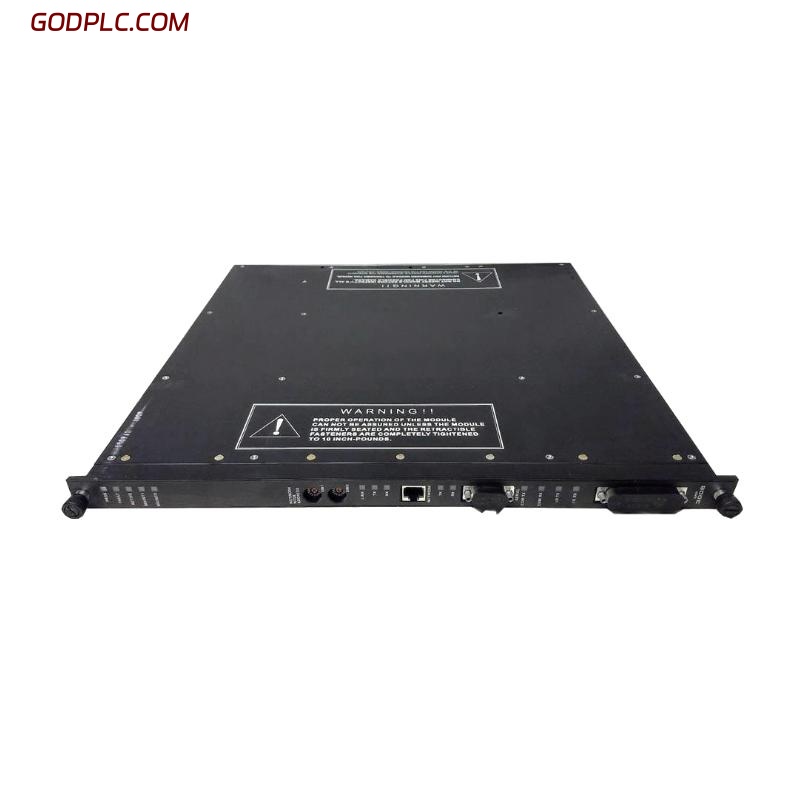

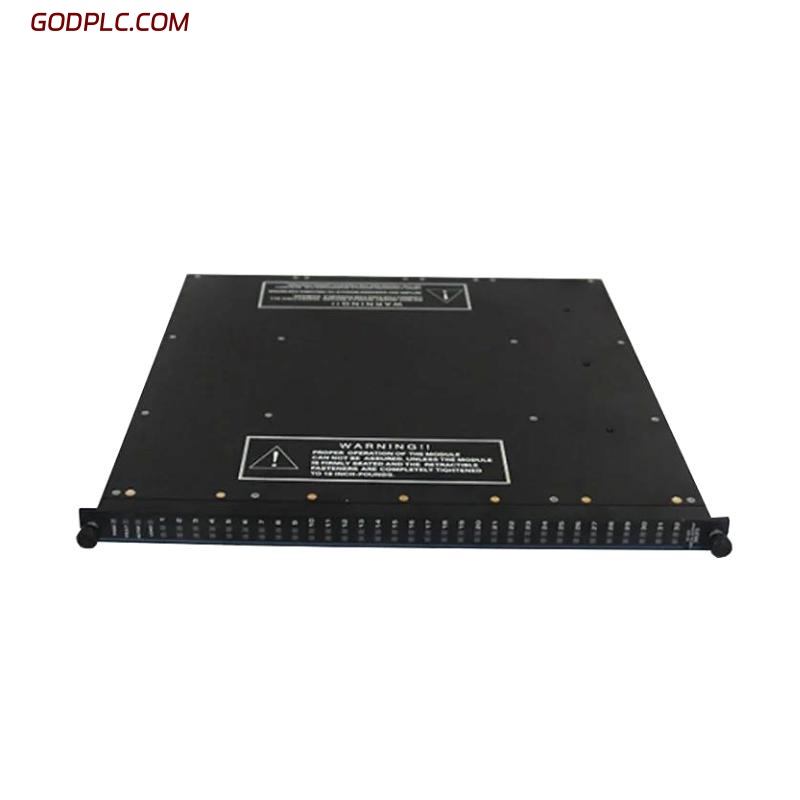

Triconex 3850 Digital Input Modules

Product Overview

The Triconex 3850 Digital Input Module is a high-reliability module designed for use in Triconex safety systems, specifically engineered for critical safety applications that require precise and dependable digital signal input. This module enables the detection of on/off signals from field devices, such as limit switches, proximity sensors, and emergency stop buttons. The 3850 module plays a vital role in monitoring safety-critical processes by providing accurate and timely input signals to the Triconex control system. With its robust design and fault-tolerant architecture, it is suitable for use in industries like oil & gas, chemical processing, power generation, and manufacturing.

Key Features

• High-Quality Digital Input Detection – Provides reliable detection of digital signals (on/off) from a wide range of field devices to ensure precise control and safety monitoring.

• Redundant Design for High Availability – Supports redundant configurations to maximize uptime and ensure continued operation in case of component failure, improving system availability.

• Wide Input Voltage Range – Accepts a broad range of input voltages, enabling compatibility with various field devices, including 24 VDC, 48 VDC, and others.

• Safety-Certified – Fully compliant with IEC 61508 and ISO 13849 standards, making it ideal for use in safety-related systems in critical industries.

• Built-In Diagnostics – Includes comprehensive diagnostic features to detect faults or issues early, minimizing system downtime and preventing unsafe conditions.

• Wide Environmental Tolerance – Designed to operate reliably in harsh industrial environments, with excellent resistance to temperature extremes, vibration, and electrical noise.

• Flexible Mounting – The module can be mounted on DIN rails, offering ease of installation and space efficiency in industrial control panels.

• Easy Integration – Seamlessly integrates with Triconex’s fault-tolerant control systems, providing a high level of flexibility and scalability in system design.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Oil & Gas – Used for monitoring critical safety devices such as emergency stop buttons, pressure switches, and flow meters in offshore platforms and refineries.

• Power Generation – Detects digital signals from safety switches and other field devices in power plants, ensuring operational continuity and safety during emergency shutdowns.

• Chemical and Petrochemical – Monitors key safety devices in chemical plants, providing reliable input for process control and safety systems.

• Manufacturing – Used in automated production lines to detect digital signals from sensors and safety devices, contributing to the overall safety of the production process.

• Water and Wastewater – Supports safety monitoring in water treatment plants, detecting digital signals from flow, pressure, and temperature monitoring devices to prevent system failures.

The Triconex 3850 Digital Input Module provides reliable, fault-tolerant digital input detection for critical safety systems. Its wide compatibility, built-in diagnostics, and robust environmental tolerance make it an essential component in industrial control systems where safety and operational reliability are paramount.
