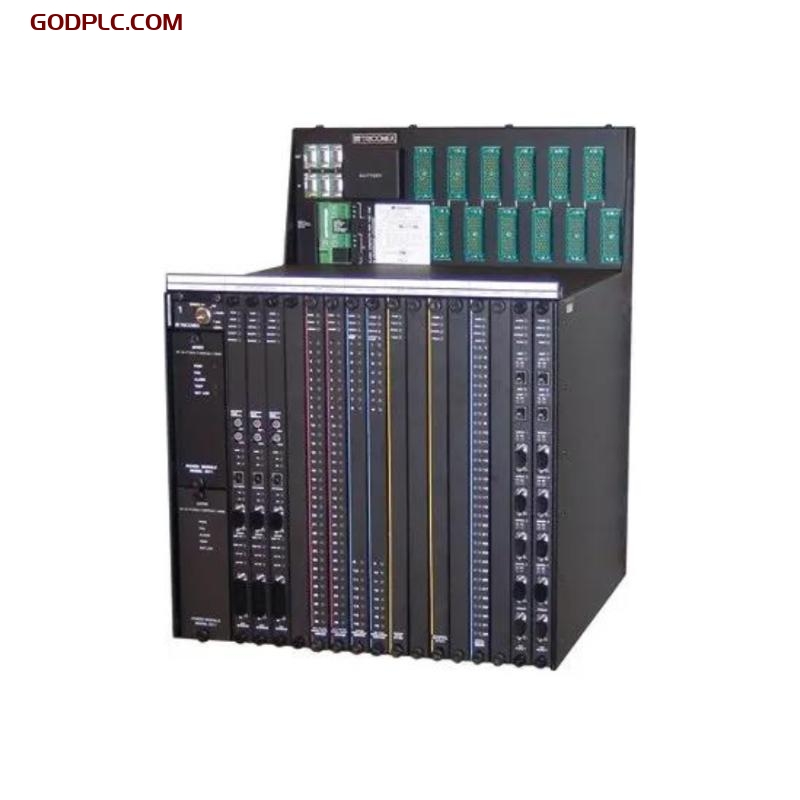

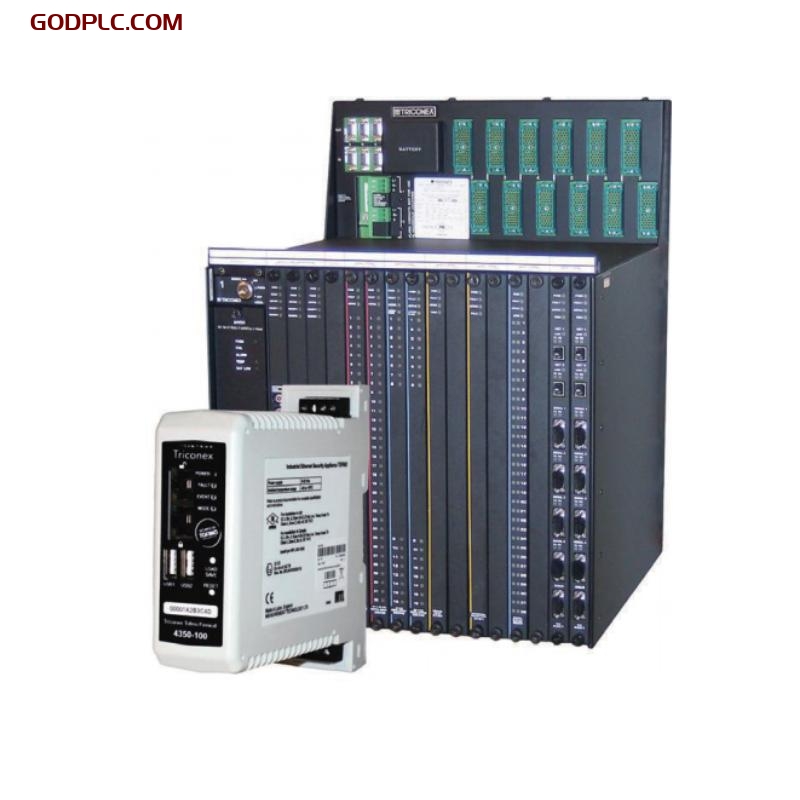

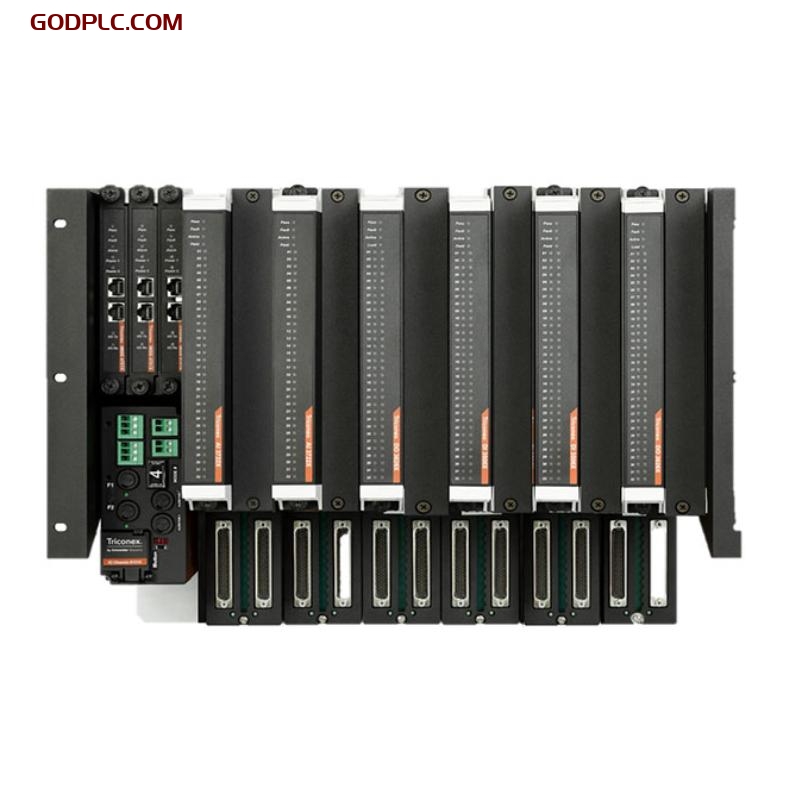

Triconex 8101 Expansion Chassis
Product Overview
The Triconex 8101 Expansion Chassis is a low-density I/O expansion chassis designed to extend the capacity and functionality of Triconex safety instrumented systems. It accommodates a range of I/O and communication modules, enabling flexible and scalable system configurations. Designed for use in safety-critical applications, the 8101 chassis ensures reliable signal handling, secure module communication, and seamless integration with Tricon main processors through triplicated architecture.
Key Features
-
Triplicated Backplane Architecture: Supports fault-tolerant operations for high-integrity systems.
-
Modular Slot Design: Provides space for up to four I/O or communication modules.
-
System Redundancy Support: Enables connection to redundant Tricon controllers for high availability.
-
Rugged Industrial Design: Built to operate reliably in harsh environmental conditions.
-
Easy System Expansion: Allows integration of additional I/O without system reconfiguration.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 483 x 578 x 451mm |
| Weight | 19.7 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC |
| Backplane Bus Type | Triplicated RS-485 |
| Power Consumption | ≤ 2.0 W |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, CSA, ATEX |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Tricon v9 and v10 safety systems |
| Mounting | Rack-mounted, standard Tricon format |
Industry Applications
-
Oil & Gas: Expands critical safety I/O capacity for drilling, refining, and pipeline systems.
-
Power Generation: Supports turbine control and safety shut-down systems.
-
Chemical and Petrochemical: Provides modular I/O capabilities for hazardous process control.
-
Water Treatment: Integrates seamlessly into water and wastewater SCADA systems.
-
Pulp and Paper: Offers reliable expansion for boiler and process safety functions.
The Triconex 8101 Expansion Chassis provides a compact, reliable, and high-integrity solution for extending Triconex system capabilities. Its robust architecture and industry-proven performance make it ideal for expanding safety and automation systems in the most demanding environments.
Triconex 8101 Expansion Chassis is in stock. Please contact us for a quick quote and competitive pricing.
