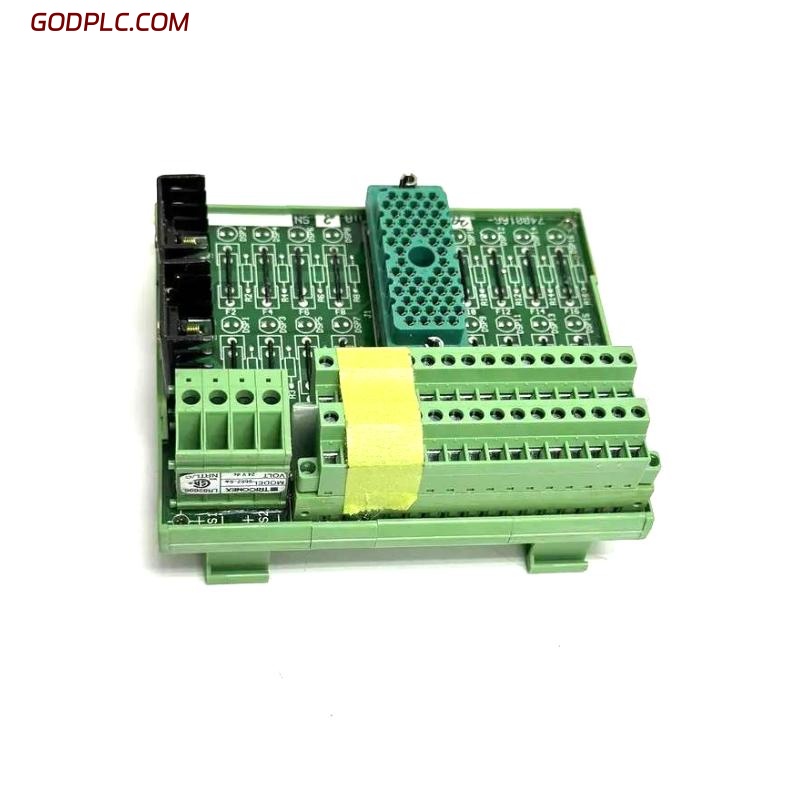

Triconex 9562 7400165-280 Terminal Board Module
Product Overview
The Triconex 9562 7400165-280 Terminal Board Module is designed to facilitate secure and reliable connections between field devices and the Triconex Tricon™ safety system. This terminal board module provides a flexible and user-friendly interface for wiring I/O modules, ensuring optimal signal transmission and system performance. With its robust construction and compact design, the 9562 terminal board module is well-suited for use in safety-critical applications where reliability, durability, and ease of installation are essential. Ideal for both new installations and maintenance, it ensures the efficient and safe operation of industrial control systems.
Key Features
-
Reliable Field Connections – Provides secure and stable signal connections between field devices and the Triconex Tricon™ system, ensuring continuous system performance
-
Efficient Installation and Maintenance – Easy-to-use design with clearly labeled terminals for fast installation and troubleshooting, reducing system downtime
-
Durable Construction – Built to withstand harsh industrial conditions, including exposure to vibration, temperature extremes, and electrical noise
-
Space-Saving Design – Compact form factor, ideal for integration into control cabinets and industrial racks where space is limited
-
Wide Compatibility – Supports a wide range of field devices and signal types, offering flexibility in system design and expansion
-
Meets Safety Standards – Designed to meet rigorous safety standards for use in industrial control and safety systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 200 x 150 x 50mm |
| Weight | 0.5 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Rating | 24 V DC |
| Current Rating | 10 A per terminal |
| Insulation Resistance | ≥100 MΩ at 500 VDC |
| Conductor Size | 0.2 mm² to 2.5 mm² |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Triconex Tricon™ system |
| Communication Protocol | Proprietary Triconex protocols |
Industry Applications
-
Safety Systems – Ideal for use in safety-critical applications across industries such as oil & gas, chemical processing, and power generation
-
Industrial Automation – Ensures reliable communication between field devices and control systems in automated industrial environments
-
Energy Sector – Supports integration with field devices in power generation and distribution systems, ensuring smooth and safe operations
-
Manufacturing – Provides secure and reliable signal connections for machine control and process monitoring
-
Transportation – Used in critical infrastructure systems like railways and airports, ensuring the safety and reliability of communication systems
The Triconex 9562 7400165-280 Terminal Board Module offers a robust and efficient solution for connecting field devices to the Triconex Tricon™ safety system. Its easy installation, compact design, and high reliability make it an essential component for ensuring safe and continuous operation in industrial safety systems.
Triconex 9562 7400165-280 Terminal Board Module is in stock. Please contact us for a quick quote and competitive pricing.
