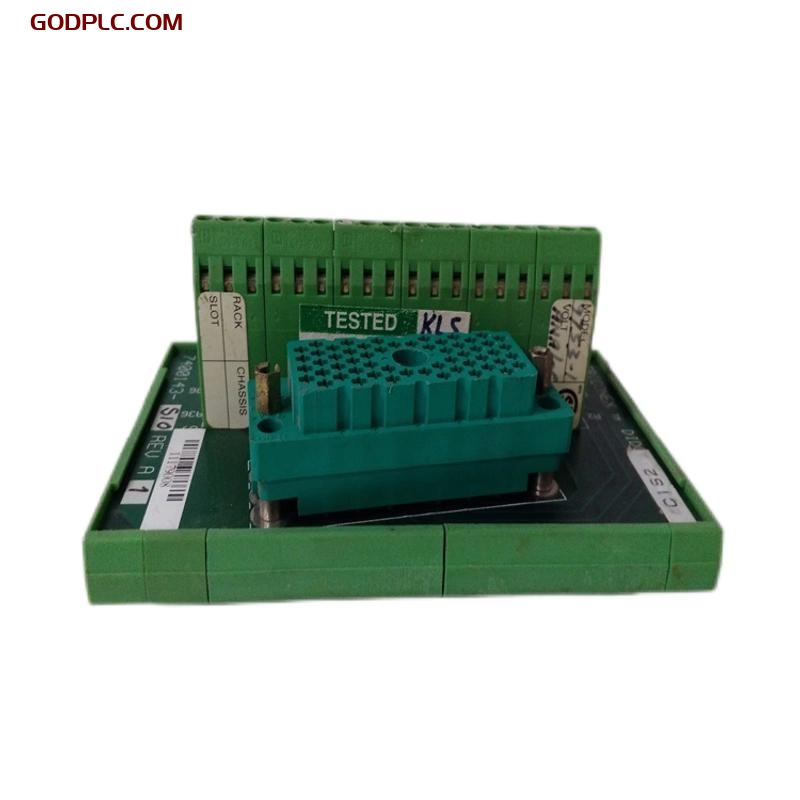

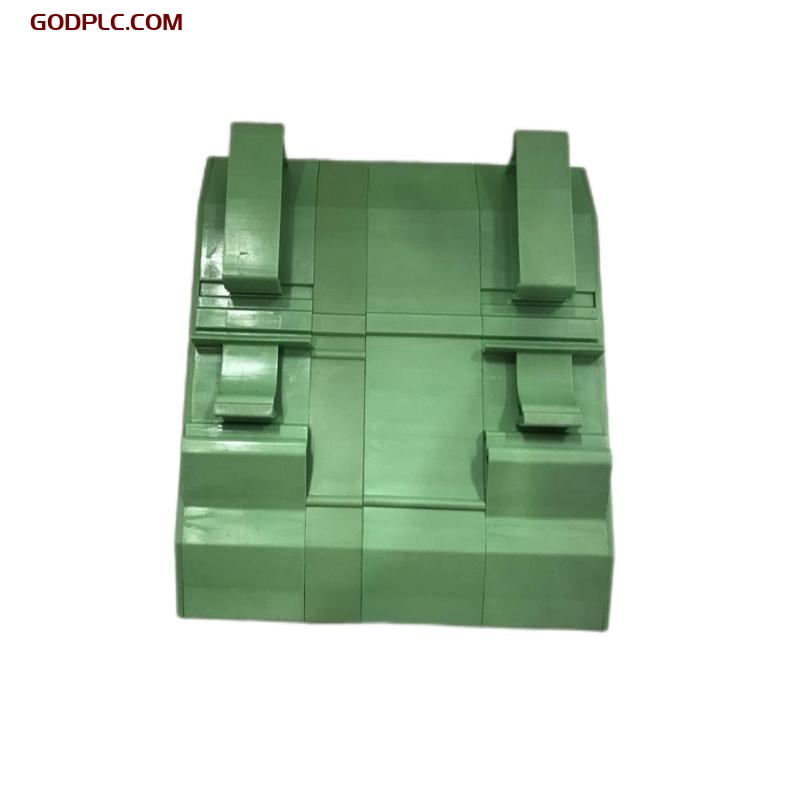

Triconex 9771-2XX 7400195-210 Analog Input Terminal Board
Product Overview
The Triconex 9771-2XX 7400195-210 Analog Input Terminal Board is a specialized field termination unit designed for reliable and secure interfacing of analog input signals to Triconex safety systems. It plays a critical role in delivering clean and accurate analog signal connections from field instruments such as transmitters and sensors to the associated input modules of a Tricon controller.
This terminal board is engineered to ensure optimal performance, ease of wiring, and long-term reliability in safety- and mission-critical industrial applications. It is used in conjunction with Triconex analog input cards to complete the signal loop and maintain data integrity in hazardous and high-availability environments.
Key Features
-
Secure Analog Signal Termination: Facilitates safe and reliable termination of analog field inputs
-
Triconex System Compatibility: Fully compatible with Tricon analog input modules
-
High Signal Integrity: Provides excellent shielding and minimal noise interference
-
Compact Form Factor: Optimized design for space-saving installations
-
Labelled Terminals: Clearly marked channels simplify installation and maintenance
-
Durable Industrial Design: Withstands tough environmental and operational conditions
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 114.3 × 145.52 × 107.95 mm |
| Weight | 0.9 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | 9771-2XX |
| Part Number | 7400195-210 |
| Module Type | Analog Input Terminal Board |
| Channel Support | Supports up to 32 Analog Input Channels |
| Mounting | DIN Rail / Panel Mountable |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Signal Type | 4–20 mA / 0–10 V (depending on module) |
| Voltage Isolation | 1500 V RMS |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Triconex Analog Input Modules |
| Wiring Type | Shielded Twisted Pair (Recommended) |
| Terminal Type | Screw Terminals |
| Labeling | Pre-labeled Channel Identification |
Industry Applications
-
Oil & Gas: Connects analog instrumentation in refineries, pipelines, and offshore platforms
-
Power Generation: Interfaces with temperature, pressure, and flow transmitters in turbine systems
-
Chemical Processing: Accommodates a wide range of analog sensors used in batch and continuous processing
-
Pharmaceuticals: Ensures accurate analog signal transmission in validated automation systems
-
Water Treatment: Terminates analog inputs for level, flow, and quality monitoring devices
-
Industrial Manufacturing: Supports precision analog control in high-reliability production processes
The Triconex 9771-2XX 7400195-210 Analog Input Terminal Board offers a high-reliability solution for terminating and organizing analog signals within Triconex safety systems. Its rugged construction and compatibility with Tricon analog input modules make it essential for mission-critical applications requiring secure analog signal handling.
Triconex 9771-2XX 7400195-210 Analog Input Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
