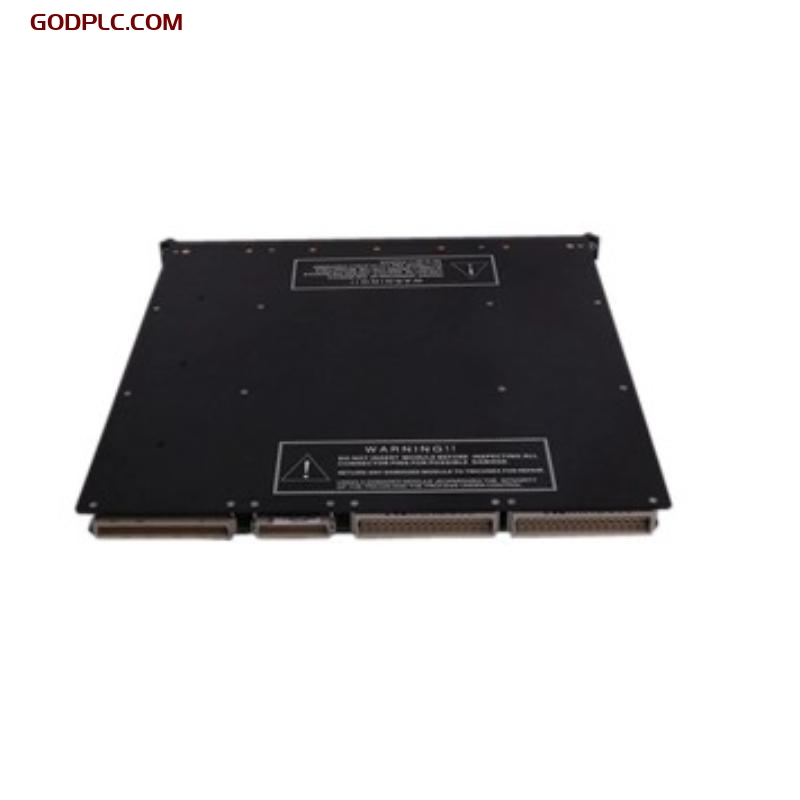

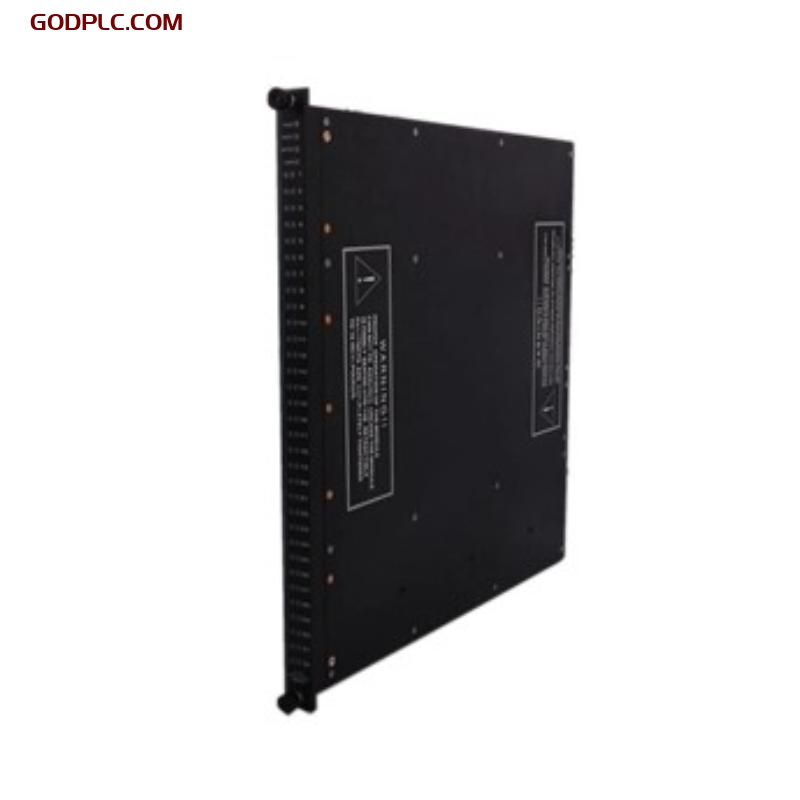

Triconex 9802 Digital Input Modules
Product Overview
The Triconex 9802 Digital Input Module is a high-integrity, fault-tolerant I/O module designed for use with the Triconex safety and control system. It captures discrete signals from field devices and communicates them reliably to the control processor for real-time monitoring and decision-making. With advanced diagnostics, redundant design, and compatibility with Tricon fault-tolerant architecture, the 9802 module ensures maximum safety and system availability in critical industrial applications.
Ideal for environments where safety, reliability, and accuracy are essential, such as in oil & gas, nuclear power, and chemical processing, the Triconex 9802 module supports hot-swapping and comprehensive error detection to maintain continuous plant operations without compromising safety.
Key Features
-
Triple Modular Redundancy (TMR): Ensures fault tolerance with triple-redundant architecture for high availability.
-
Comprehensive Diagnostics: Advanced error detection and reporting for increased system visibility and easier troubleshooting.
-
Hot-Swappable Design: Enables module replacement without system shutdown, ensuring uninterrupted operations.
-
High-Speed Processing: Fast signal acquisition and real-time data transmission to the processor.
-
Electrically Isolated Channels: Protects the system from electrical interference and field faults.
-
System Compatibility: Seamlessly integrates with Triconex systems for safety-critical applications.
-
Wide Input Range: Accepts various digital signal types from field instruments.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 132 x 205 x 48 mm |
| Weight | 2.267 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | 9802 |
| Manufacturer | Triconex |
| Type | Digital Input Module |
| Channels | 32 digital input channels |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting | Tricon main chassis |
| Power Supply | 5 V DC (from backplane) |
3.3 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage Range | 0–32 V DC (nominal 24 V DC) |
| Input Threshold | 8–11 V (typical) |
| Input Type | Sink or source compatible |
| Isolation | 1500 V RMS channel-to-system |
| Channel Status LEDs | Individual indicators per channel |
| MTBF | > 200,000 hours |
| Safety Standards | SIL 3 certified (per IEC 61508) |
Industry Applications
-
Oil & Gas: Monitors critical field signals for emergency shutdown systems and process control in refineries and offshore platforms.
-
Power Generation: Captures digital inputs from sensors and interlocks in turbine control and substation automation systems.
-
Chemical & Petrochemical: Ensures safe plant operation by detecting digital inputs for alarms, switches, and valve positions.
-
Water Treatment: Supports digital control of valves, gates, and safety interlocks in water and wastewater facilities.
-
Pharmaceutical Manufacturing: Provides high-integrity input signal monitoring in compliance with regulatory standards.
-
Industrial Automation: Enables scalable and safe integration of machine and process-level digital signals.
The Triconex 9802 Digital Input Module is purpose-built for mission-critical and safety-related applications. Its fault-tolerant design, precise signal monitoring, and robust integration capabilities make it a cornerstone of dependable industrial automation and safety systems.
Triconex 9802 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
