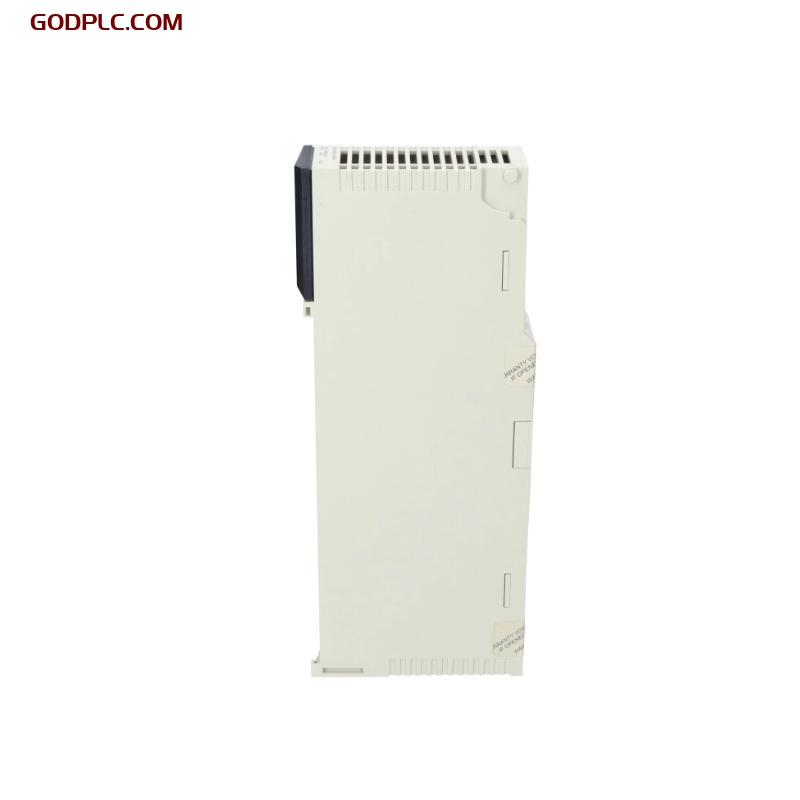

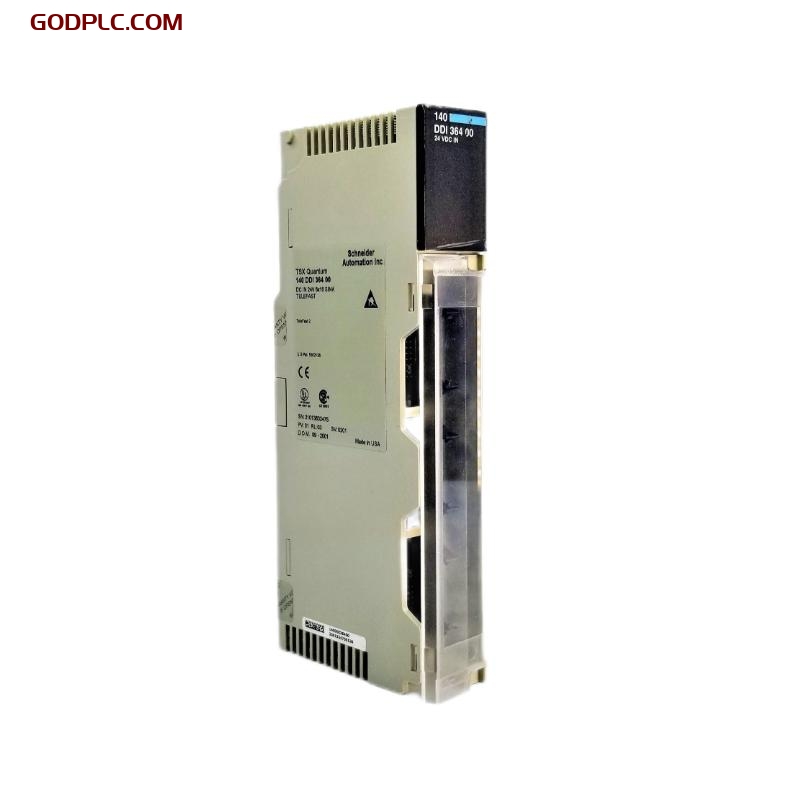

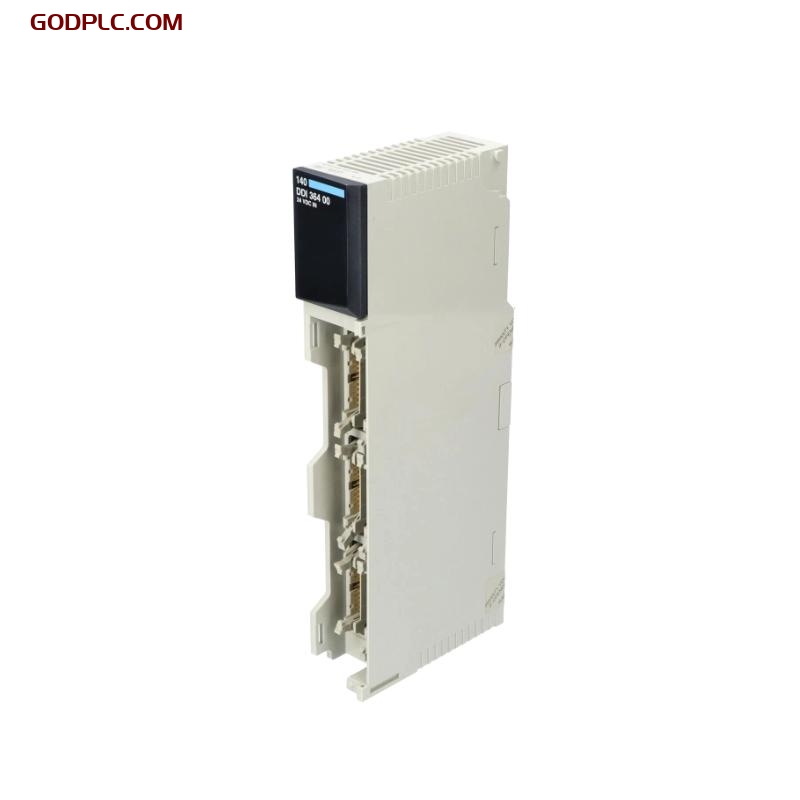

Schneider Electric 140DDI36400 – Discrete Input Module
Product Overview
The Schneider Electric 140DDI36400 is a 64-channel discrete input module designed for the Modicon Quantum automation platform. Engineered to receive 24 VDC input signals with positive logic (sourcing-type), it supports high-density signal acquisition in large-scale industrial applications. This module is built for reliability, fast response, and seamless integration with Quantum CPUs and remote I/O systems, making it ideal for high-speed digital signal processing in demanding control environments.
Key Features
-
64-Channel Digital Input – High-density input design for scalable control system expansion
-
24 VDC Positive Logic – Accepts sourcing-type digital inputs from field devices
-
Fast Input Response – Optimized for applications requiring rapid signal recognition
-
LED Indicators – Onboard LEDs for each channel simplify diagnostics and status monitoring
-
Field-to-Logic Isolation – Ensures electrical protection between I/O circuits and system bus
-
Modicon Quantum Compatible – Easily integrates into Quantum backplanes with auto-recognition
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC nominal |
| Input Type | Positive logic (sourcing-type) |
| Number of Inputs | 64 |
| Input Current | Approx. 7 mA per point |
| Input Impedance | Approx. 3.4 kΩ |
| Isolation | 1500 V RMS between channels and logic |
| Input Filtering | Typically 1 ms (software configurable) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Schneider Electric Modicon Quantum Series |
| Mounting | Quantum rack-mounted module |
| Configuration | Auto-detected via Unity Pro or EcoStruxure |
Industry Applications
-
Automotive Manufacturing – Captures high-speed input signals from sensors and switches
-
Power Generation – Interfaces with digital monitoring and protection devices
-
Oil & Gas Processing – Enables rapid data acquisition from field instruments
-
Material Handling Systems – Controls conveyor inputs and automated system feedback
-
Pharmaceutical Production – Monitors inputs from precision sensors and limit switches
The Schneider Electric 140DDI36400 discrete input module is a reliable and scalable choice for acquiring high-density 24 VDC signals within Modicon Quantum systems. Its robust construction and high channel count make it an ideal solution for complex, high-speed industrial automation applications.
Schneider 140DDI36400 Discrete input modules is in stock. Please contact us for a quick quote and competitive pricing.
