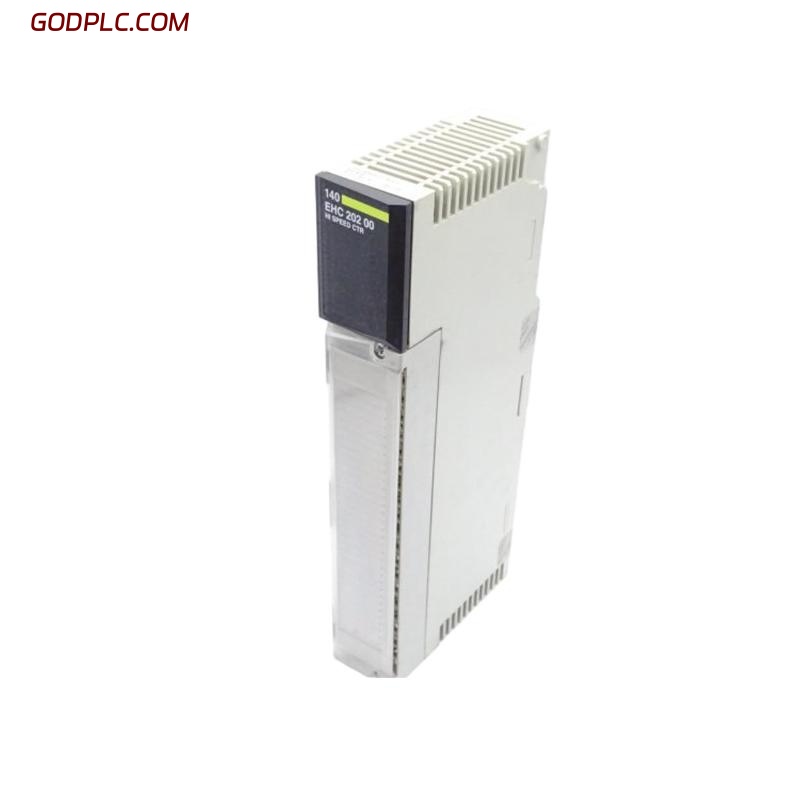

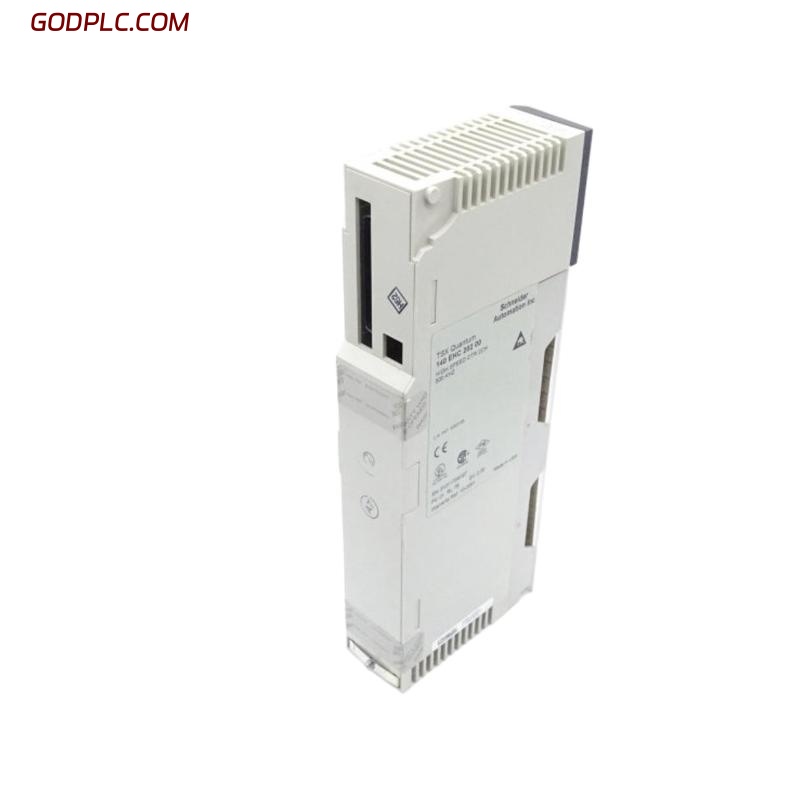

Schneider 140EHC20200 High-speed Counter Module
Product Overview
The Schneider 140EHC20200 is a high-speed counter module designed for use with the Modicon Quantum automation platform. It provides precise and rapid counting of pulses from encoders, sensors, or other pulse-generating devices in demanding industrial environments. With dual independent counter channels and high-speed input capability, this module enables accurate position tracking, speed measurement, and event counting in time-critical applications such as motion control, packaging, and material handling.
Key Features
-
Two Independent Counter Channels – Each channel can operate separately for flexible deployment
-
High-Speed Pulse Counting – Supports input rates up to 1 MHz for fast-moving equipment
-
Quadrature Encoder Support – Interfaces with incremental encoders for direction and speed detection
-
32-bit Count Range – Ensures extended counting capability without overflow
-
Real-Time Processing – Fast response time for critical control feedback loops
-
Modicon Quantum Integration – Seamlessly fits into existing Quantum racks and architecture
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size: 50 x 170 x 320 mm |
| Weight | Package size 0.444 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 2 independent high-speed counters |
| Input Signal Type | Pulse, quadrature (A/B/Z) |
| Input Frequency | Up to 1 MHz |
| Count Range | 32-bit signed or unsigned |
| Input Voltage | 5–24 VDC (typical), optically isolated |
| Input Format | Single-ended or differential (depending on wiring) |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | IEC/EN 61131-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Schneider Modicon Quantum PLC Systems |
| Configuration Software | Unity Pro, Concept, or ProWORX 32 |
| Module Type | High-speed counter input module |
Industry Applications
-
Motion Control Systems – Accurate position feedback for motors and actuators
-
Packaging Machinery – High-speed event counting for wrapping, sealing, and cutting cycles
-
Material Handling – Encoder-based speed and distance tracking for conveyors and sorters
-
Automotive Manufacturing – Real-time feedback for robotic and automated assembly systems
-
Textile and Printing – High-resolution pulse counting for synchronized operations
The Schneider 140EHC20200 High-speed Counter Module provides precise, high-speed counting capabilities essential for automation applications that demand fast and accurate input processing. Its dual-channel design and seamless integration with Quantum PLCs make it a powerful solution for advanced control in high-performance industrial environments.
Schneider 140EHC20200 High-speed Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
