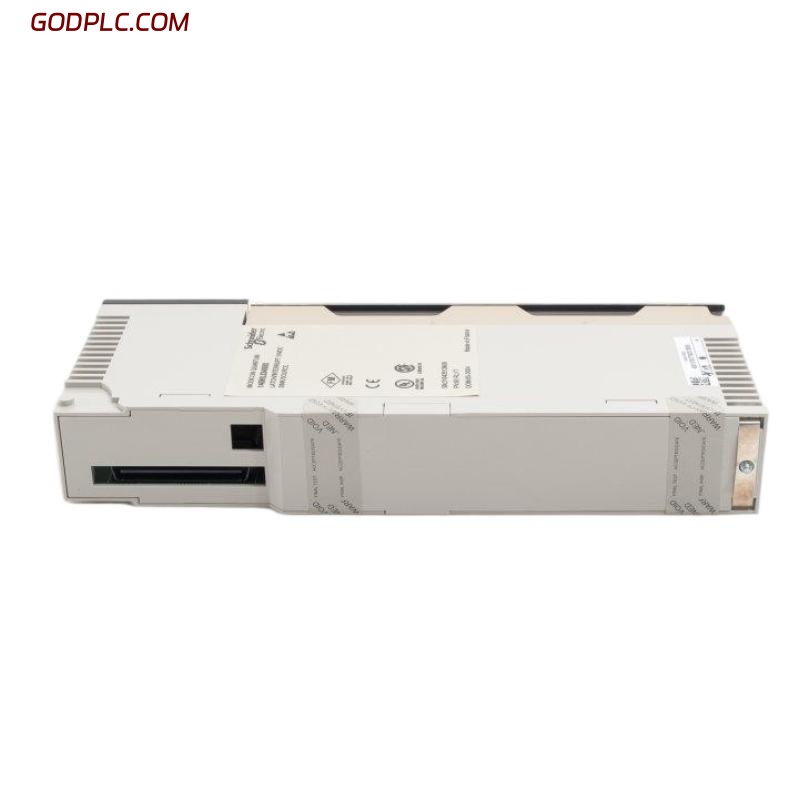

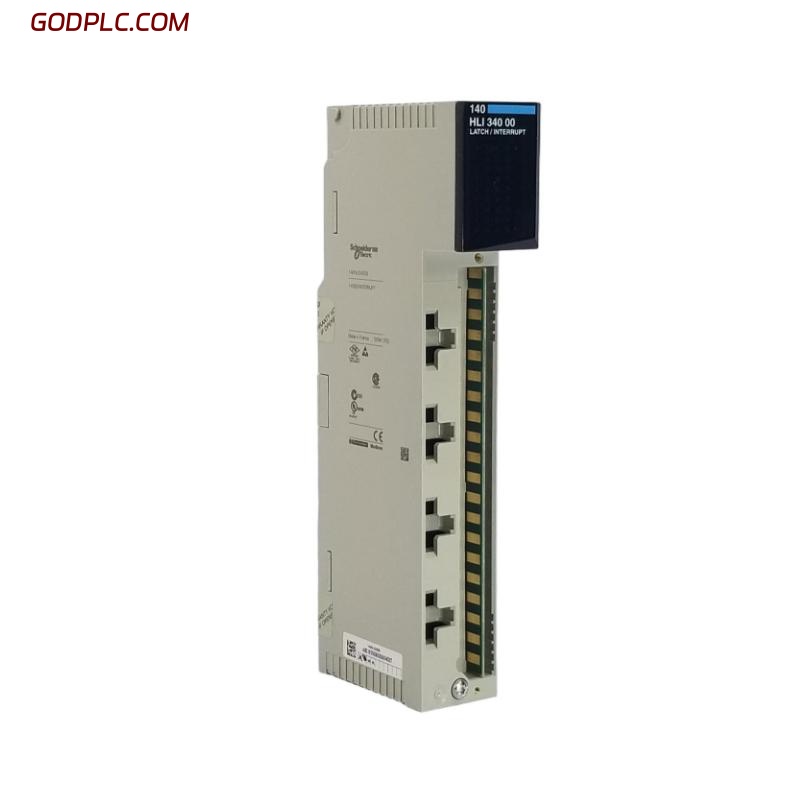

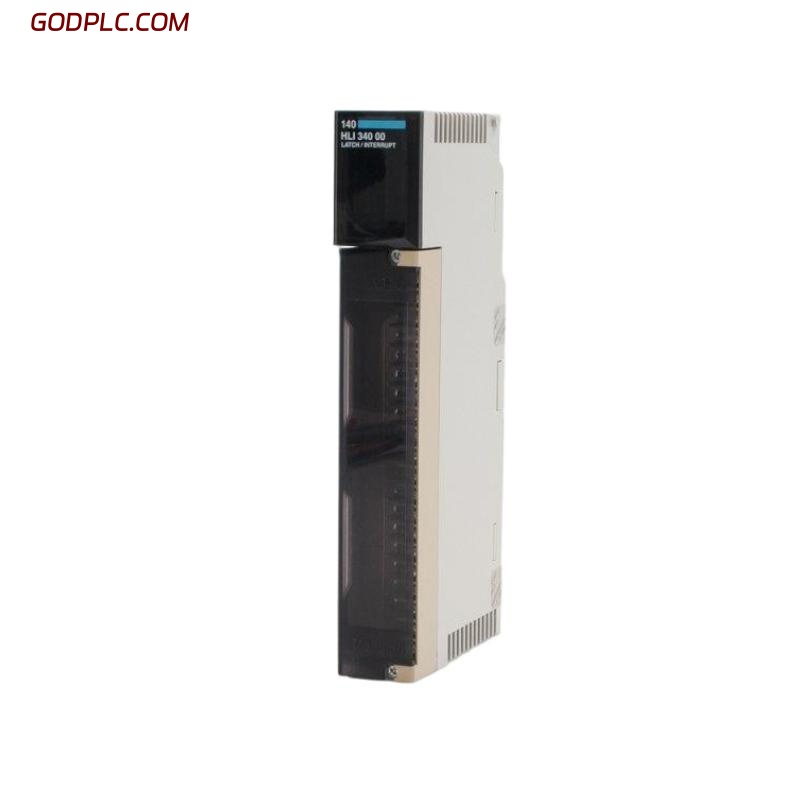

Schneider 140HLI34000 Latch/Interrupt Module

Product Overview

The Schneider 140HLI34000 Latch/Interrupt Module is designed to provide rapid detection and precise capture of critical input events within Schneider Electric’s Modicon Quantum control systems. This module offers high-speed latching and interrupt capabilities, making it essential for applications where precise timing and immediate response to fast digital signals are required. With robust construction and seamless integration, the 140HLI34000 enhances system performance in demanding industrial environments such as manufacturing, process automation, and energy management.

Key Features

• High-Speed Event Capture – Detects and records fast-changing digital inputs with precise timing

• Interrupt Generation – Provides immediate interrupt signals to the processor for real-time control actions

• Time-Critical Applications – Ideal for processes requiring rapid response, such as production line fault detection or machinery protection

• Robust Industrial Design – Resistant to vibration, electrical noise, and environmental stress for reliable long-term operation

• Seamless System Integration – Fully compatible with Schneider Modicon Quantum control platforms

• Enhanced Diagnostic Capabilities – Supports monitoring and troubleshooting of input signal sequences

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Manufacturing Automation – Provides fast event capture for machinery monitoring and safety interlocks

• Process Industries – Ensures rapid detection of process anomalies for immediate corrective action

• Power Generation – Supports time-critical input monitoring in turbine, generator, and substation systems

• Material Handling – Enables quick response to faults or position changes in conveyors and automated systems

• Oil & Gas – Provides fast digital signal capture for protective systems in drilling and refining operations

The Schneider 140HLI34000 Latch/Interrupt Module delivers high-speed event detection and reliable interrupt functionality for Schneider Quantum control systems. Its rugged design, precision performance, and ease of integration make it essential for industrial applications requiring immediate response to critical input signals.
