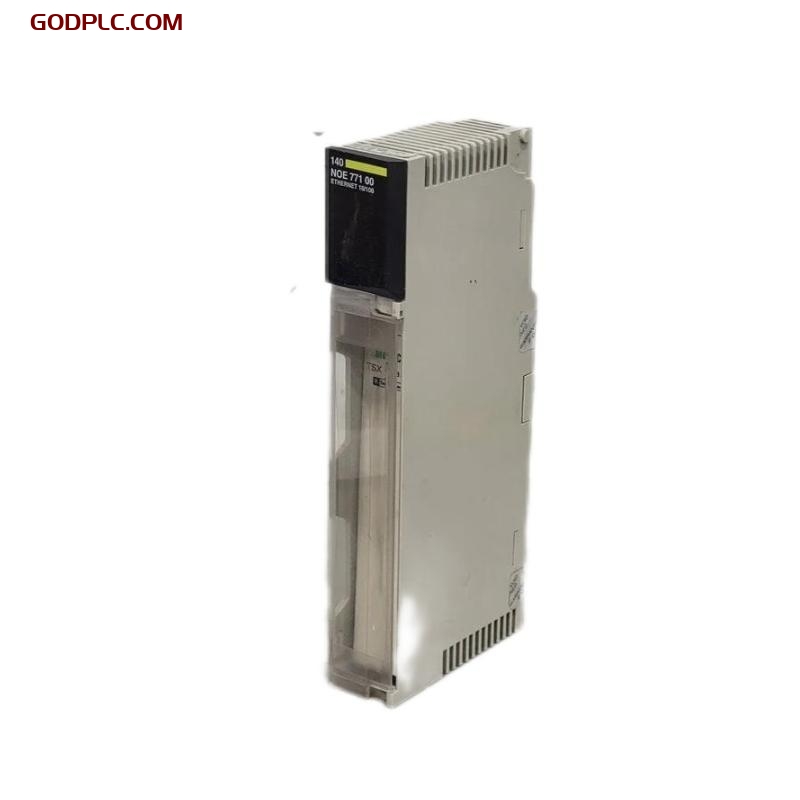

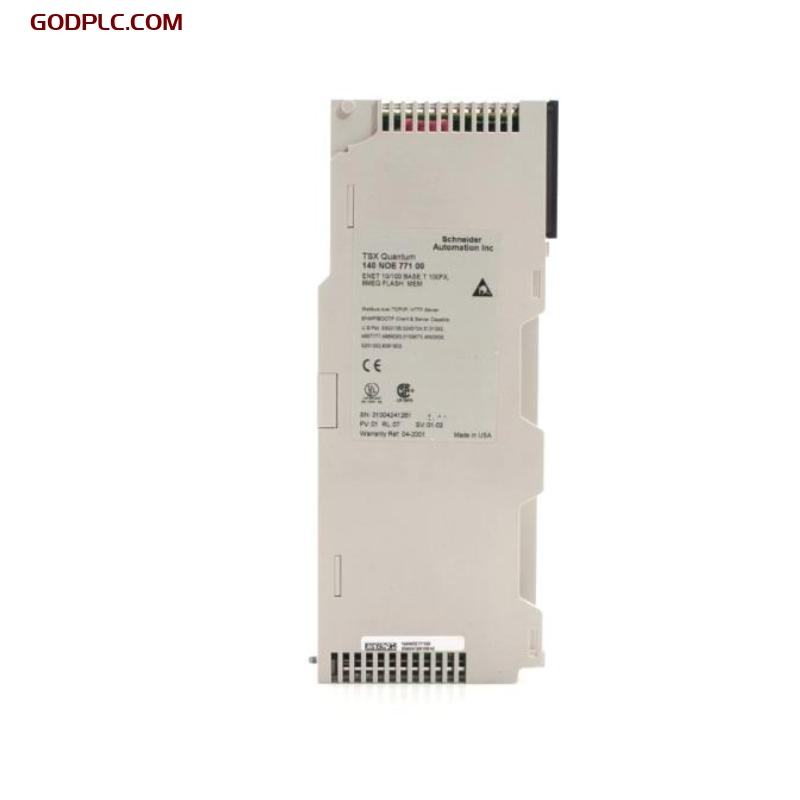

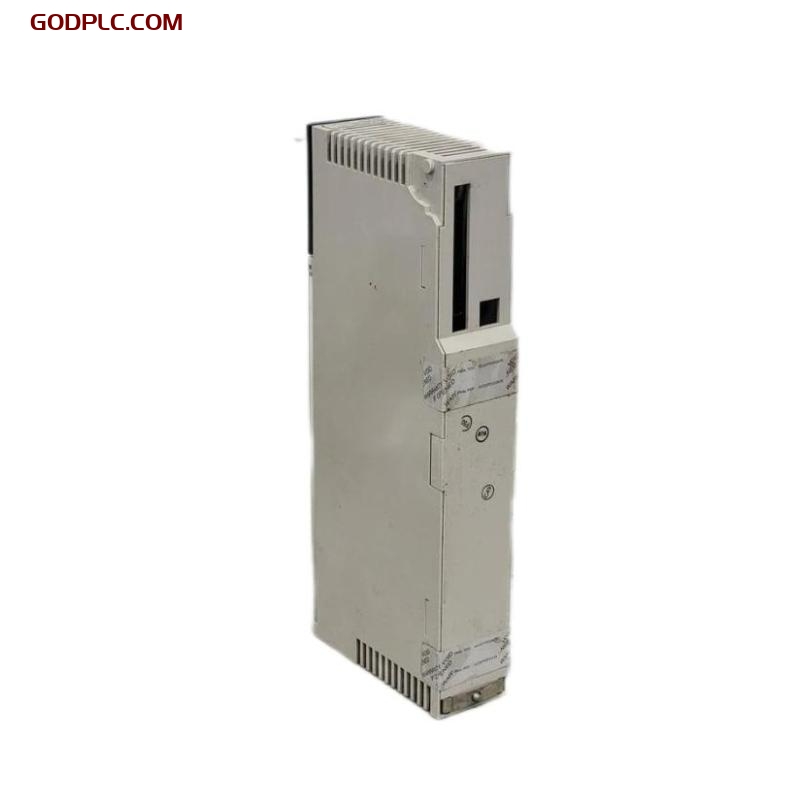

Schneider 140NOE77100 Ethernet TCP/IP Module
Product Overview
The Schneider 140NOE77100 Ethernet TCP/IP Module is designed to provide seamless communication between Schneider Electric’s Modicon programmable logic controllers (PLCs) and other industrial systems over Ethernet networks. With robust support for the TCP/IP protocol, this module enables efficient data transfer and system integration for a wide range of industrial applications. It is engineered for both reliability and performance, ensuring high-speed, secure, and scalable communication within automation systems.
Key Features
-
Ethernet TCP/IP Protocol Support – Supports high-speed communication over standard Ethernet networks
-
Seamless Integration – Easily integrates with Modicon PLCs and other devices on Ethernet networks
-
Flexible Network Topology – Can be used in star, ring, or daisy-chain network configurations
-
Hot-Swappable Design – Facilitates quick replacement without the need for system shutdown
-
Diagnostic LEDs – Provides visual status indicators for network activity, connection status, and module health
-
Security Features – Supports secure communication through robust networking protocols
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.345 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Power | Supplied via Modicon backplane |
| Power Consumption | Approx. 2 W |
| Communication Ports | 1 x Ethernet port (RJ45) |
| Supported Protocols | TCP/IP, UDP/IP, HTTP, Modbus TCP |
| Isolation | Optical isolation from system bus |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Modicon PLCs (Quantum, Premium, M340) |
| Mounting | Modicon backplane slot |
| Configuration Tools | Unity Pro, Concept, and other Schneider tools |
| Redundancy Support | No – Single module operation |
Industry Applications
-
Manufacturing Automation – Provides high-speed communication between PLCs and HMIs in manufacturing lines
-
Oil & Gas – Supports secure data exchange for process control and monitoring
-
Chemical Processing – Facilitates communication across safety systems and control devices
-
Power Distribution – Connects protection relays and substation control systems via Ethernet networks
-
Building Automation – Enables integration of HVAC, lighting, and security systems through Ethernet protocols
The Schneider 140NOE77100 Ethernet TCP/IP Module is an essential component for industrial Ethernet networks, ensuring efficient, secure, and high-performance communication. It simplifies system integration while supporting a wide range of applications across various industries.
Schneider 140NOE77100 Ethernet TCP/IP Module is in stock. Please contact us for a quick quote and competitive pricing.
