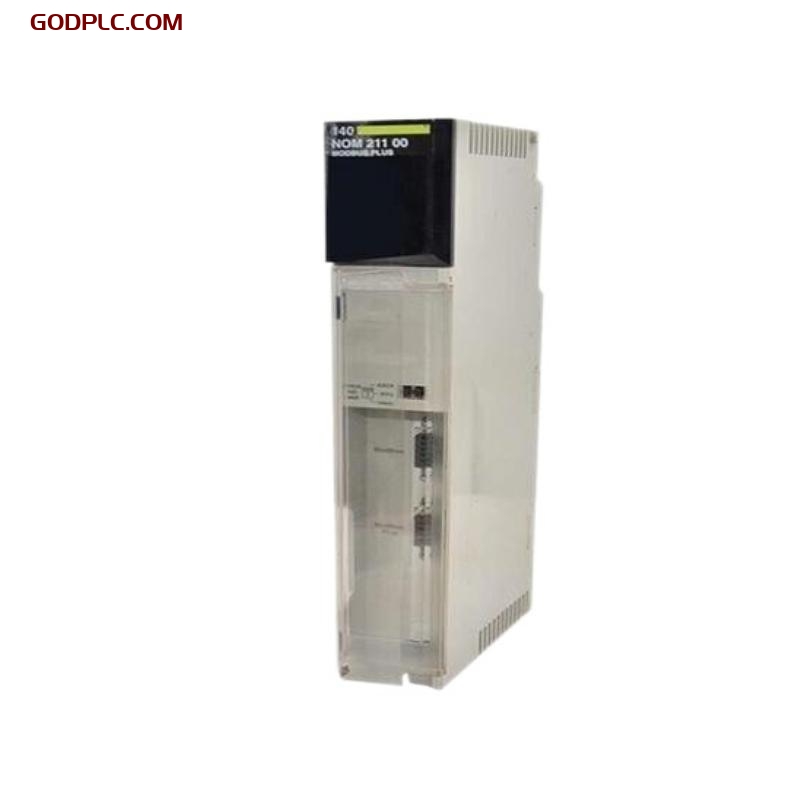

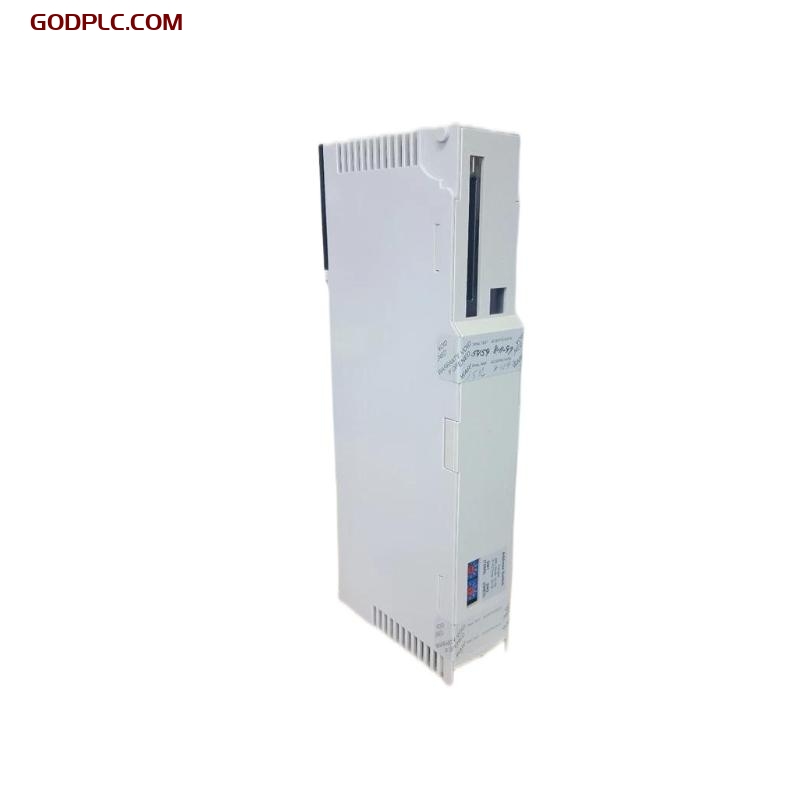

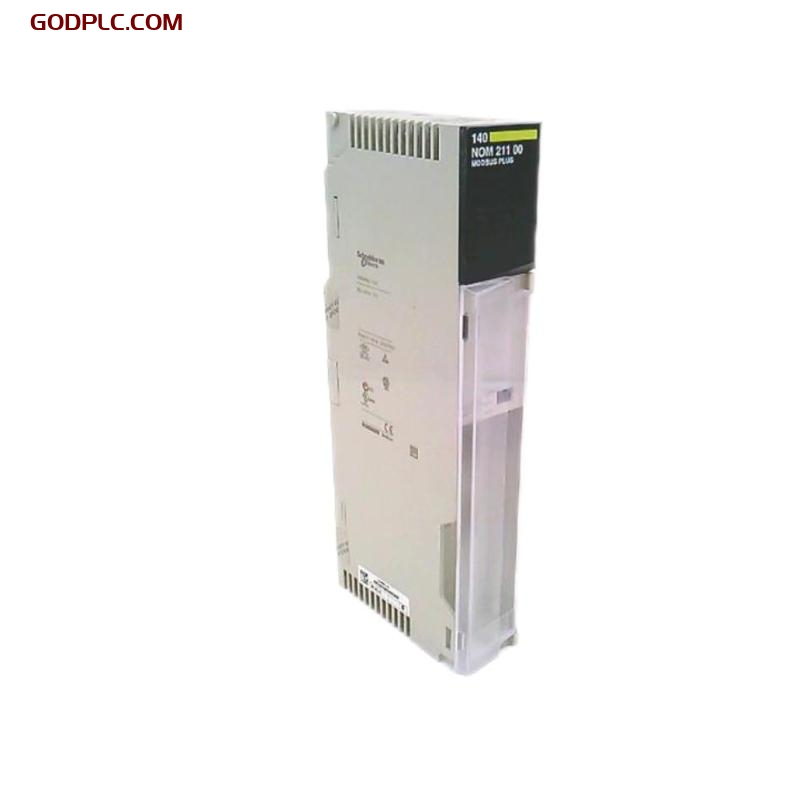

Schneider 140NOM21100 DIO Headend Adapter
__________________________________________________________________________________________
Product Overview
The Schneider 140NOM21100 DIO Headend Adapter is a communication module designed to integrate Discrete Input/Output (DIO) devices into a Modicon Quantum automation platform. Acting as an interface between field I/O signals and the control system, this headend adapter facilitates seamless data exchange and system expansion, particularly in distributed control environments. It is engineered for high-speed communication, efficient installation, and long-term reliability.
Key Features
-
Field Device Integration: Interfaces with a range of discrete devices, providing reliable data acquisition and control.
-
High-Speed Communication: Supports fast and efficient transmission of I/O signals to the Quantum controller.
-
DIN Rail Mounting: Enables simple and space-efficient installation in industrial enclosures.
-
Rugged Design: Built to endure harsh industrial conditions, ensuring dependable operation.
-
System Compatibility: Seamlessly integrates with Schneider Modicon Quantum systems.
-
Diagnostics and Monitoring: Provides built-in diagnostics for easy system troubleshooting and status checks.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.482 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | 140NOM21100 |
| Module Type | DIO Headend Adapter Module |
| Mounting | DIN Rail or Panel Mount |
| Communication | Quantum Bus |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 5 VDC (supplied via Quantum backplane) |
| Power Consumption | Approx. 2.5 W |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Modicon Quantum PLC Systems |
| Supported Networks | Quantum I/O Bus |
| Configuration Software | Unity Pro, EcoStruxure Control Expert |
Industry Applications
-
Factory Automation: Integrates discrete devices like sensors and switches into plant control systems.
-
Material Handling: Facilitates real-time I/O control in conveyor systems and robotic operations.
-
Process Industries: Supports control of discrete processes in oil & gas, chemicals, and water treatment.
-
Packaging Equipment: Ensures responsive control of high-speed packaging machinery.
-
Automotive Manufacturing: Connects to end-of-line testing and component assembly controls.
The Schneider 140NOM21100 DIO Headend Adapter provides a robust and flexible solution for connecting discrete I/O modules to Schneider’s Modicon Quantum systems. Its reliable performance and compact form factor make it ideal for demanding industrial environments requiring accurate and fast control integration.
Schneider 140NOM21100 DIO Headend Adapter is in stock. Please contact us for a quick quote and competitive pricing.
