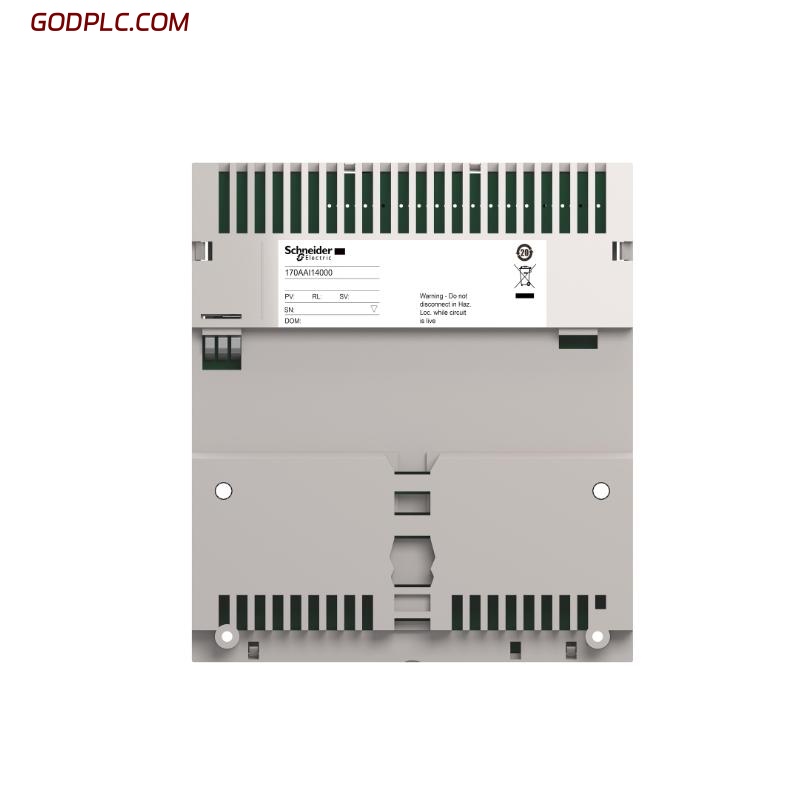

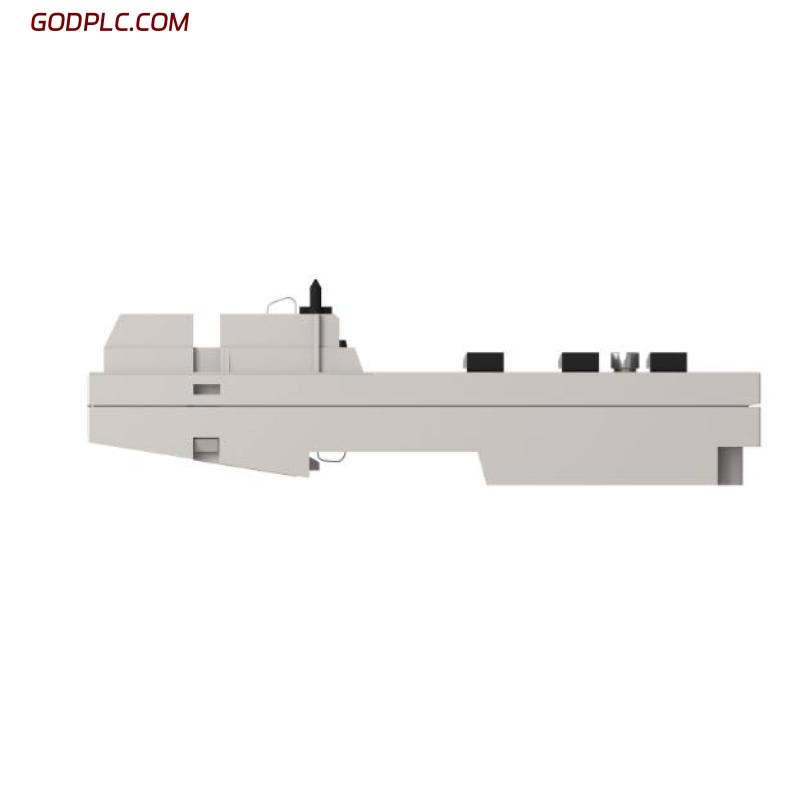

Schneider 170AAI14000 Distributed Analog Input Base
Product Overview
The Schneider 170AAI14000 is a high-density distributed analog input base module from the Momentum series, offering 16 analog input channels for comprehensive signal acquisition. Designed to handle voltage and current inputs, this module is ideal for capturing data from a wide variety of field instruments. Its compact design and seamless integration with Momentum I/O platforms make it a reliable solution for applications in process control, energy management, and industrial automation.
Key Features
-
16 analog input channels for efficient data collection
-
Supports voltage (0–10 V) and current (0–20 mA) signal types
-
12-bit resolution ensures high-accuracy measurements
-
Designed for use with Schneider Momentum distributed I/O systems
-
DIN rail mountable, space-saving form factor
-
Channel isolation for enhanced signal integrity
-
Configurable using Schneider programming tools
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 47.5 × 125 × 141.5 mm |
| Weight | 0.215 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Inputs | 16 analog inputs |
| Input Signal Types | 0–10 V DC or 0–20 mA |
| Resolution | 12-bit |
| Input Impedance | 10 kΩ (voltage), 250 Ω (current) |
| Accuracy | ±0.5% of full scale |
| Conversion Time | <5 ms per channel |
| Isolation | Channel-to-bus: 500 V AC |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection | Conformal-coated PCB |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Platform | Schneider Momentum I/O Base and CPUs |
| Configuration Tool | Concept, ProWORX, or Unity software |
| Communication Bus | Momentum I/O bus |
| Application Type | Distributed analog input acquisition |
Industry Applications
-
Oil & Gas – Field sensor acquisition in distributed control systems
-
Power & Utilities – Monitoring analog signals in substations and turbines
-
Manufacturing – Scalable integration of sensor feedback across production lines
-
Water Treatment – Precise input collection from flow, pressure, and level sensors
-
Pharmaceuticals – Monitoring and logging analog data in regulated environments
The Schneider 170AAI14000 Distributed Analog Input Base offers scalable, high-density analog signal acquisition with proven reliability and compatibility. It is an ideal choice for decentralized monitoring and control across a broad range of industrial sectors.
Schneider 170AAI14000 Distributed Analog Input Base is in stock. Please contact us for a quick quote and competitive pricing.
